Product Parameters
4 COLORS 3.5 Inch 384*184 B/W/R/Y Epaper Display Panel I2C 24Pin Eink Screen Module Electronic Shelf Label Price Tag Nameplate
| Display Type | ePaper Display |
| Model No. | TT350EDP04A |
| Display Size | 3.5 inch |
| Display Color | Black+White+Red+Yellow |
| Resolution | 184*384 |
| Driver IC | JD79667AA |
| Interface | SPI,I2C |
| Viewing Angle | >170° |
| Dot Pitch | 0.2075*0.2075mm |
| Outline Dimension | 45.03*91.75*1.0mm |
| Active Area | 38.18*79.68mm |
| FPC Connecting Method | 24 Pin Plug in FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | Welcomed |

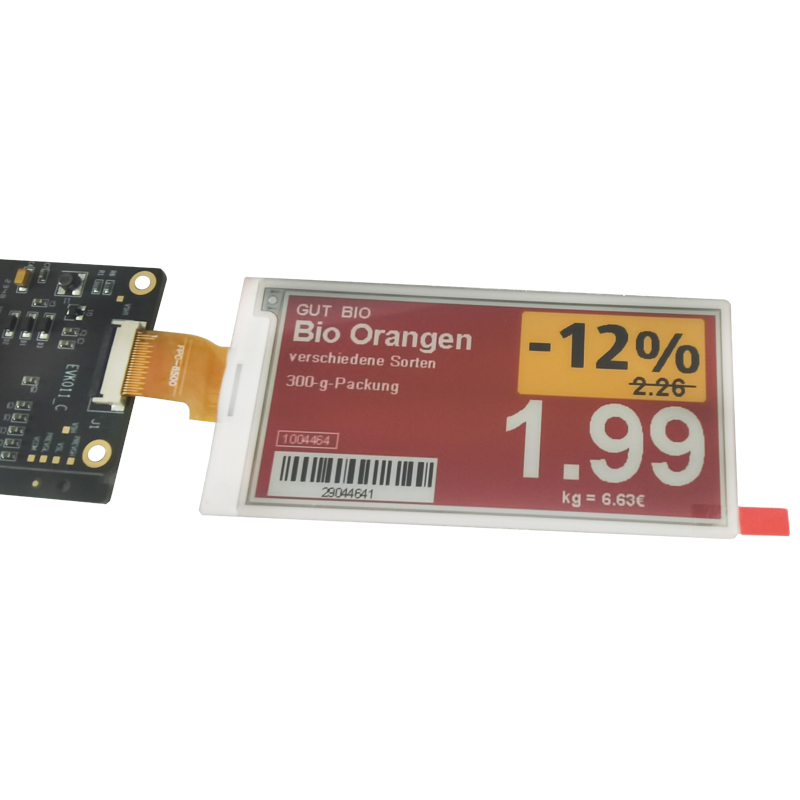

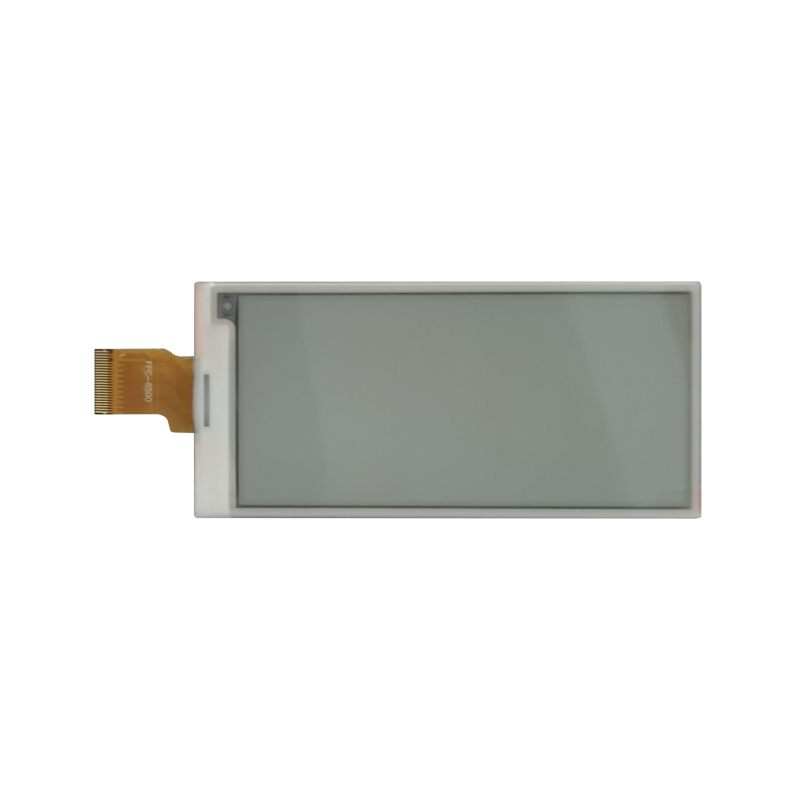

Product Pictures

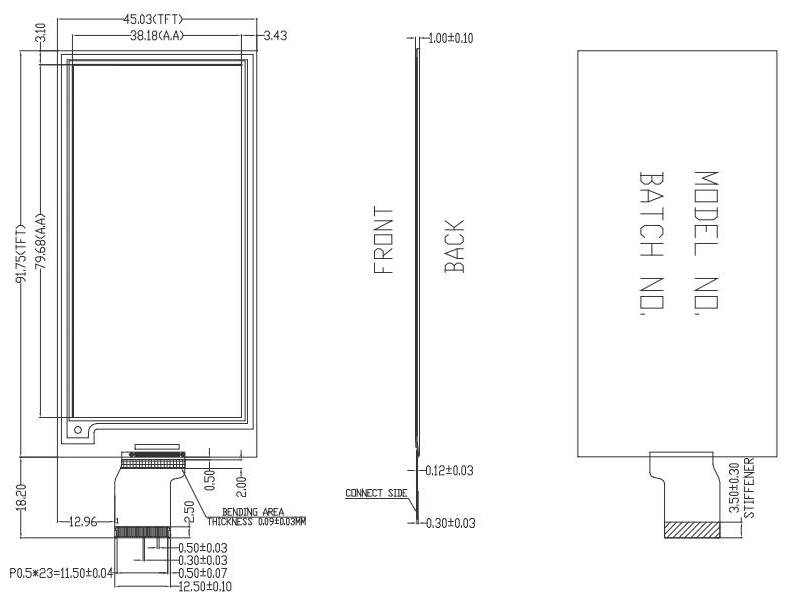

Drawing

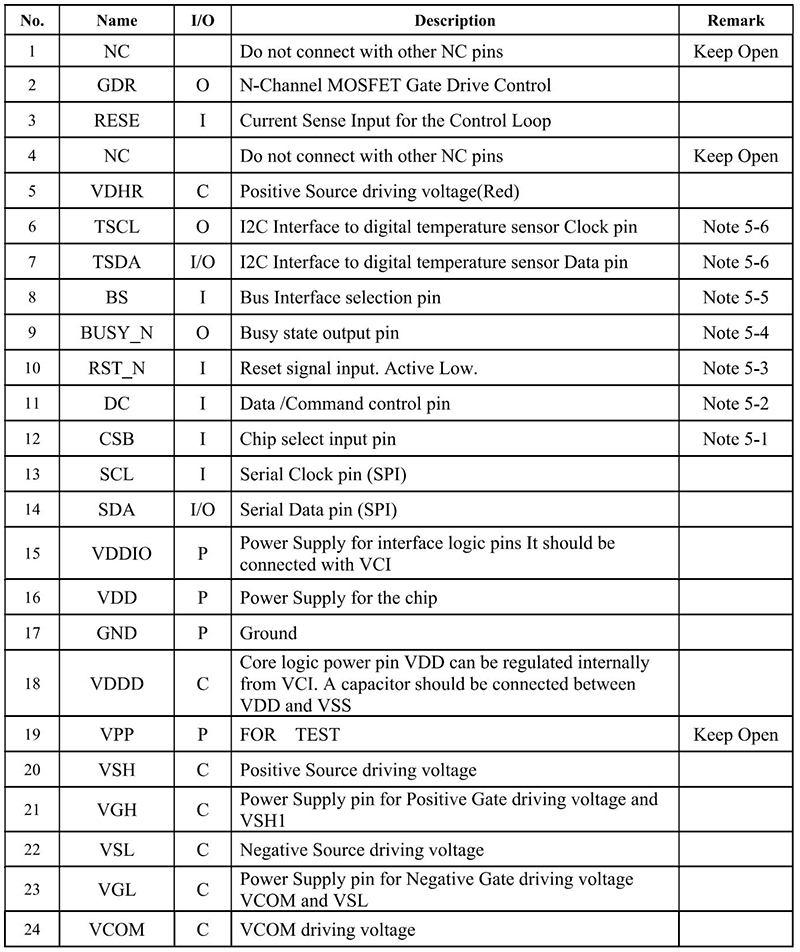

Pin Definition
Customization
