Product Parameters
Small Size 0.72 Inch 60*160 SPI Bar TFT LCD Module Screen 0.72inch GC9D01 Stripe 8Pin 13Pin LCD Display Custom CTP Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT072TFN08A(8Pin Plug in FPC) TT072TFN13A(13Pin Soldering FPC) |
| Display Size | 0.72 inch |
| Resolution | 60*160 |
| Driver IC | GC9D01 |
| Interface | 4-SPI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 350cd/m2 |
| Outline Dimension | 8.52*21.695*1.47mm |
| Active Area | 6.41*17.09mm |
| FPC Connecting Method | 18Pin plug in / 13Pin soldering FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

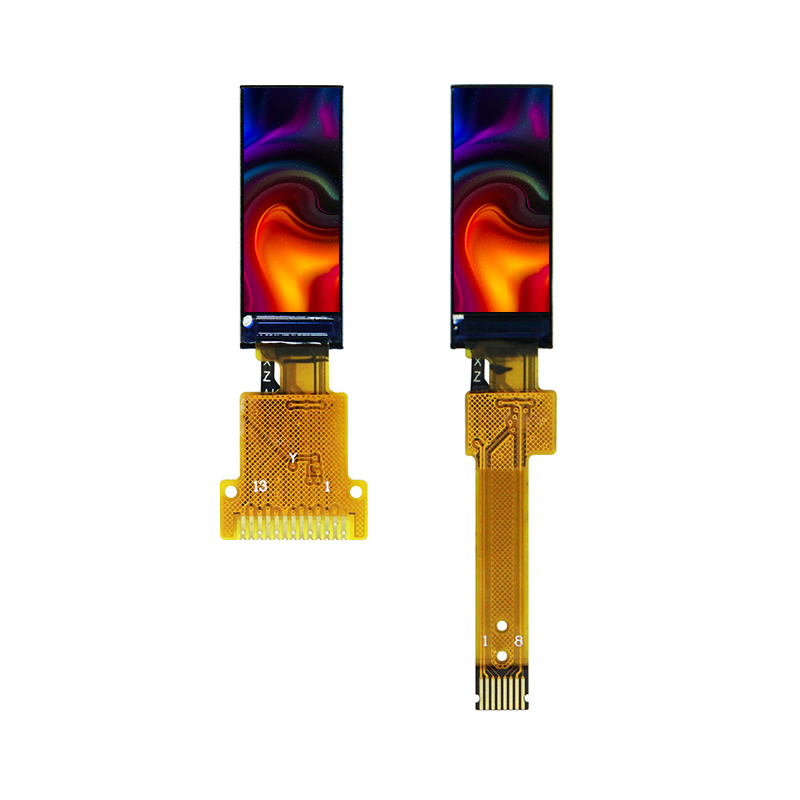

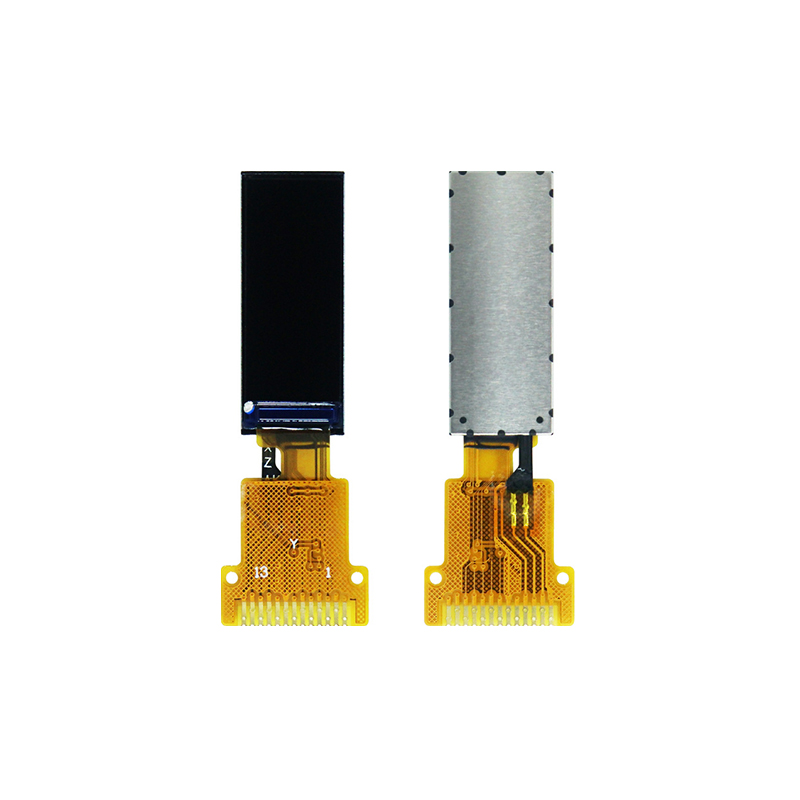

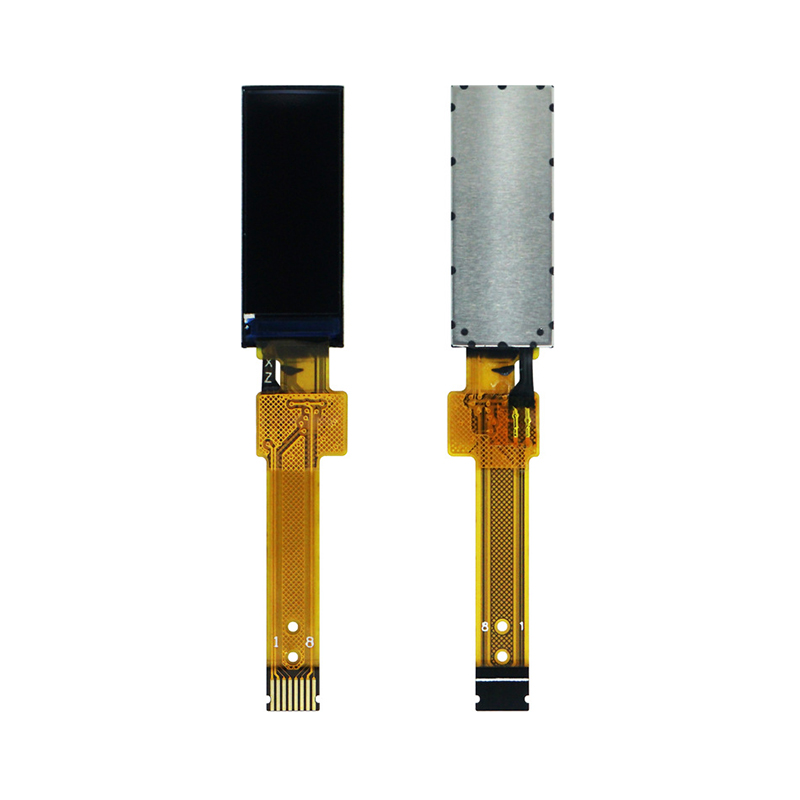

Product Pictures

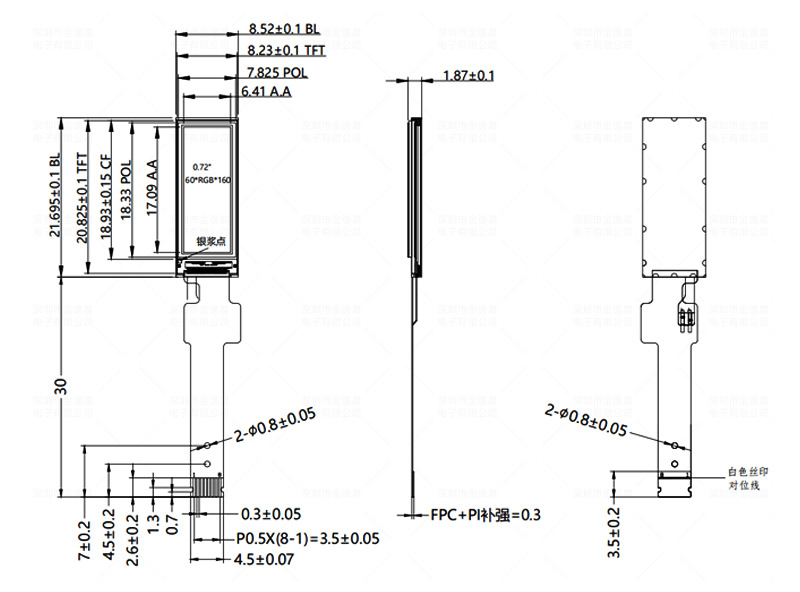

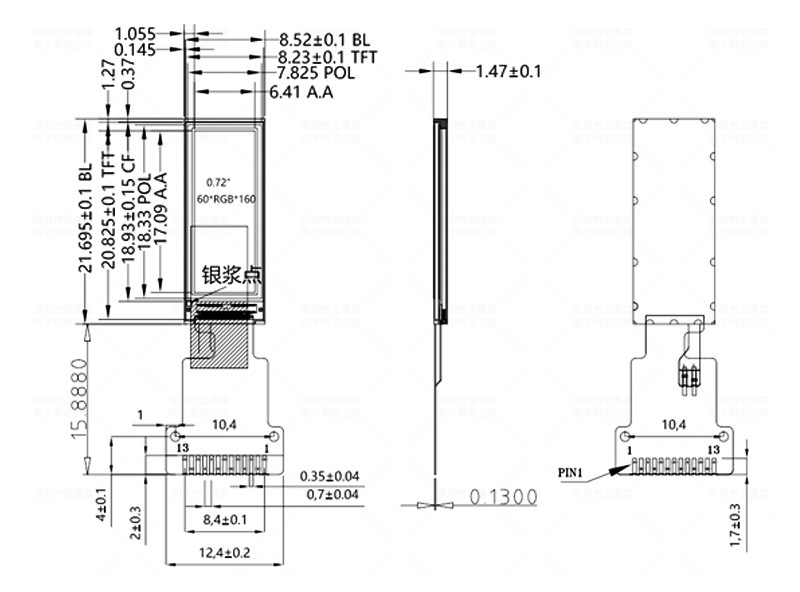

Drawing

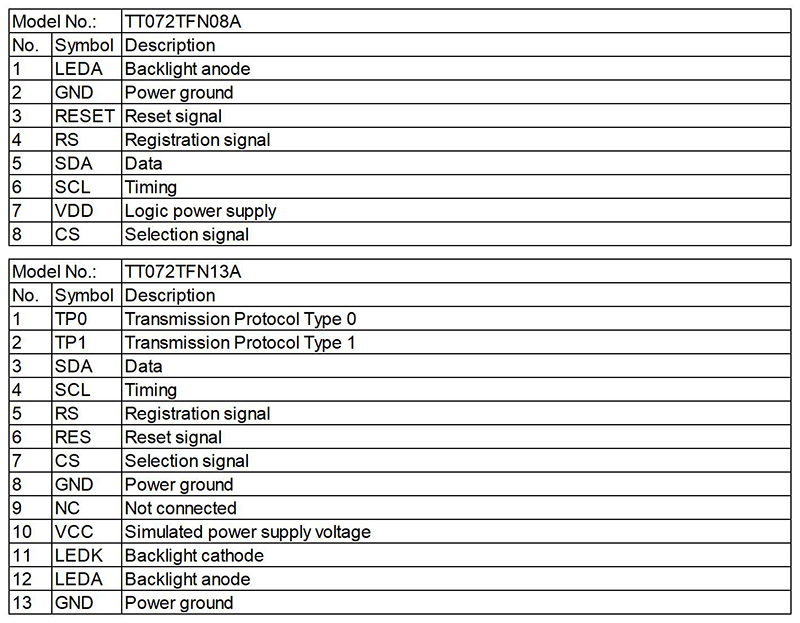

Pin Description
Customization
