Product Parameters
7.8 inch 768*1024 Vertical MIPI 30Pin Color Reflective TFT LCD Display Module for Handheld Device POS Tablet LCD Screen Panel
| Display Type | Reflective LCD Display |
| Model No. | TT780FSN02A |
| Display Size | 7.8 inch |
| Resolution | 768*1024 |
| Driver IC | ILI9881C-05 |
| Interface | MIPI |
| Viewing Angle | IPS |
| Outline Dimension | 123.026(H)*165.215(V)*0.5(T)mm |
| Active Area | 118.886(H)*158.515(V)mm |
| FPC Connector | 30 Pin Plug in FPC |
| Touch Panel | Without touch,support customization |
| Testing Board | Optional |
| Front LED | Without front LED,support customization |
| Datasheet & Initial Code | Please contact service |
| Customization | Support |

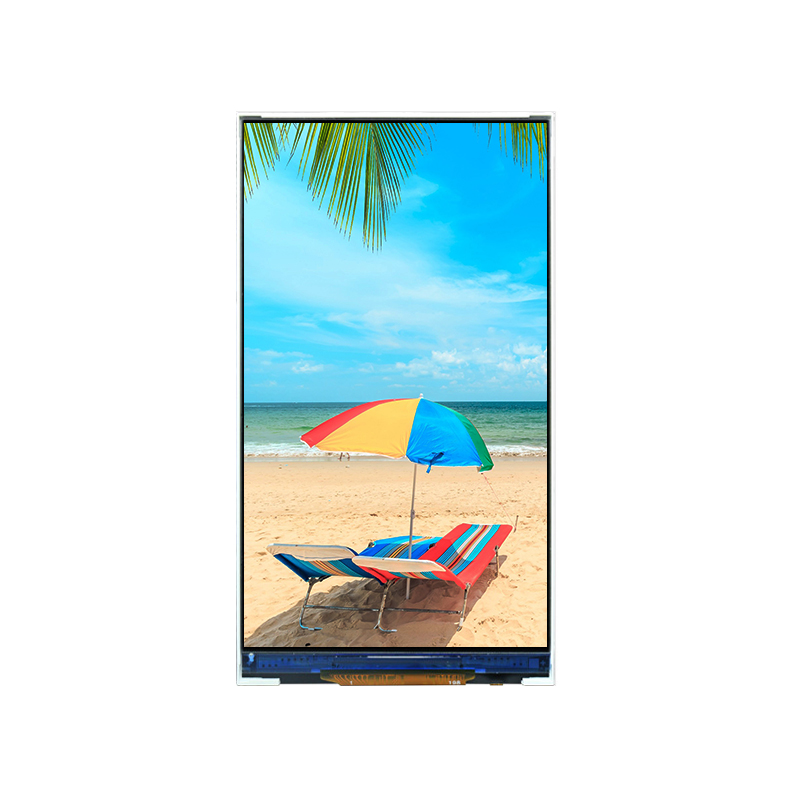

Product Pictures
Drawing
Pin Description
Customization
