FACTORY Custom 3 Inch 170*560 Bar SPI TFT LCD Module 3.02inch 24Pin Stripe IPS LCD Screen Display LCM Touch Panel AXS15231B


Display TypeTFT LCD Display
Model No.TT302TFC25B
Display Size3.02 inch
Resolution
170*560
InterfaceSPI 4 Lines
Viewing AngleIPS Full Viewing Angle
Driver ICAXS15231B
Luminance450cd/m2
Outline Dimension24.63*78.41*1.54mm
Active Area22.134*72.912mm

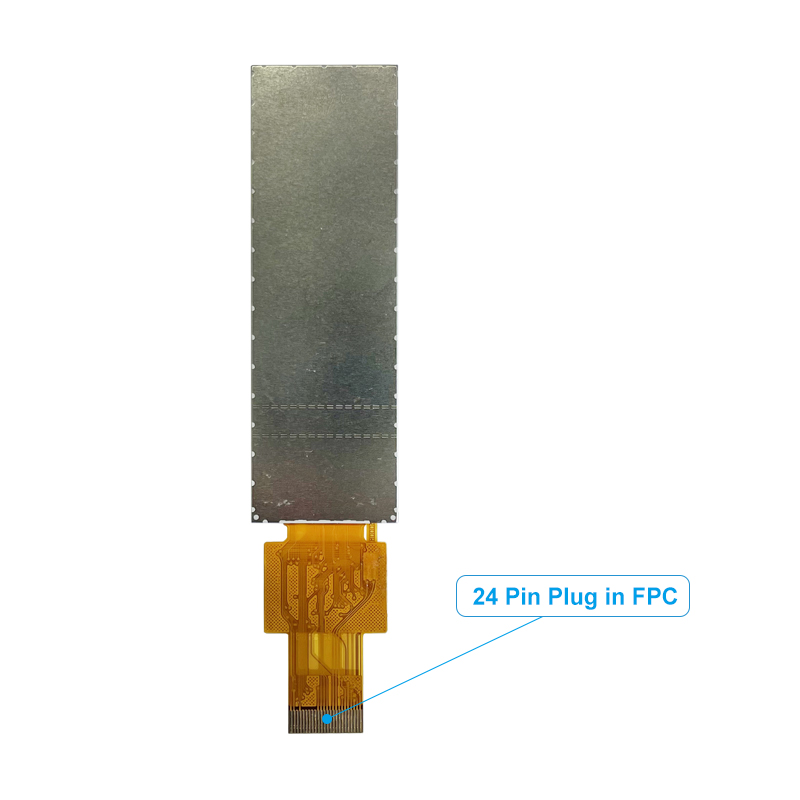

FPC Connecting Method24 Pin plug in FPC
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service

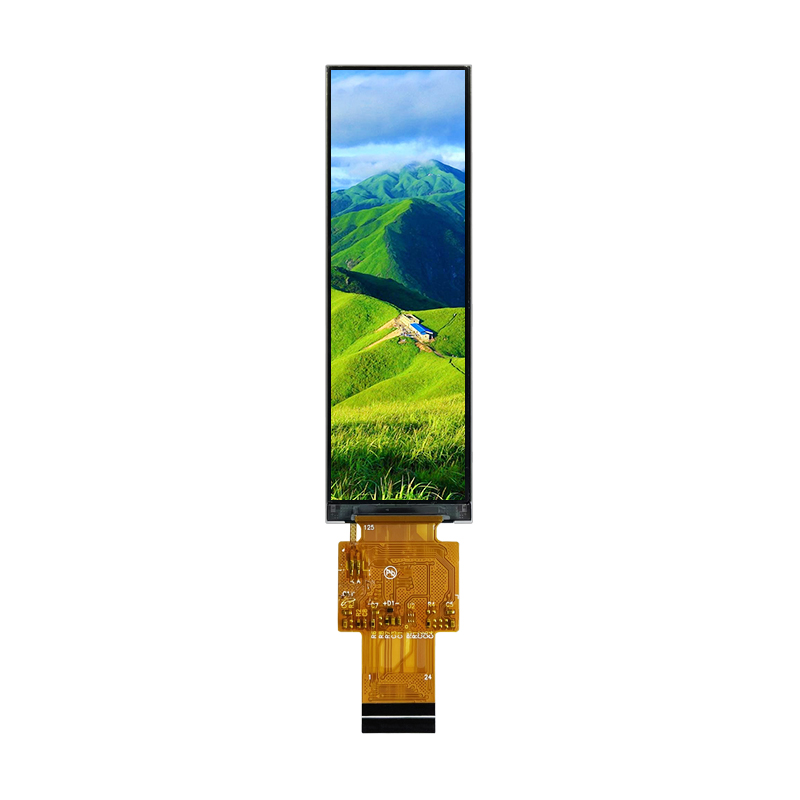

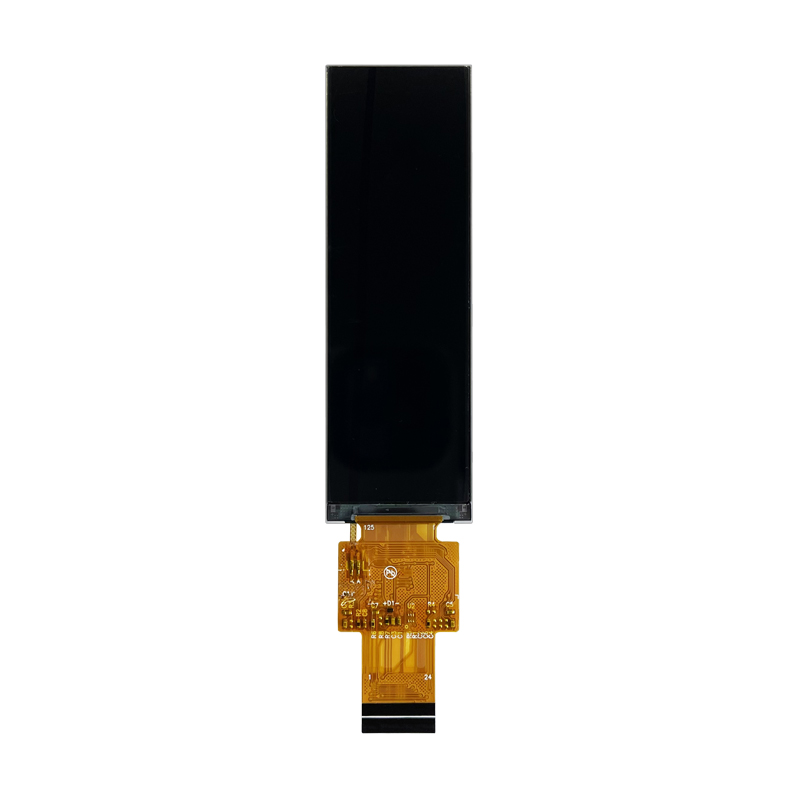

Product Pictures

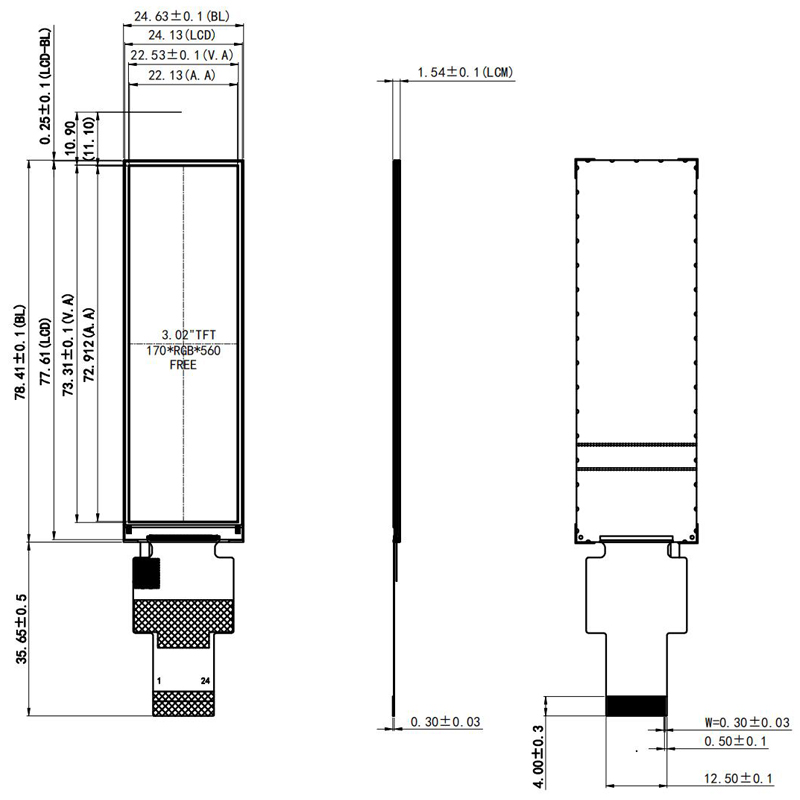

Drawing

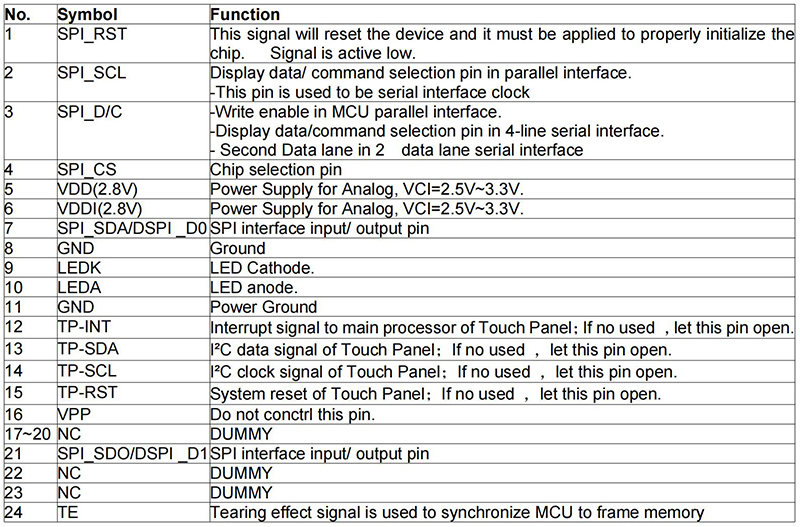

Pin Description





Customization





Product Parameters



FACTORY Custom 3 Inch 170*560 Bar SPI TFT LCD Module 3.02inch 24Pin Stripe IPS LCD Screen Display LCM Touch Panel AXS15231B


Display TypeTFT LCD Display
Model No.TT302TFC25B
Display Size3.02 inch
Resolution
170*560
InterfaceSPI 4 Lines
Viewing AngleIPS Full Viewing Angle
Driver ICAXS15231B
Luminance450cd/m2
Outline Dimension24.63*78.41*1.54mm
Active Area22.134*72.912mm
FPC Connecting Method24 Pin plug in FPC
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service


Product Pictures




Drawing





Pin Description





Customization
