Product Parameters
3.5 Inch 480*480 RGB Round TFT LCD Display Module 3.49 Inch 45Pin ST7701S Circular LCD Screen Factory Customize CTP Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT349TFN45A |
| Display Size | 3.49 inch |
| Resolution | 480*480 |
| Interface | RGB |
| Viewing Angle | IPS full viewing angle |
| Driver IC | ST7701S |
| Luminance | 400cd/m2 |
| Outline Dimension | 69.19*71.74*2.45mm |
| Active Area | 62.64*62.64mm |
| FPC Connecting Method | 45Pin Plug in FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

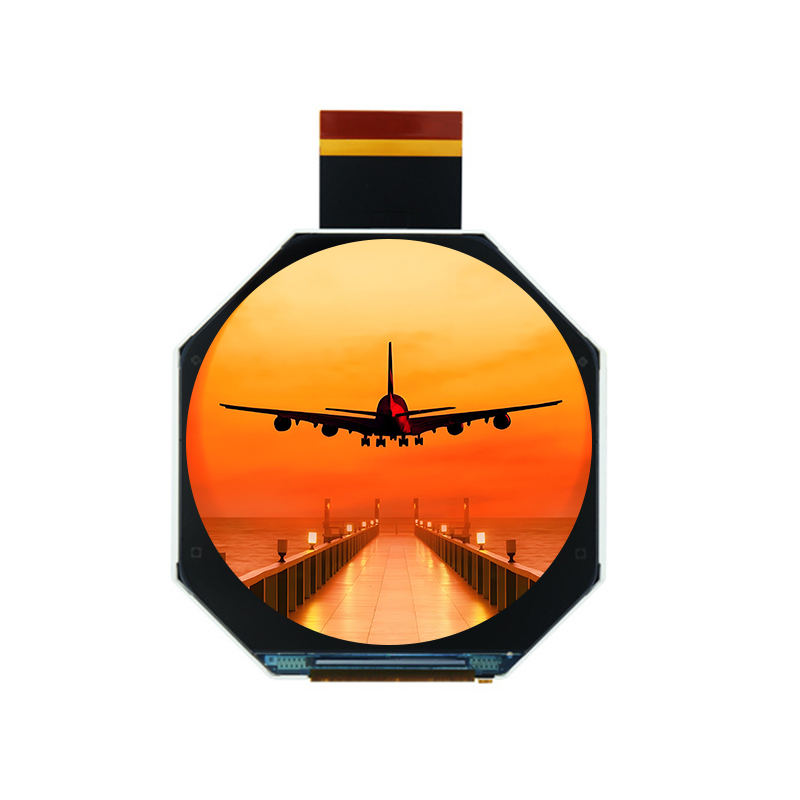

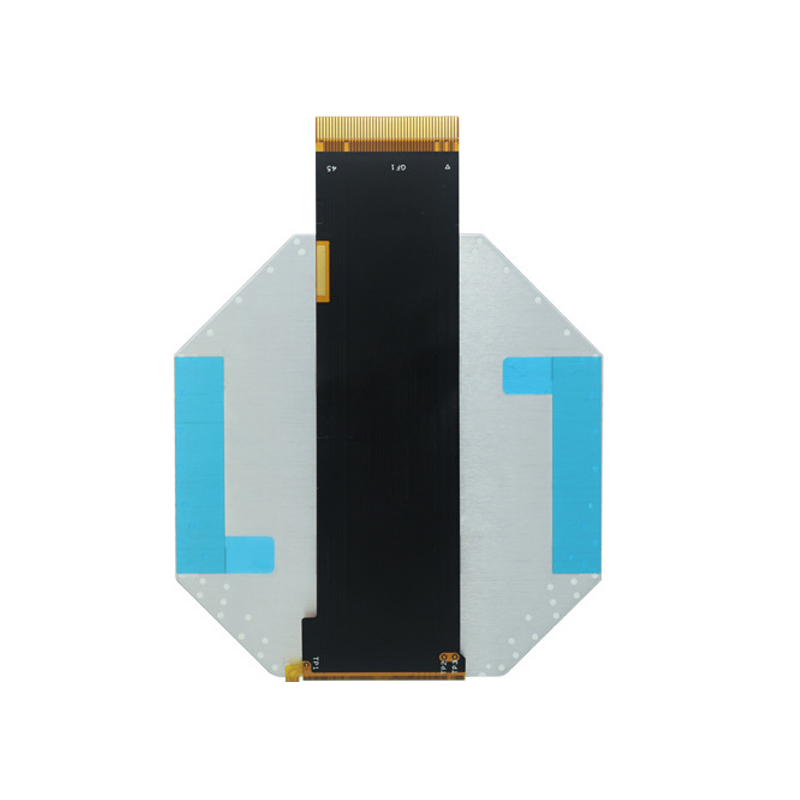

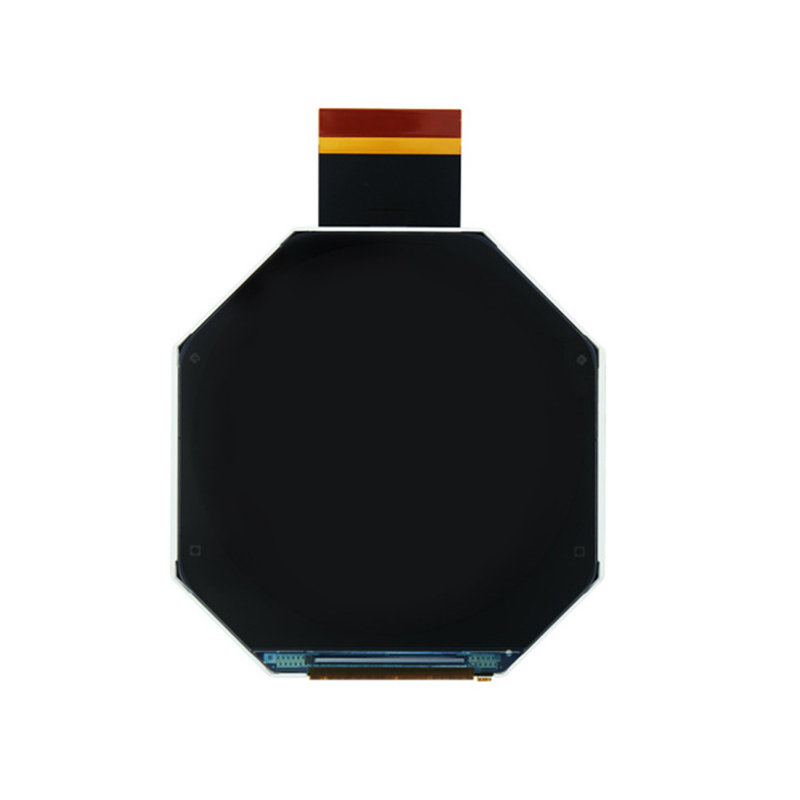

Product Pictures

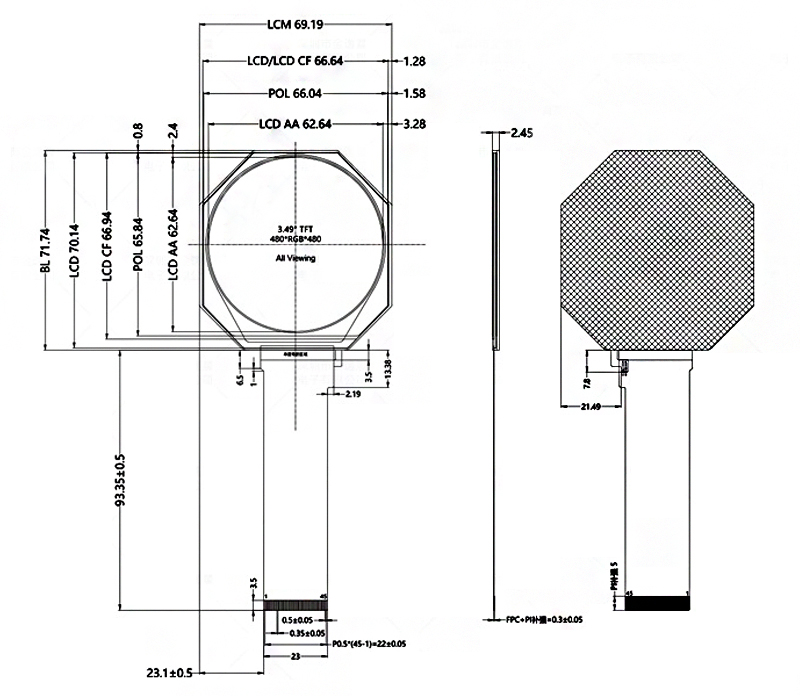

Drawing

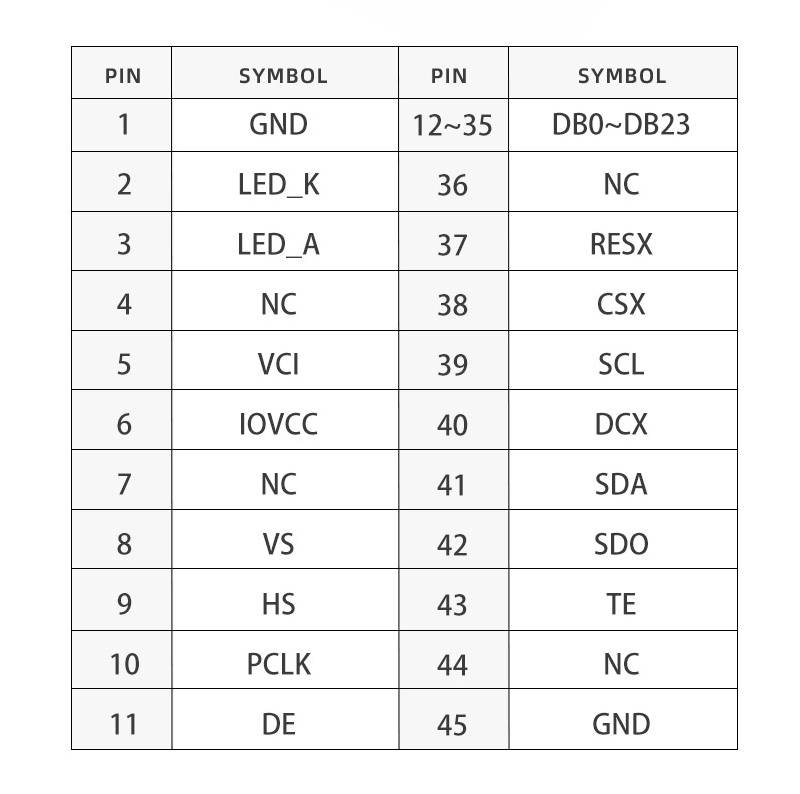

Pin Description
Customization
