PRODUCT DETAILS
Product Introduction
Product Parameters
1.54 inch 240*240 Square IPS TFT LCD Module Screen Display with Capacitive Touch Panel Customized CTP ST7789V SPI 12 Pin FT6236U
Model No.
TT154HSC14B
Size
1.54 inch
Resolution
240*240
Driver IC
ST7789V,FT6236U
Viewing Angle
IPS Full Viewing Angle
Interface
SPI
Luminance
280cd/m2
LCM Dimension
36.8mm(W)*40.6mm(H)*2.9mm(D)
Active Area
LCD: 27.72mm(W)*27.72mm(H)
CTP: 28.14mm(W)*18.14mm(H)
FPC Connecting Mode
LCM: 12 Pin Plug in FPC
CTP: 10 Pin Board to Board FPC
Touch Panel
With Capacitive Touch Panel,Support Customization
Testing Board
Optional
Datasheet & Initial Code
Please contact service
Product Pictures
Drawing
Pin Description
Customization
Product Parameters
1.54 inch 240*240 Square IPS TFT LCD Module Screen Display with Capacitive Touch Panel Customized CTP ST7789V SPI 12 Pin FT6236U
Model No.
TT154HSC14B
Size
1.54 inch
Resolution
240*240
Driver IC
ST7789V,FT6236U
Viewing Angle
IPS Full Viewing Angle
Interface
SPI
Luminance
280cd/m2
LCM Dimension
36.8mm(W)*40.6mm(H)*2.9mm(D)
Active Area
LCD: 27.72mm(W)*27.72mm(H)
CTP: 28.14mm(W)*18.14mm(H)
FPC Connecting Mode
LCM: 12 Pin Plug in FPC
CTP: 10 Pin Board to Board FPC
Touch Panel
With Capacitive Touch Panel,Support Customization
Testing Board
Optional
Datasheet & Initial Code
Please contact service
Product Pictures
Drawing
Pin Description
Customization
Related Products

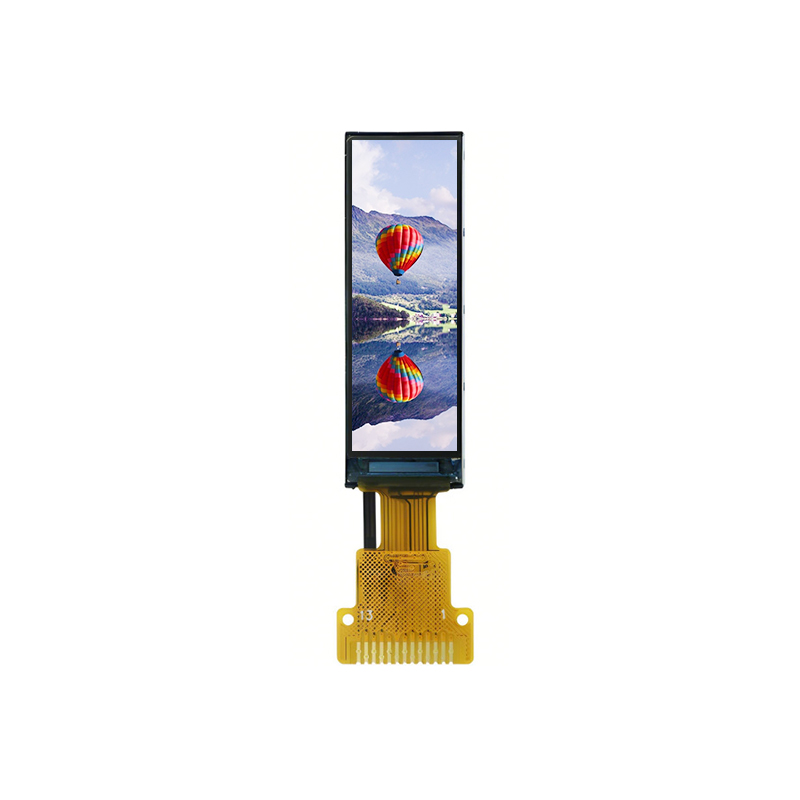

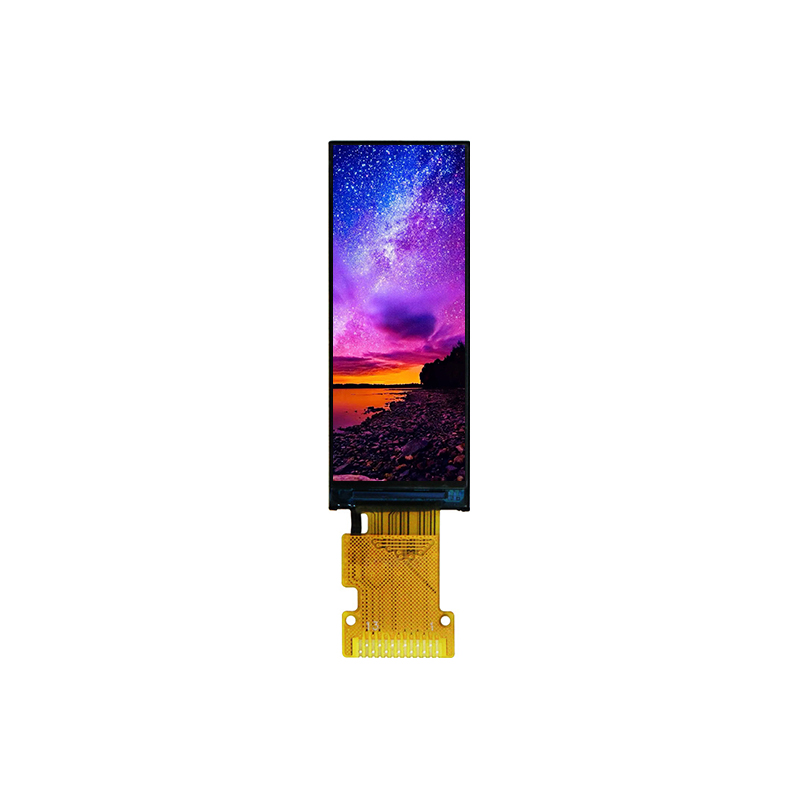

TT142TFN09A 1.42 inch 80*160 Small Size SPI Bar TFT LCD Module 1.4inch 8Pin Stripe LCD Screen Display Factory Custom Touch Panel
TT150TFN01A 1.5 inch 240*280 Small SPI Square TFT LCD Display Screen 1.5inch 12Pin LCD Module NV3030B Factory Custom Capacitive Touch Panel

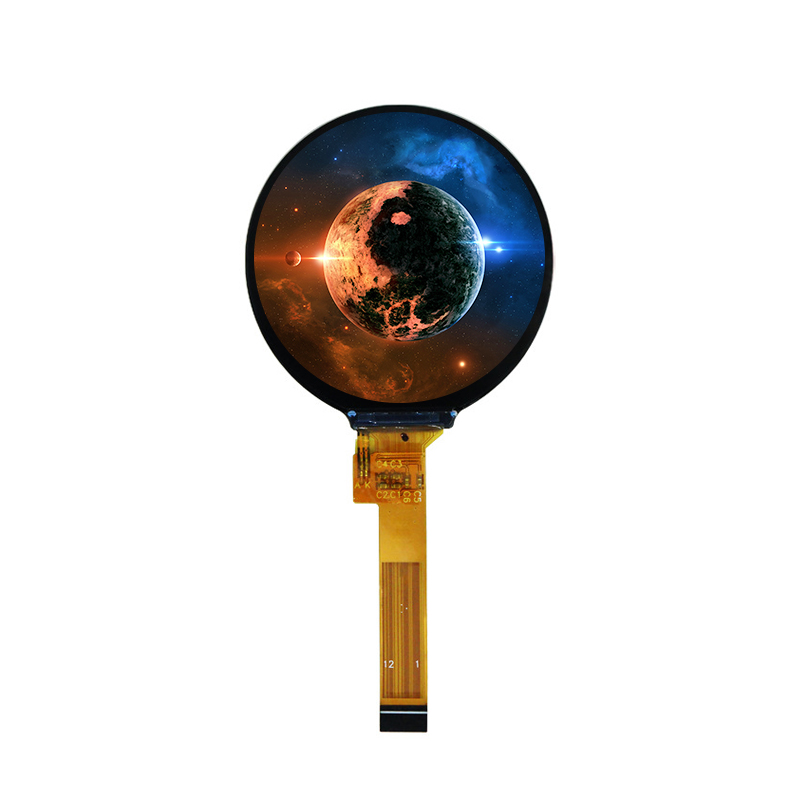

TT132TFN03A Circular 1.32 inch 360*360 MIPI Small Round TFT LCD Display Module for Smart Watch 12Pin GC9C01 Custom LCD Touch Screen Panel
TT180TFN31A 1.8 inch 360*360 MIPI Round TFT LCD Screen for Smart Watch Display 1.8inch 15Pin ST77916 Circular LCD Module Custom Touch Panel
TT145TFN20A Factory Offer 1.45 inch 412*412 QSPI Small Round TFT LCD Screen Display 1.45inch 24Pin Circular LCD Module Customize Touch Panel

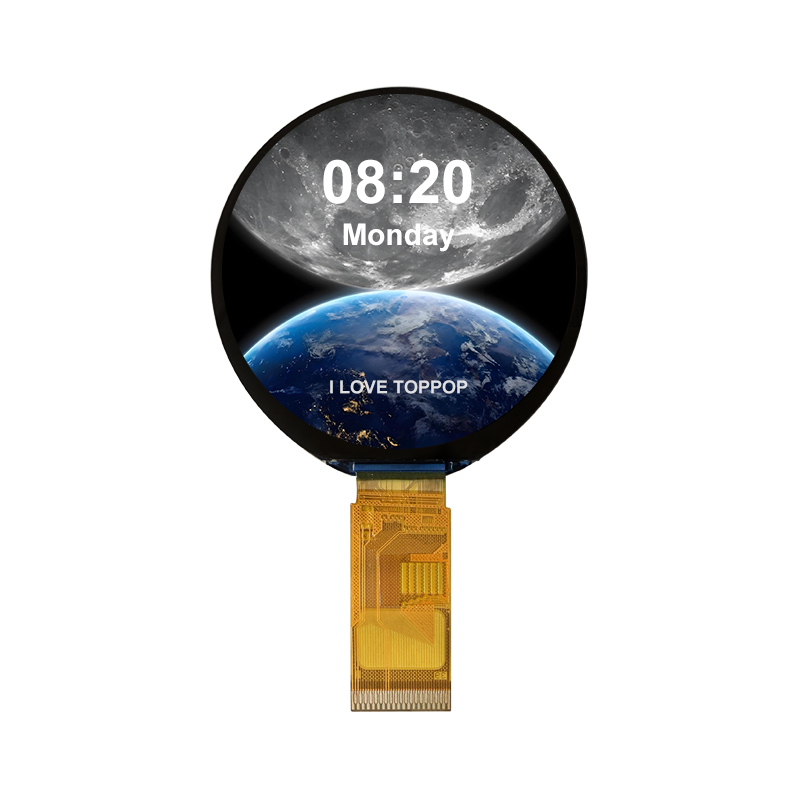

TT128RAN11A Round 1.28 inch 240*240 TFT LCD display SPI GC9A01 Circular Free Viewing Angle 1.28 inch LCD Module Panel For Smart Watch

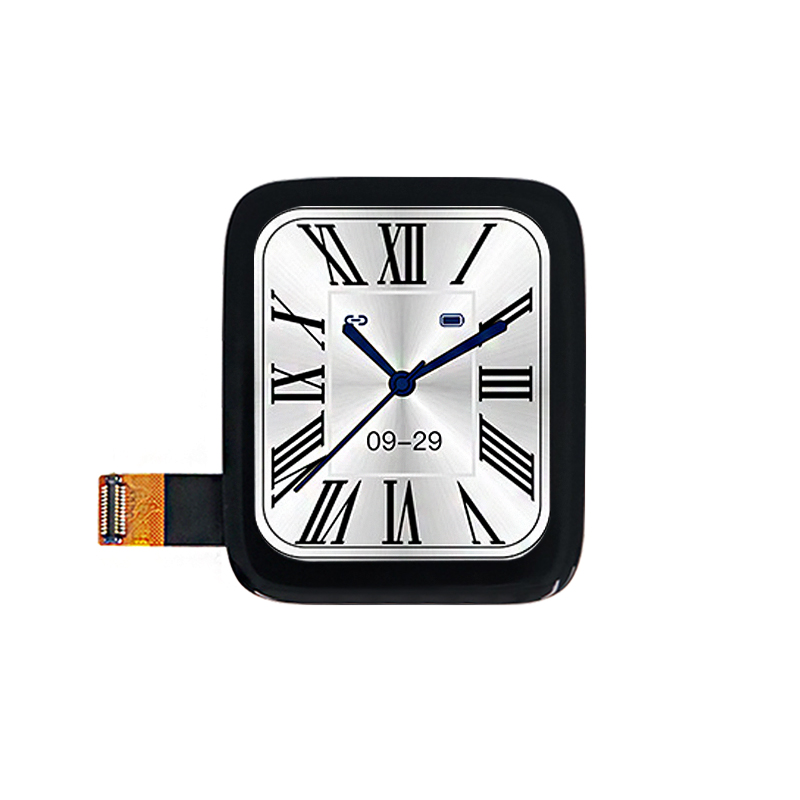

TT154TFN25A Factory Custom 1.54 inch 240*240 IPS SPI Small Square TFT LCD Screen 1.54inch Smart Watch LCD Module 15Pin ST7789 Touch Display

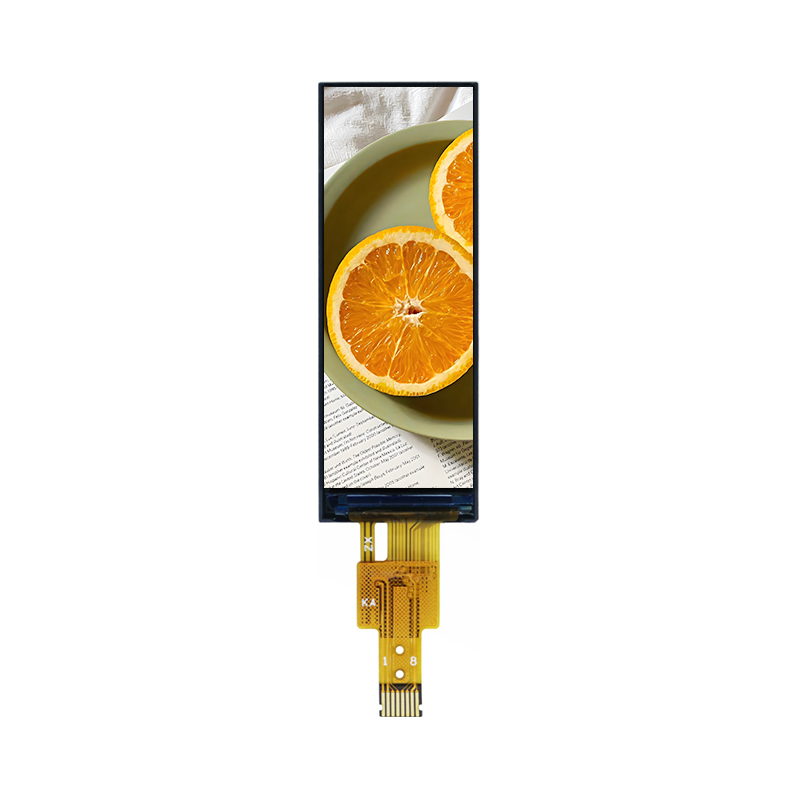

TT147TFN15A 1.47 inch 172*320 IPS SPI Small Bar TFT LCD Screen for Smart Bracelet 1.47inch ST7789 8Pin LCD Display Module Custom Touch Panel
