Product Parameters
1.8 Inch 360*360 Round TFT LCD Display 1.8inch MIPI QSPI MCU SPI SPI+RGB 39Pin ST77916 Circular LCD Module Custom Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT180TFN05A |
| Display Size | 1.8 inch |
| Resolution | 360*360 |
| Driver IC | ST77916 |
| Interface | MIPI/QSPI/8BIT MCU/SPI/SPI+RGB |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 300cd/m2 |
| Outline Dimension | 48.08(H)*49.95(V)*1.96(T)mm |
| Active Area | 45.68(H)*45.68(V)mm |
| FPC Connecting Method | 0.3mm Pitch 39 Pin Plug in FPC |
| Touch Panel | Without touch,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

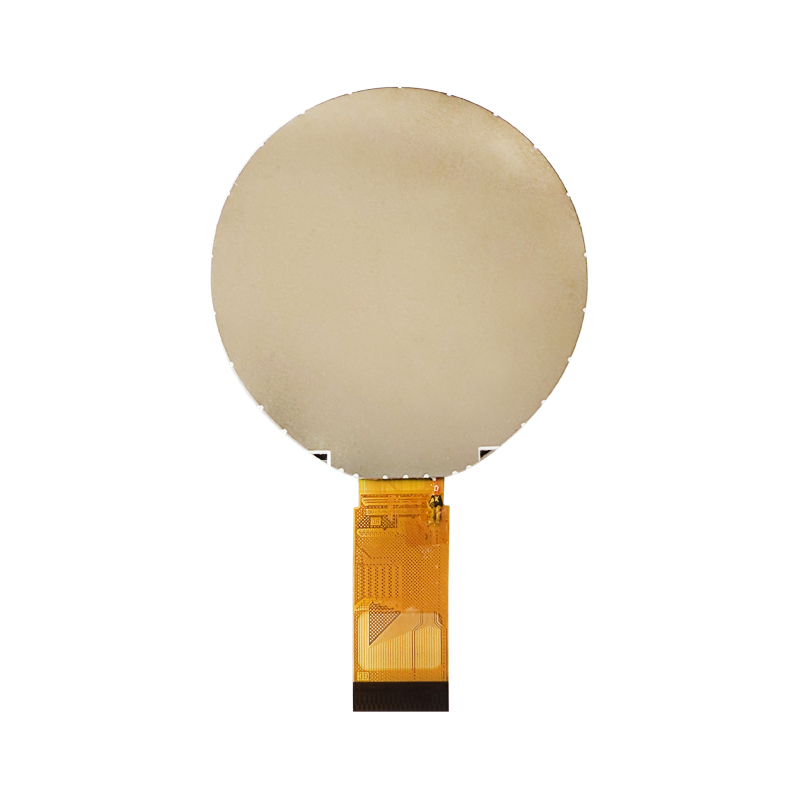

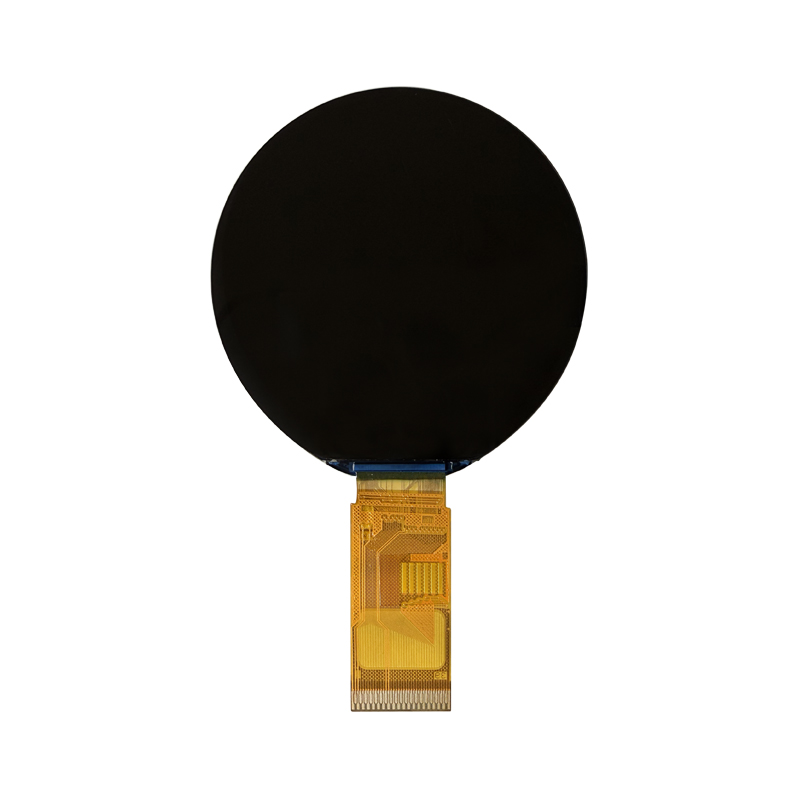

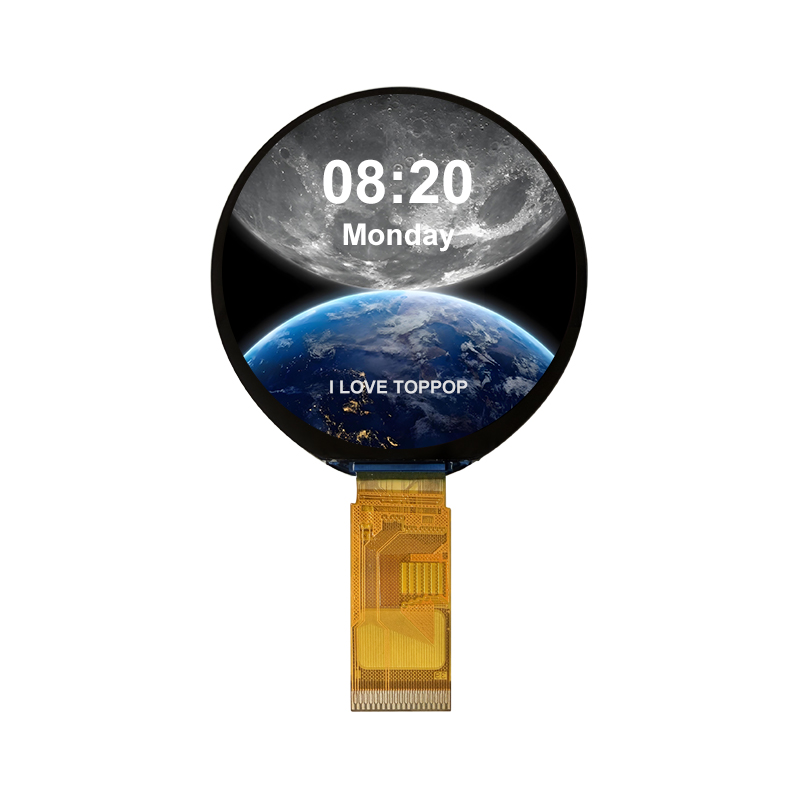

Product Pictures

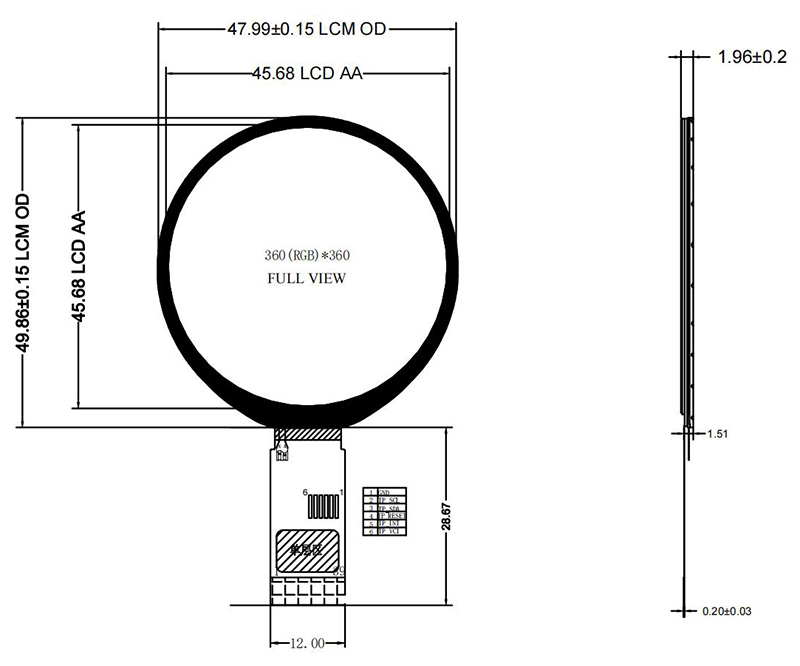

Drawing

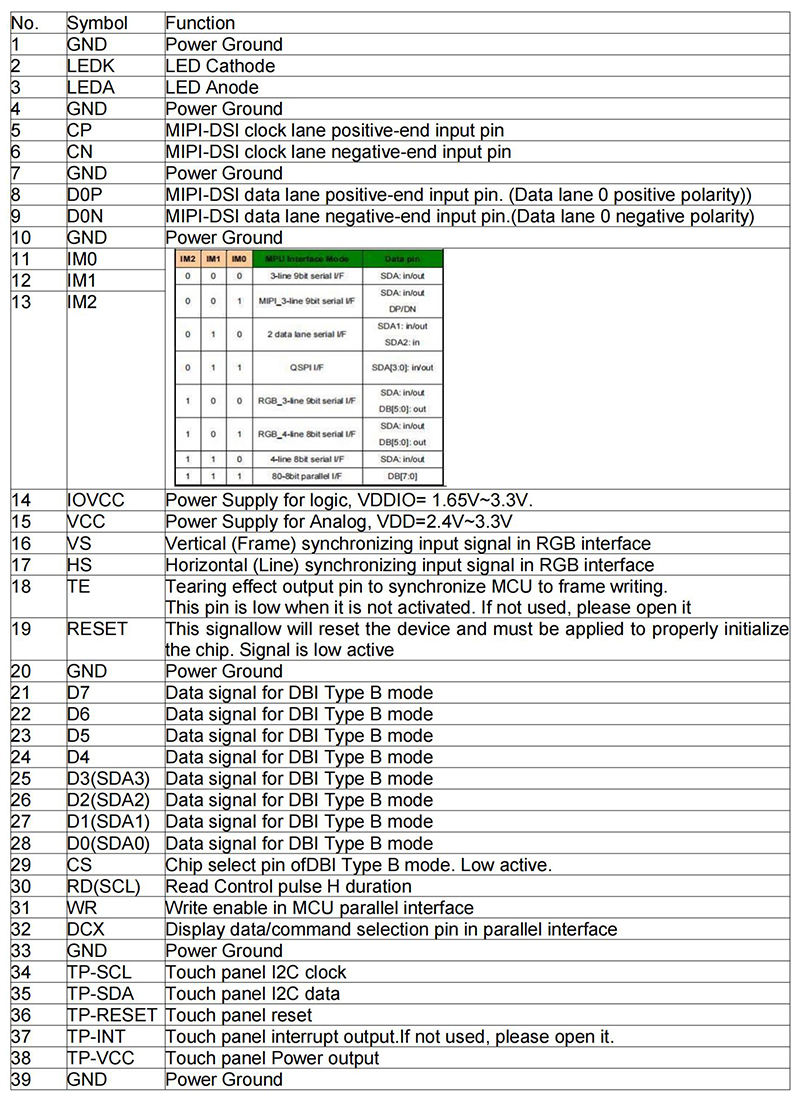

Pin Description
Customization
