Product Parameters
TT106TFN08A Small 1.06 Inch 96*160 SPI Bar TFT LCD Display Module 1.06inch 8Pin 13Pin ST7735 LCD TFT Screen Custom Touch Panel Touchscreen
| Display Type | TFT LCD Display |
| Model No. | TT106TFN08A(8Pin Plug in FPC) TT106TFN13A(13Pin Soldering FPC) |
| Display Size | 1.06 inch |
| Resolution | 90*160 |
| Driver IC | ST7735 |
| Interface | 4-SPI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 250cd/m2 |
| Outline Dimension | 16.12*29.76*1.69mm |
| Active Area | 13.824*23.04mm |
| FPC Connecting Method | 8Pin plug in / 13Pin soldering FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

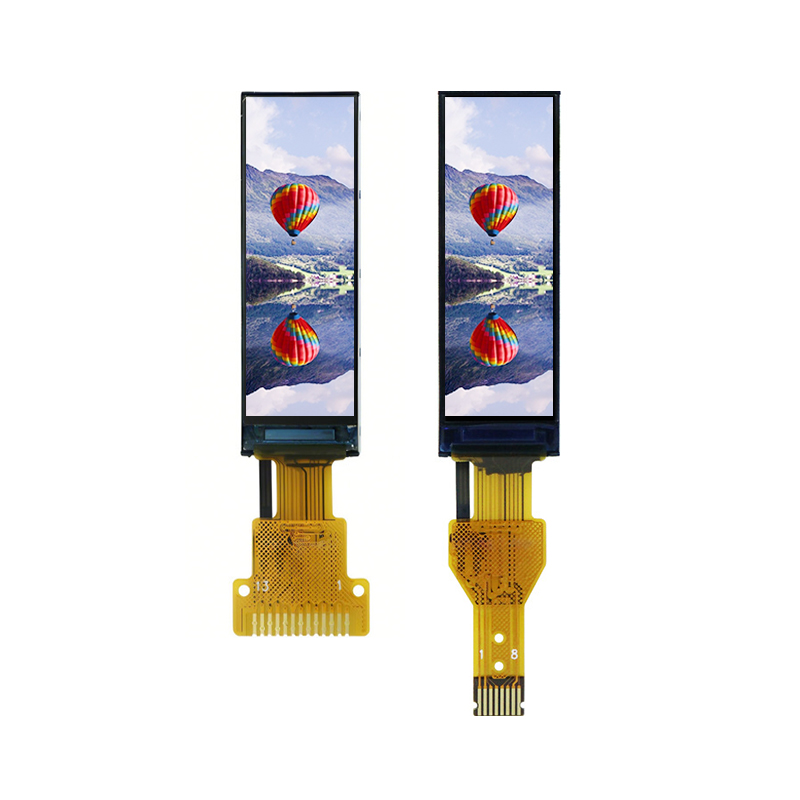

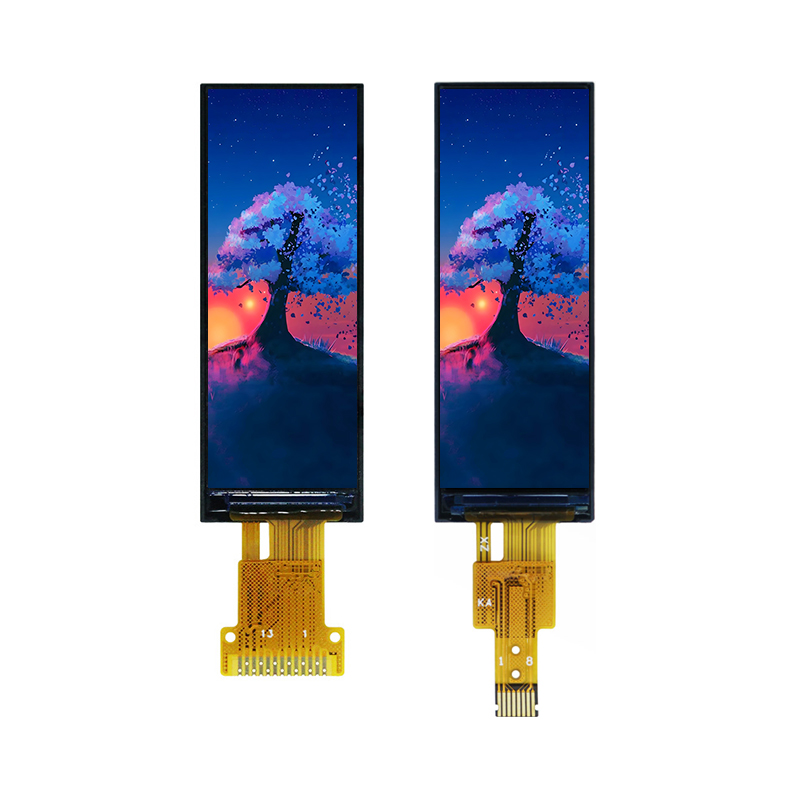

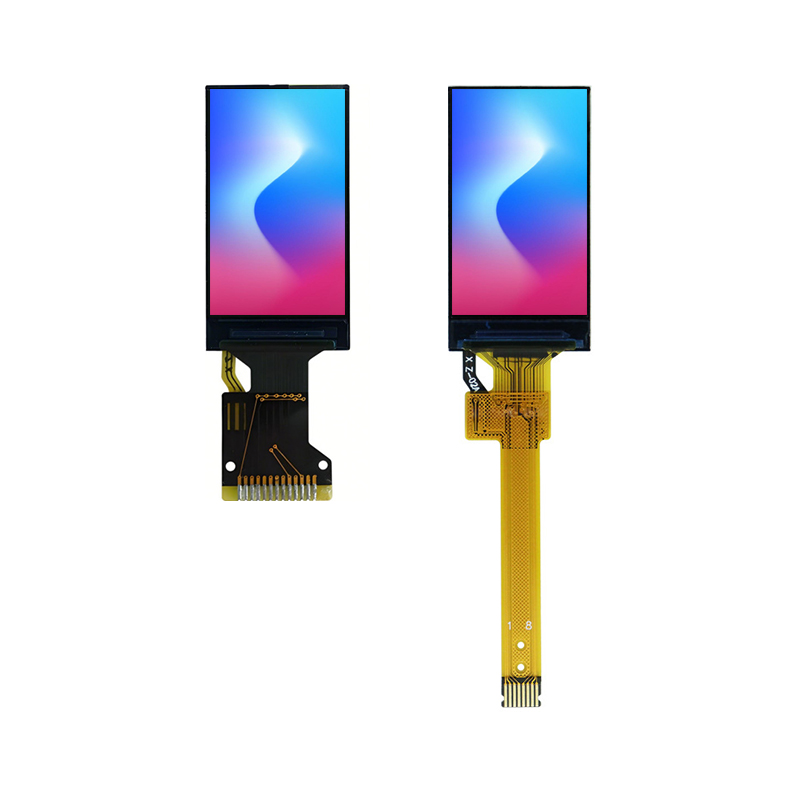

Product Pictures
Drawing
Pin Description
Customization
Product Parameters
TT106TFN08A Small 1.06 Inch 96*160 SPI Bar TFT LCD Display Module 1.06inch 8Pin 13Pin ST7735 LCD TFT Screen Custom Touch Panel Touchscreen
| Display Type | TFT LCD Display |
| Model No. | TT106TFN08A(8Pin Plug in FPC) TT106TFN13A(13Pin Soldering FPC) |
| Display Size | 1.06 inch |
| Resolution | 90*160 |
| Driver IC | ST7735 |
| Interface | 4-SPI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 250cd/m2 |
| Outline Dimension | 16.12*29.76*1.69mm |
| Active Area | 13.824*23.04mm |
| FPC Connecting Method | 8Pin plug in / 13Pin soldering FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |
Product Pictures

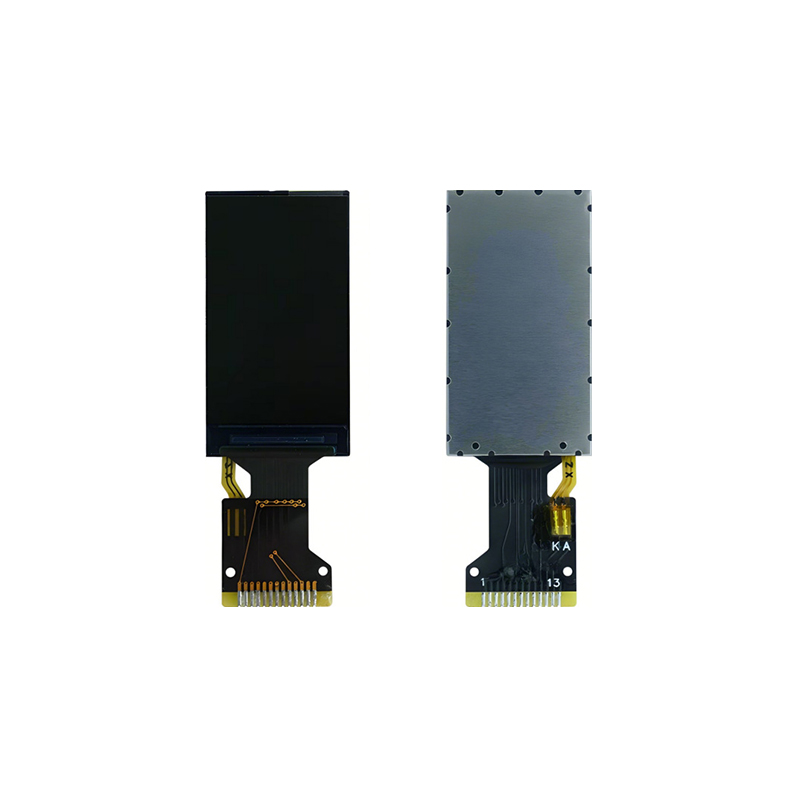

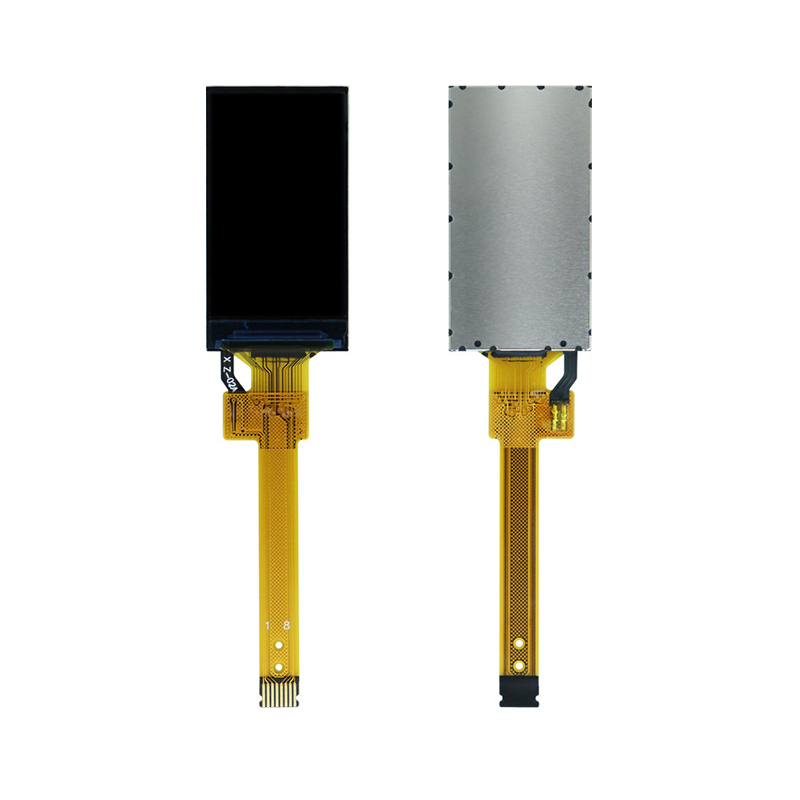

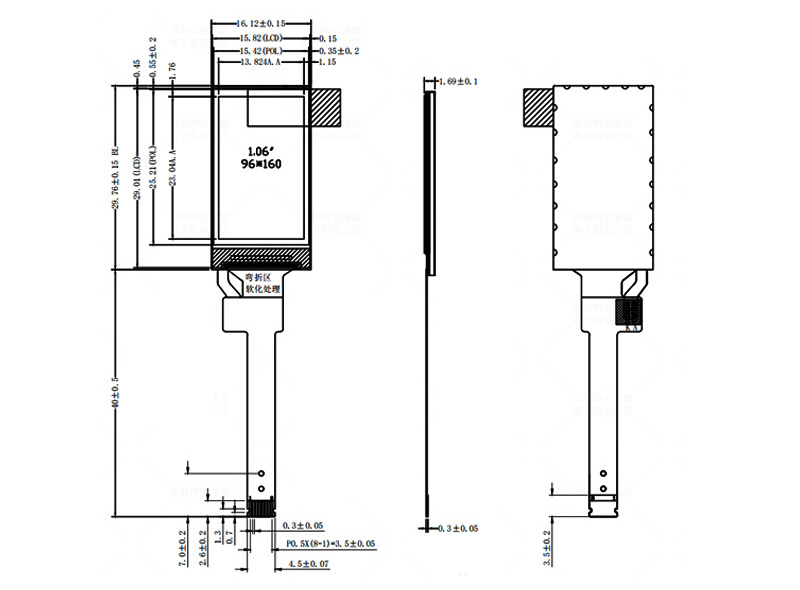

Drawing

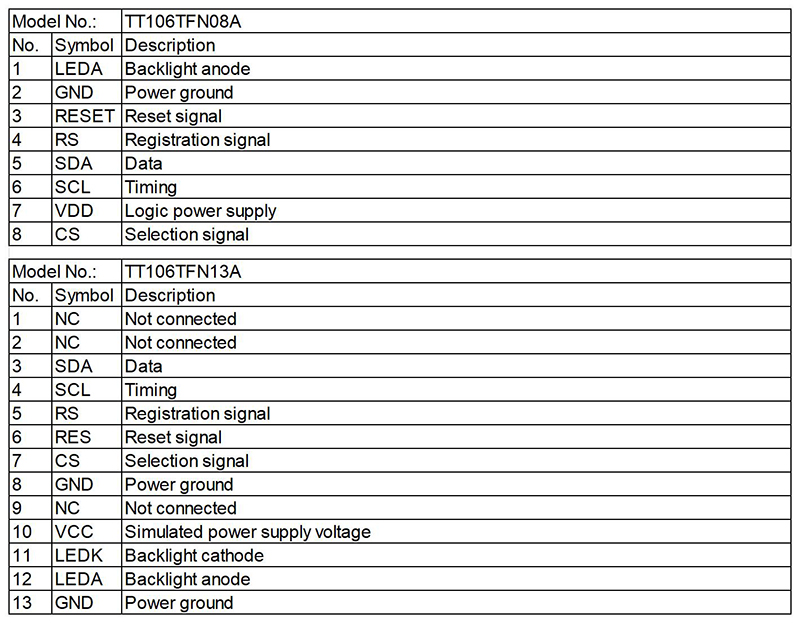

Pin Description
