PRODUCT DETAILS
Product Introduction


Product Parameters




FACTORY Offer 1.12 Inch 50*160 Small SPI Bar TFT LCD Screen Display 1.12inch 8Pin 13Pin GC9D01 Stripe LCD Module Custom Touch Panel


Display TypeTFT LCD Display
Model No.

TT112TFN08A(8Pin plug in FPC)

TT112TFN13A(13Pin soldering FPC)

Display Size1.12 inch
Resolution
50*160
InterfaceSPI 4 Lanes
Viewing AngleIPS full viewing angle
Driver ICGC9D01
Luminance350cd/m2
Outline Dimension10.8*32.18*2.11mm
Active Area8.49*27.17mm
FPC Connecting Method8Pin Plug in / 13 Pin soldering FPC
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service

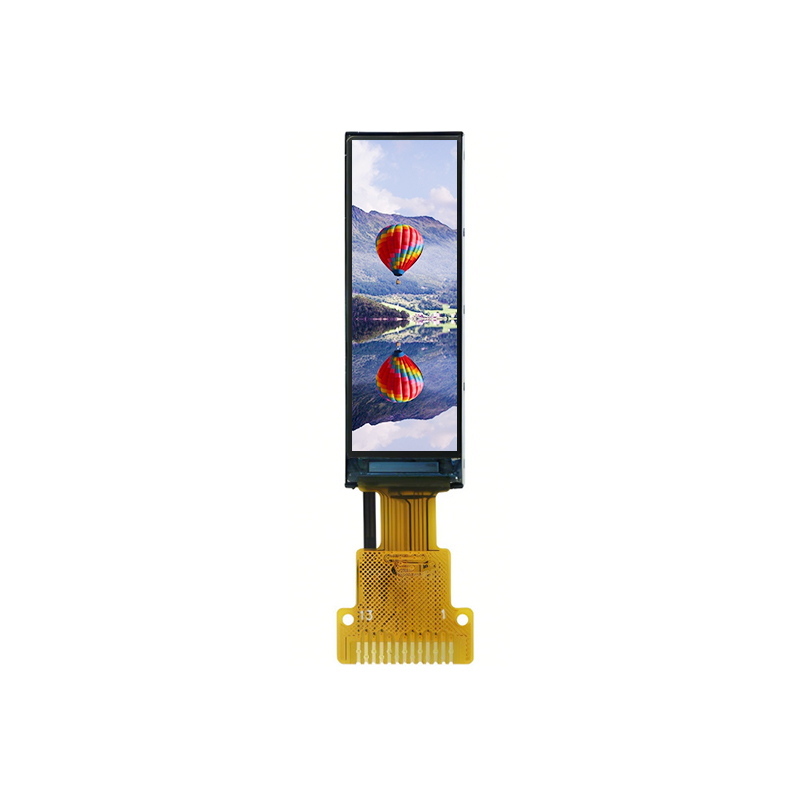

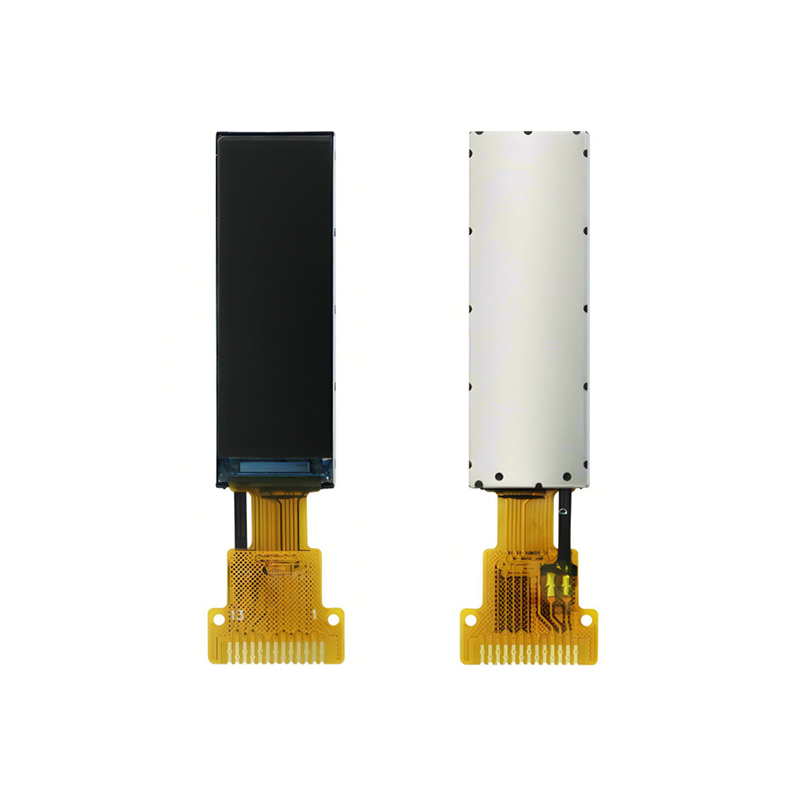

Product Pictures

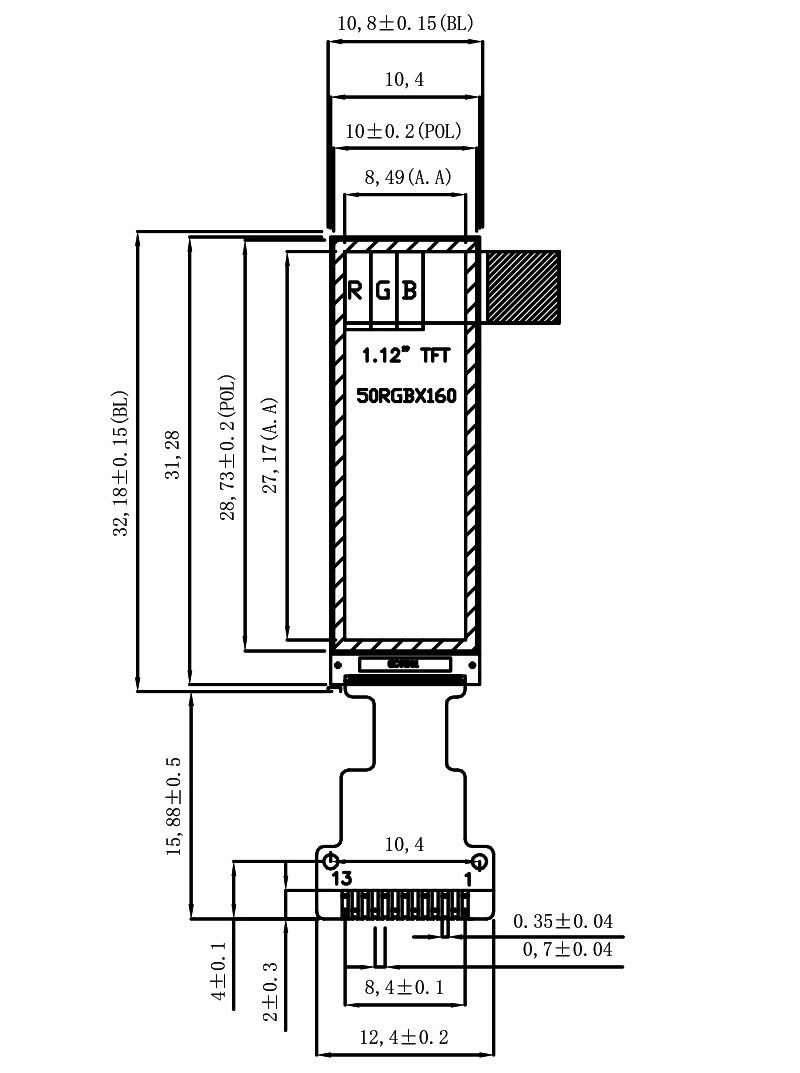

Drawing

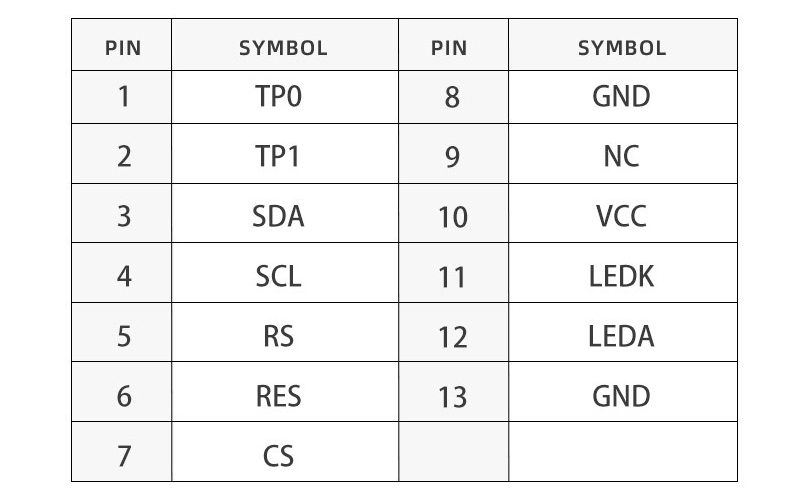

Pin Description






Customization






Product Parameters




FACTORY Offer 1.12 Inch 50*160 Small SPI Bar TFT LCD Screen Display 1.12inch 8Pin 13Pin GC9D01 Stripe LCD Module Custom Touch Panel


Display TypeTFT LCD Display
Model No.

TT112TFN08A(8Pin plug in FPC)

TT112TFN13A(13Pin soldering FPC)

Display Size1.12 inch
Resolution
50*160
InterfaceSPI 4 Lanes
Viewing AngleIPS full viewing angle
Driver ICGC9D01
Luminance350cd/m2
Outline Dimension10.8*32.18*2.11mm
Active Area8.49*27.17mm
FPC Connecting Method8Pin Plug in / 13 Pin soldering FPC
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service


Product Pictures





Drawing






Pin Description






Customization




TT112TFN13A FACTORY Offer 1.12 Inch 50*160 Small SPI Bar TFT LCD Screen Display 1.12inch 8Pin 13Pin GC9D01 Stripe LCD Module Custom Touch Panel
