Product Parameters
Small Size 1.68 Inch 142*428 NV3007 SPI Bar TFT LCD Module Screen 1.7inch Stripe LCD Display 8Pin Factory Custom Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT168TFN08A(8Pin Plug in FPC) TT168TFN13A(13Pin Soldering FPC) |
| Display Size | 1.68 inch |
| Resolution | 142*428 |
| Interface | SPI 4 Lines |
| Viewing Angle | IPS full viewing angle |
| Driver IC | NV3007 |
| Luminance | 350cd/m2 |
| Outline Dimension | 16.3*44.96*2.23mm |
| Active Area | 13.16*39.68mm |
| FPC Connecting Method | 8Pin Plug in FPC/13Pin Soldering FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

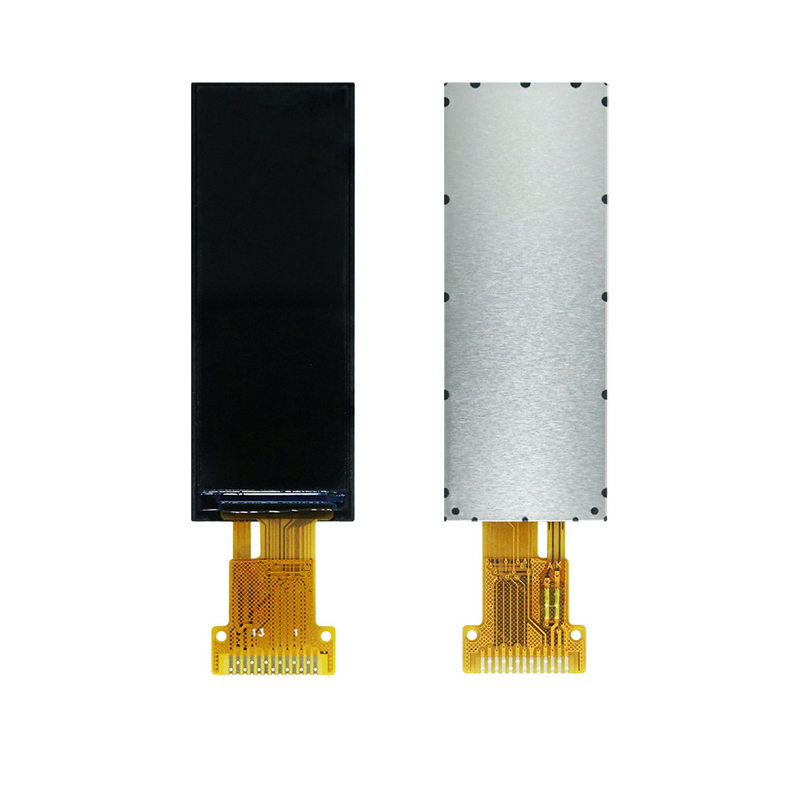

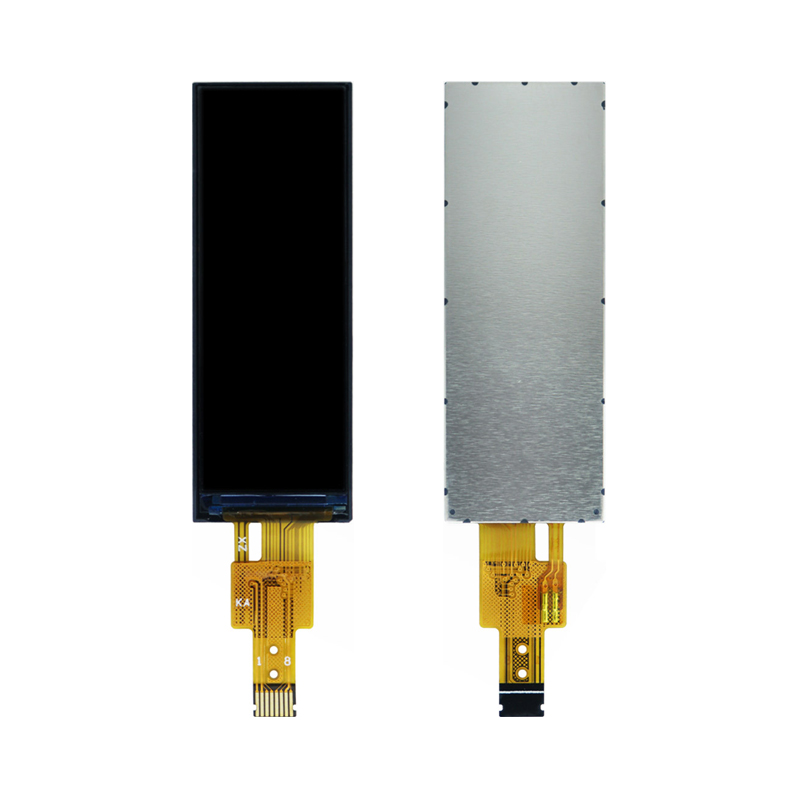

Product Pictures

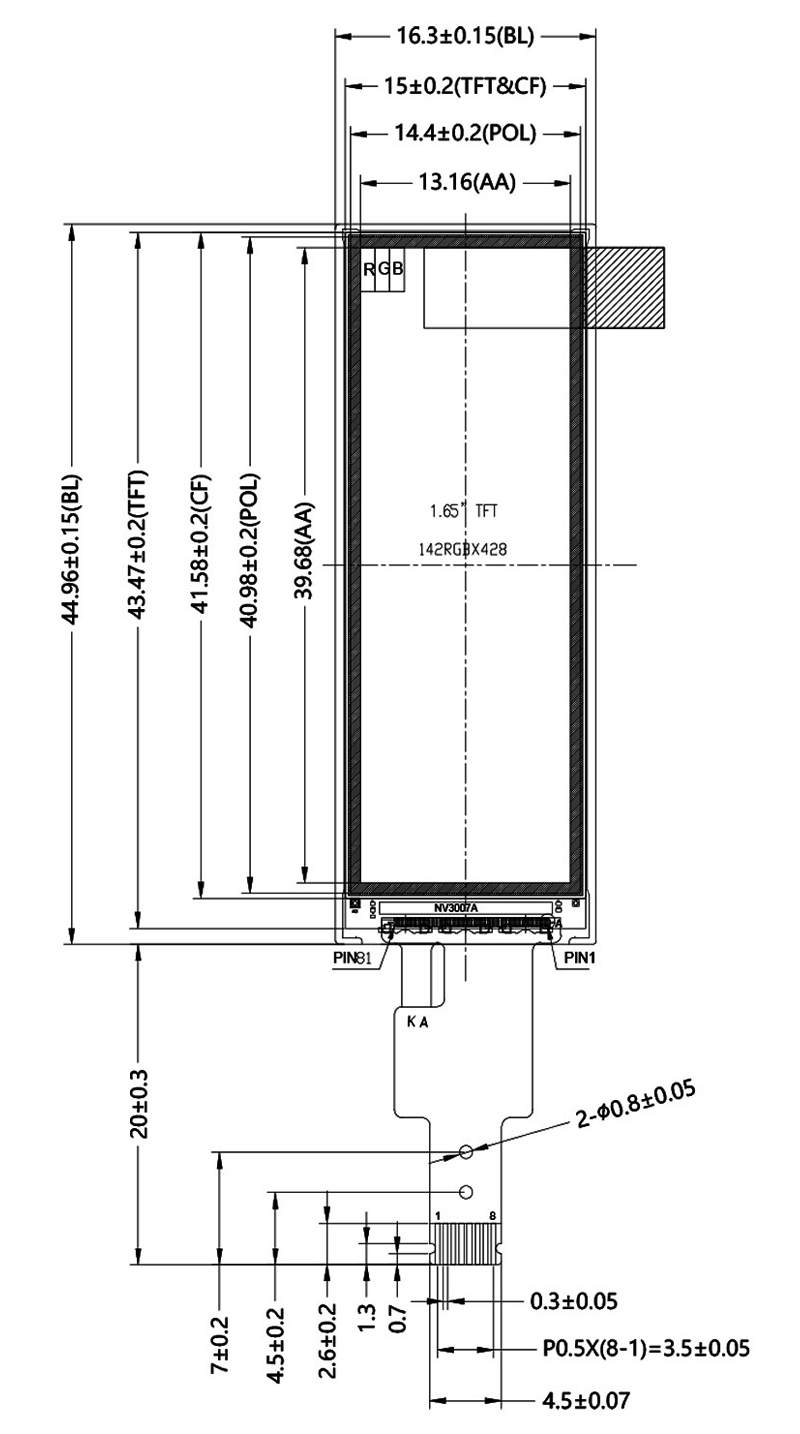

Drawing

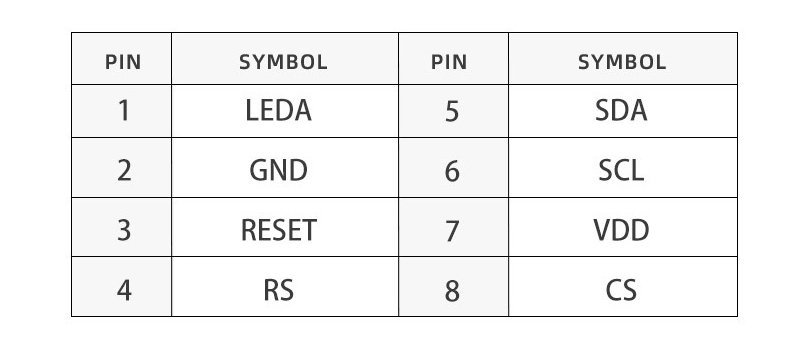

Pin Description
Customization
