1.69 Inch 240*280 MCU 8Bit ST7789 Smart Watch TFT LCD Touch Screen 1.69inch 24Pin LCD Display Module with Capacitive Touch Panel


Display TypeTFT LCD Display
Model No.TT169TFC24B
Display Size1.69 inch
Resolution
240*280
InterfaceMCU 8Bit
Viewing AngleIPS full viewing angle
Driver ICST7789V3
Luminance400cd/m2
Outline Dimension34.62*41.56*3.33mm
Active Area27.97*32.63mm
FPC Connecting Method24 Pin board to board connector
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service

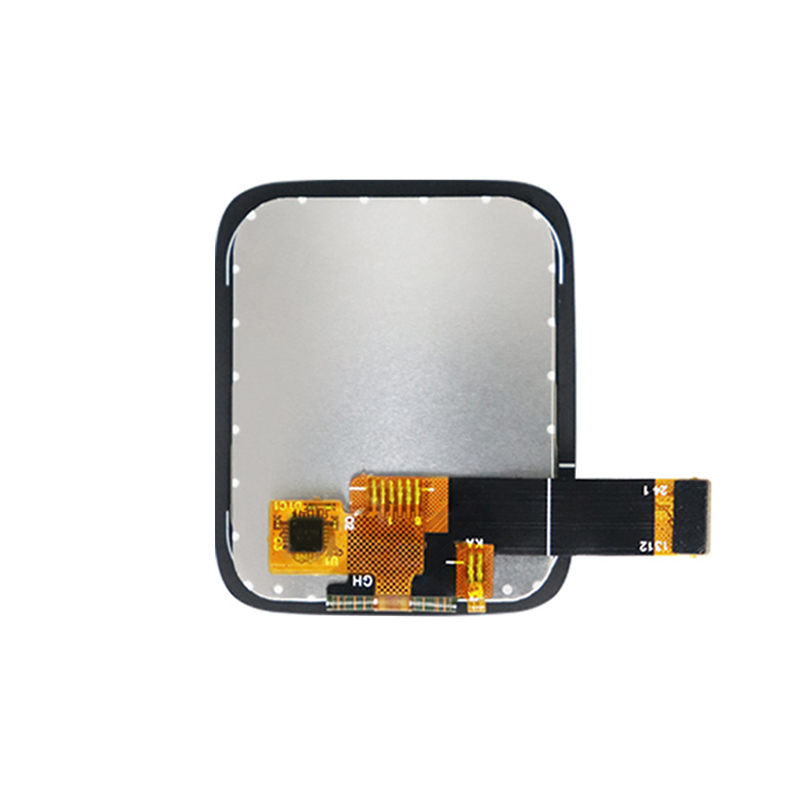

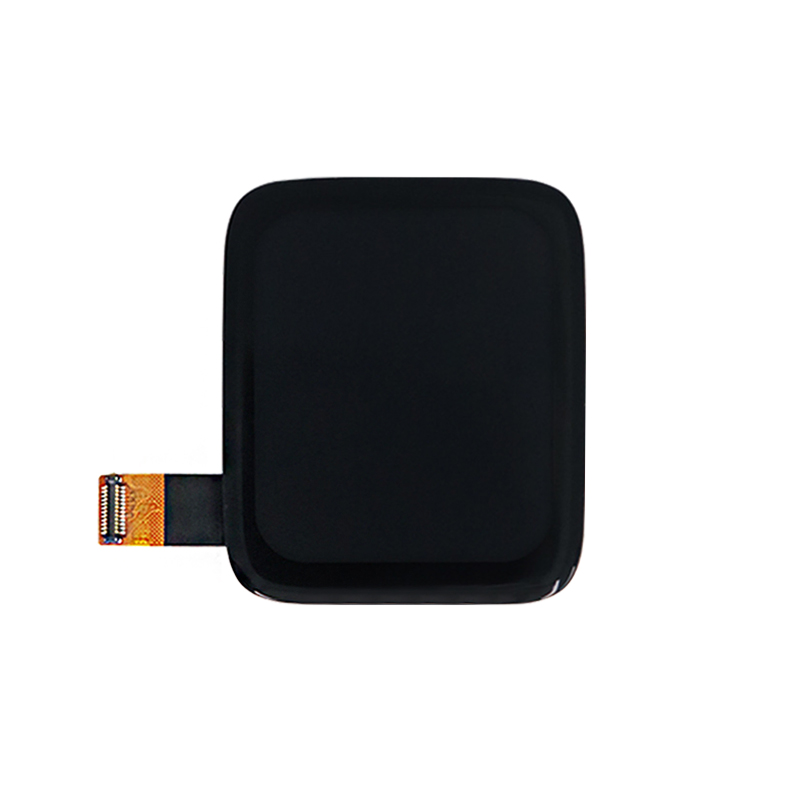

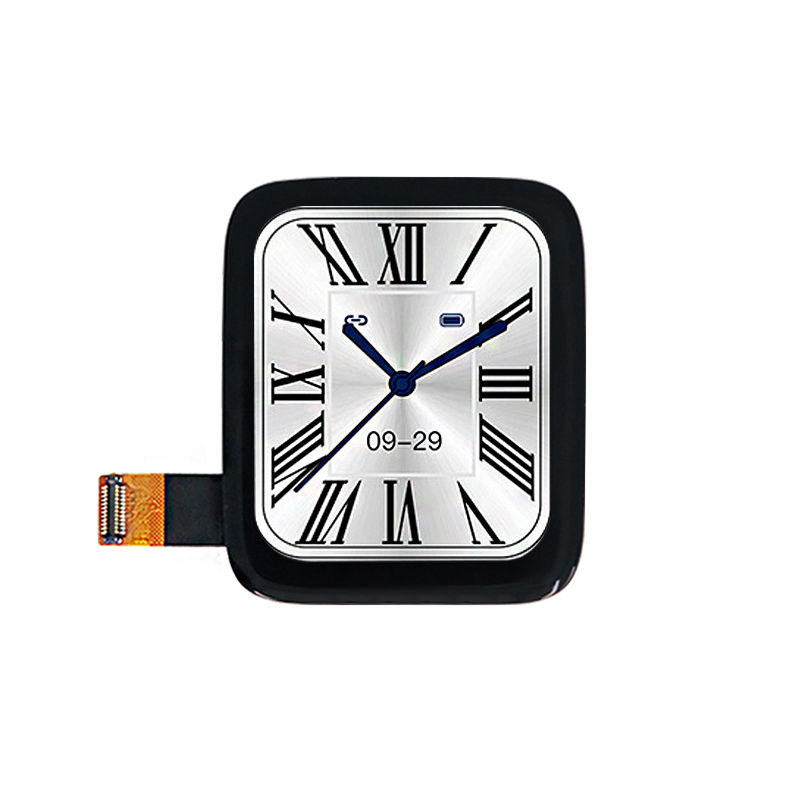

Product Pictures




Drawing

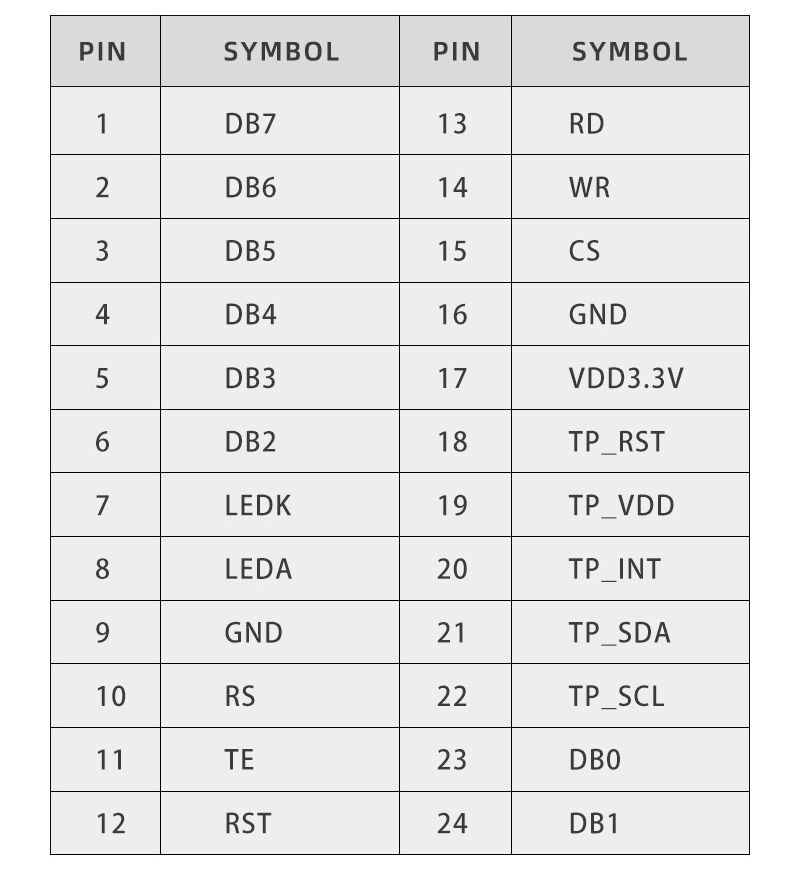

Pin Description





Customization





Product Parameters



1.69 Inch 240*280 MCU 8Bit ST7789 Smart Watch TFT LCD Touch Screen 1.69inch 24Pin LCD Display Module with Capacitive Touch Panel


Display TypeTFT LCD Display
Model No.TT169TFC24B
Display Size1.69 inch
Resolution
240*280
InterfaceMCU 8Bit
Viewing AngleIPS full viewing angle
Driver ICST7789V3
Luminance400cd/m2
Outline Dimension34.62*41.56*3.33mm
Active Area27.97*32.63mm
FPC Connecting Method24 Pin board to board connector
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service


Product Pictures




Drawing





Pin Description





Customization
