Product Introduction




Product Parameters



1.83 inch 240x280 GC9307 4Wire SPI Square TFT LCD Screen Module for Smart Watch 1.83inch 15Pin LCD Display Customize Touchscreen
Model No.
TT183TFN12A
Size
1.83 inch
Resolution
240*280
Driver IC
GC9307
Viewing Angle
IPS
Interface
4 Wire SPI
Luminance
300cd/m2
LCM Dimension
31.62*39.13*1.90mm
Active Area
29.52*34.93mm

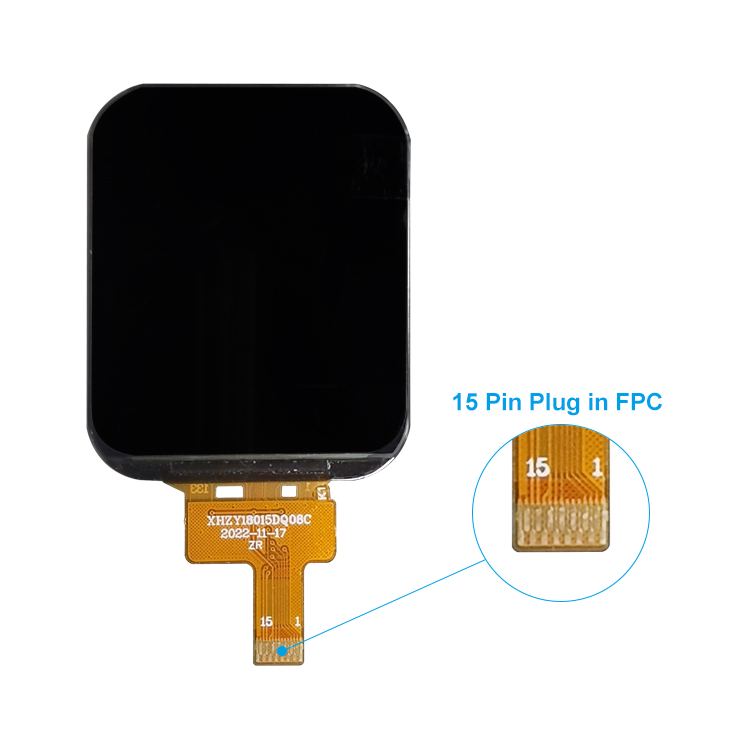

FPC Connecting Mode
15 Pin Plug in FPC,Support Customization
Touch Panel
Without Touch Panel,Support Customization
Testing Board
Optional
Datasheet & Initial Code
Please contact service

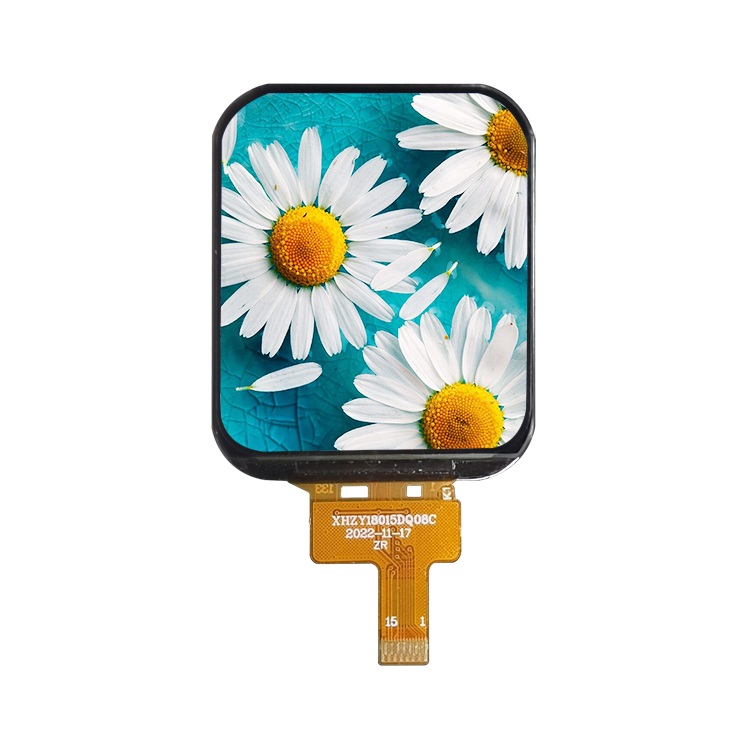

Product Pictures



Drawing

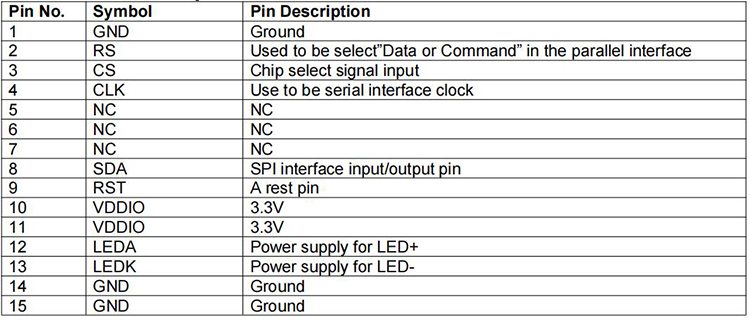

Pin Description





Customization







Product Parameters



1.83 inch 240x280 GC9307 4Wire SPI Square TFT LCD Screen Module for Smart Watch 1.83inch 15Pin LCD Display Customize Touchscreen
Model No.
TT183TFN12A
Size
1.83 inch
Resolution
240*280
Driver IC
GC9307
Viewing Angle
IPS
Interface
4 Wire SPI
Luminance
300cd/m2
LCM Dimension
31.62*39.13*1.90mm
Active Area
29.52*34.93mm
FPC Connecting Mode
15 Pin Plug in FPC,Support Customization
Touch Panel
Without Touch Panel,Support Customization
Testing Board
Optional
Datasheet & Initial Code
Please contact service


Product Pictures



Drawing





Pin Description





Customization
