Product Parameters
NEW 2.25 Inch 76*284 IPS Small SPI Bar TFT LCD Module Display 2.3inch 8Pin ST7789 Digital Stripe LCD Screen Custom Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT225TFN08A(8Pin Plug in FPC) TT225TFN10A(10Pin Soldering FPC) |
| Display Size | 2.25 inch |
| Resolution | 76*284 |
| Interface | SPI 4 Lines |
| Viewing Angle | IPS full viewing angle |
| Driver IC | ST7789P3 |
| Luminance | 400cd/m2 |
| Outline Dimension | 17.9*62.5*2.36mm |
| Active Area | 14.797*55.295mm |
| FPC Connecting Method | 8Pin Plug in FPC/10Pin Soldering FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

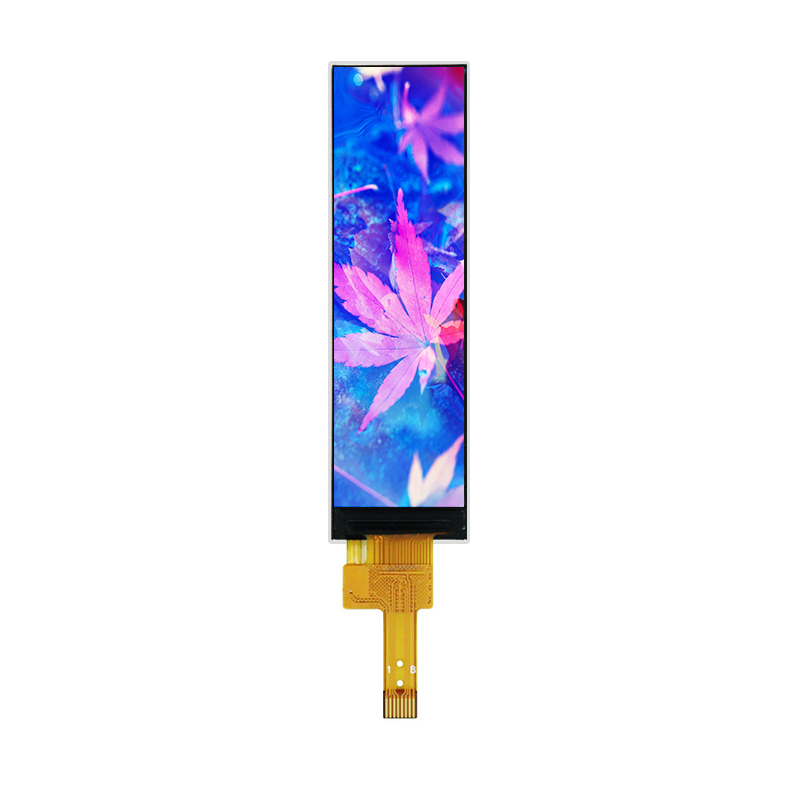

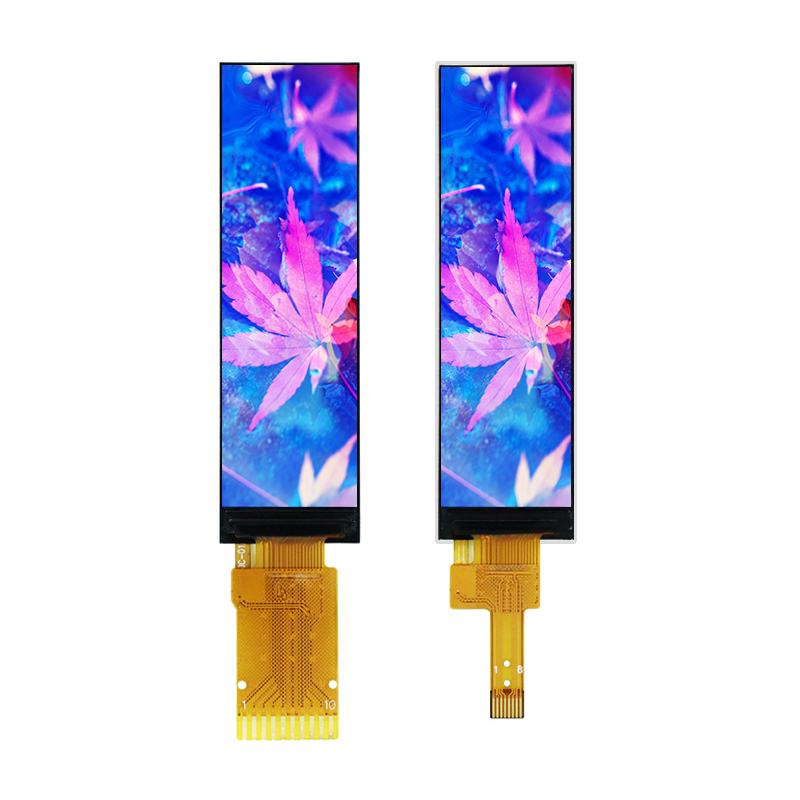

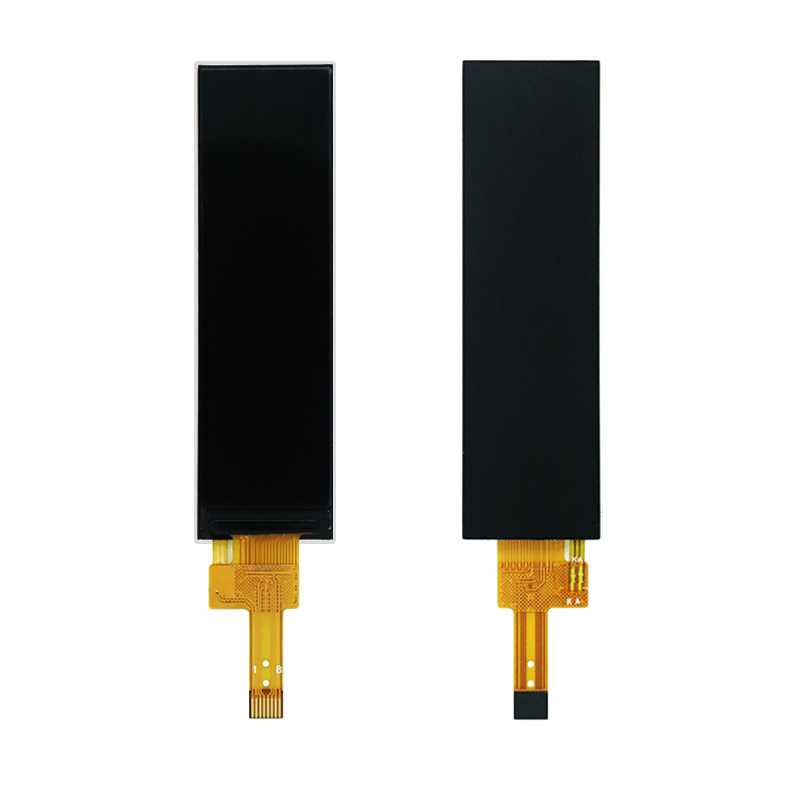

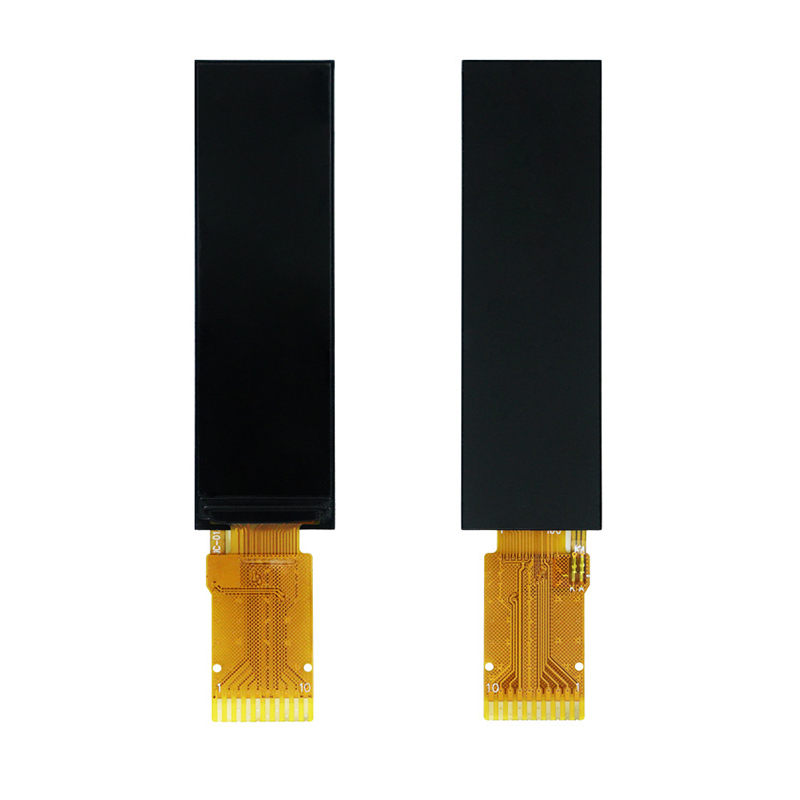

Product Pictures

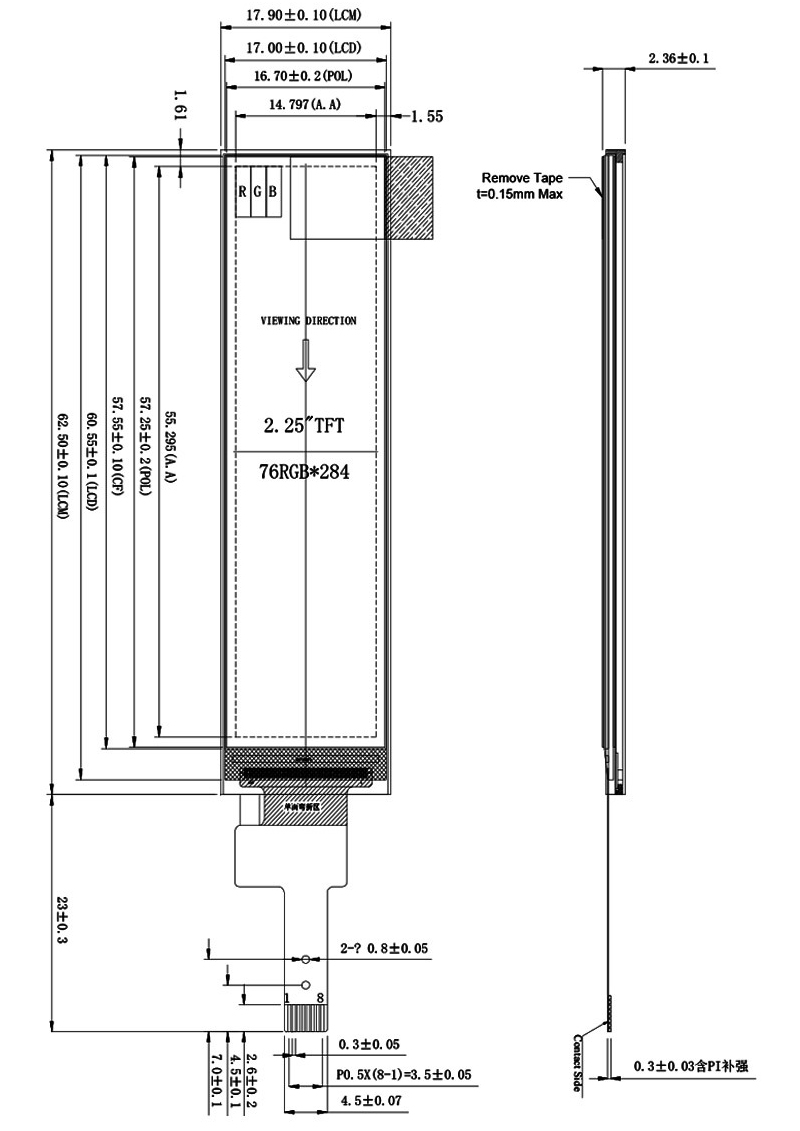

Drawing

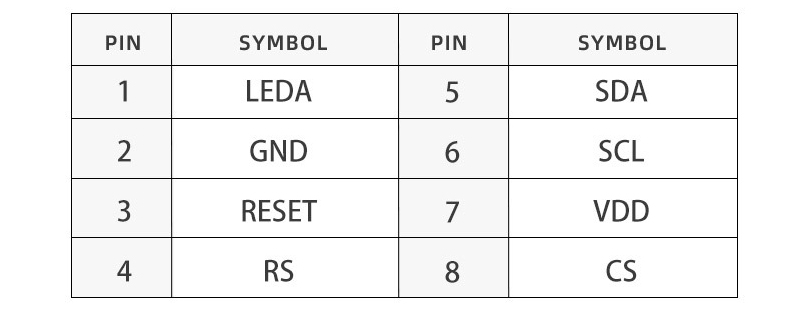

Pin Description
