Product Parameters
2.1 Inch 480*480 SPI+RGB Round TFT LCD Module Screen 2.1inch 40Pin Circular ST7701S LCD Display Touchscreen Touch Panel Optional
| Display Type | TFT LCD Display |
| Model No. | TT210TFN17A |
| Display Size | 2.1 inch |
| Resolution | 480*480 |
| Interface | SPI+RGB |
| Viewing Angle | IPS full viewing angle |
| Driver IC | ST7701s |
| Luminance | 350cd/m2 |
| Outline Dimension | 56.18*59.71*2.3mm |
| Active Area | 53.28*53.28mm |
| FPC Connecting Method | 40Pin Plug in FPC |
| Touch Panel | Without touch,capacitive touch panel optional,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

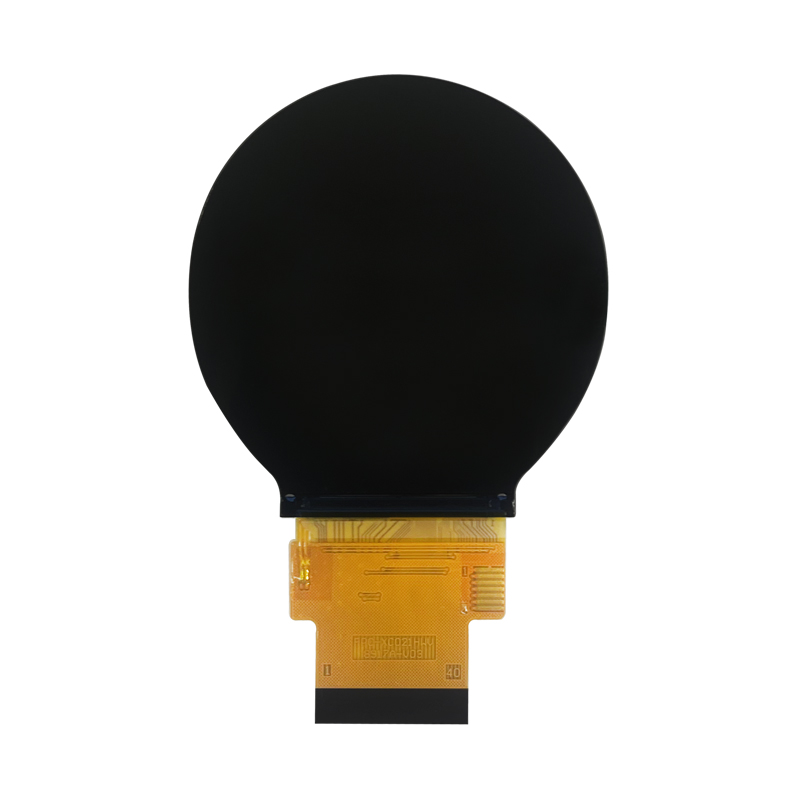

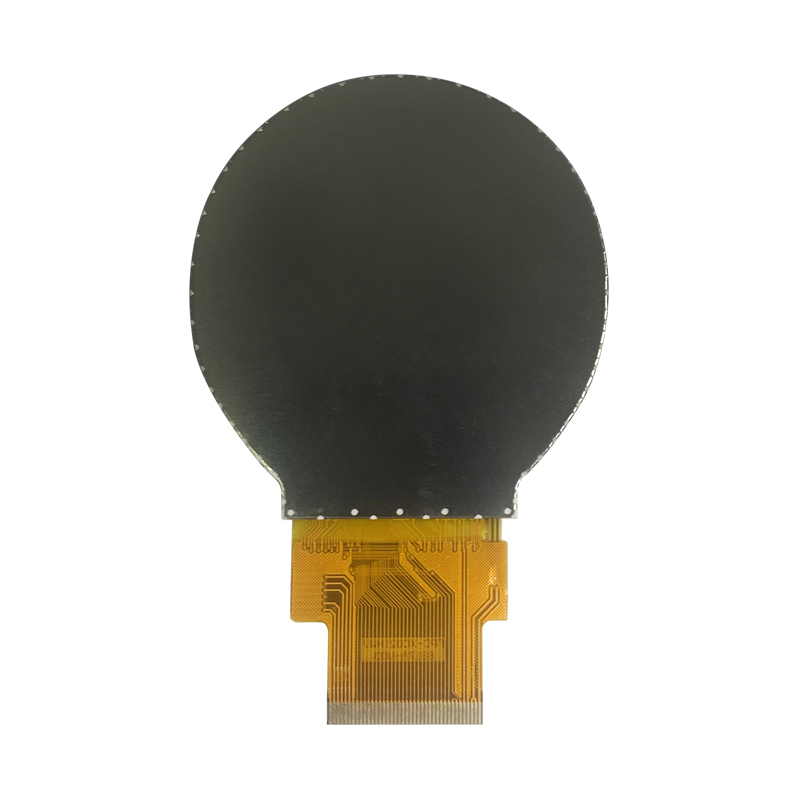

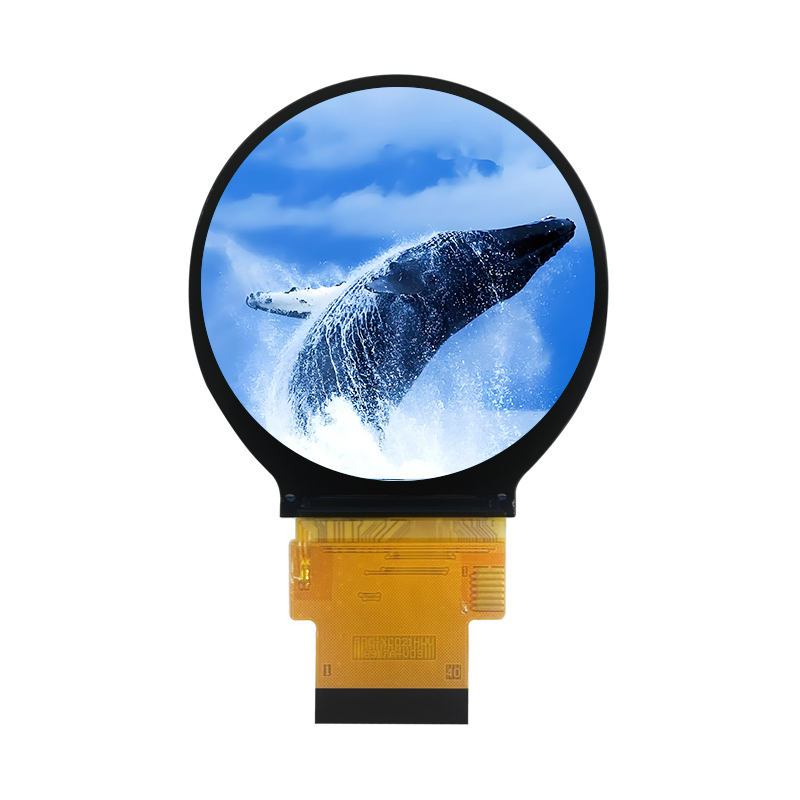

Product Pictures

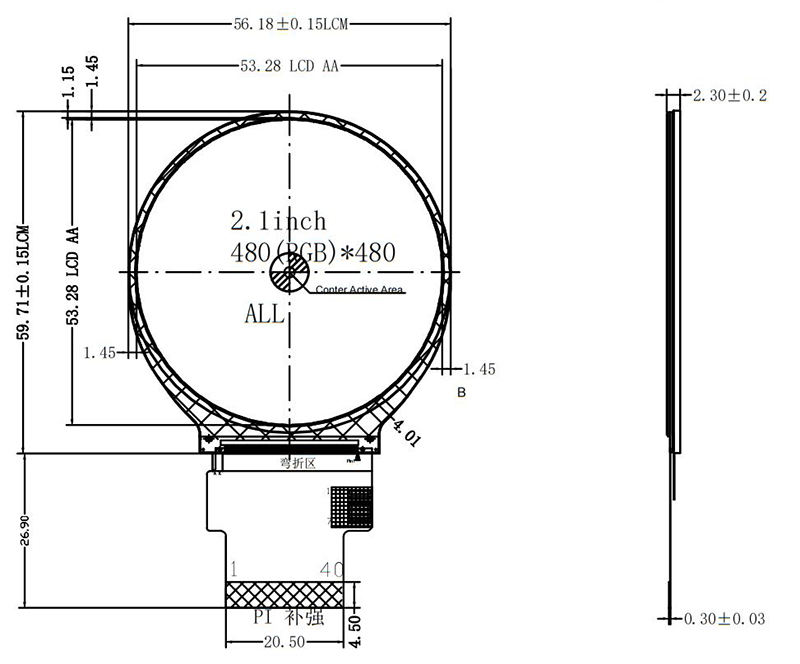

Drawing

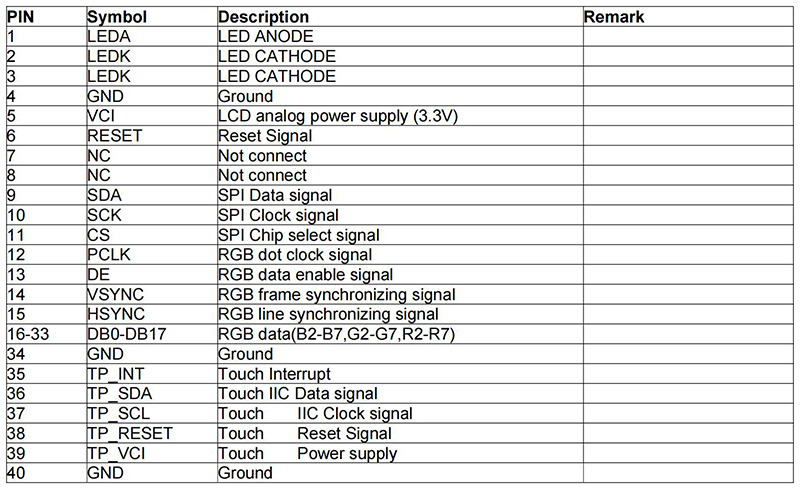

Pin Description
Customization
