Product Parameters
2.1 Inch 480*480 MIPI DSI Round TFT LCD Display Module 2.1inch 30Pin Circular ST7701S LCD Screen Capacitive Touch Panel Optional
| Display Type | TFT LCD Display |
| Model No. | TT210TFN11A |
| Display Size | 2.1 inch |
| Resolution | 480*480 |
| Interface | MIPI |
| Viewing Angle | IPS full viewing angle |
| Driver IC | ST7701s |
| Luminance | 350cd/m2 |
| Outline Dimension | 56.18*59.71*2.3mm |
| Active Area | 53.28*53.28mm |
| FPC Connecting Method | 30Pin Plug in FPC |
| Touch Panel | Without touch,capacitive touch panel optional,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

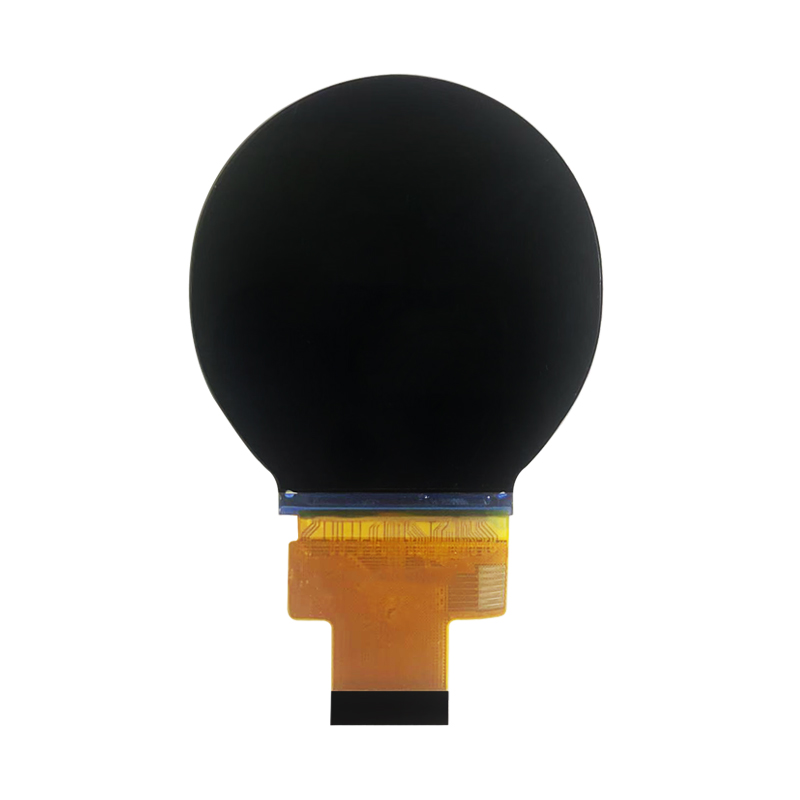

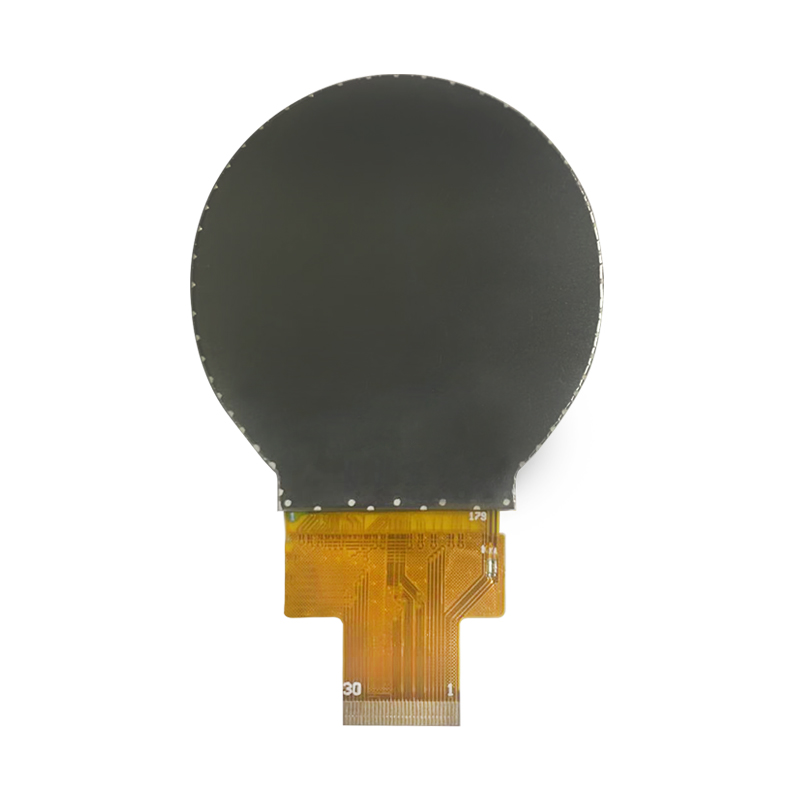

Product Pictures
Drawing

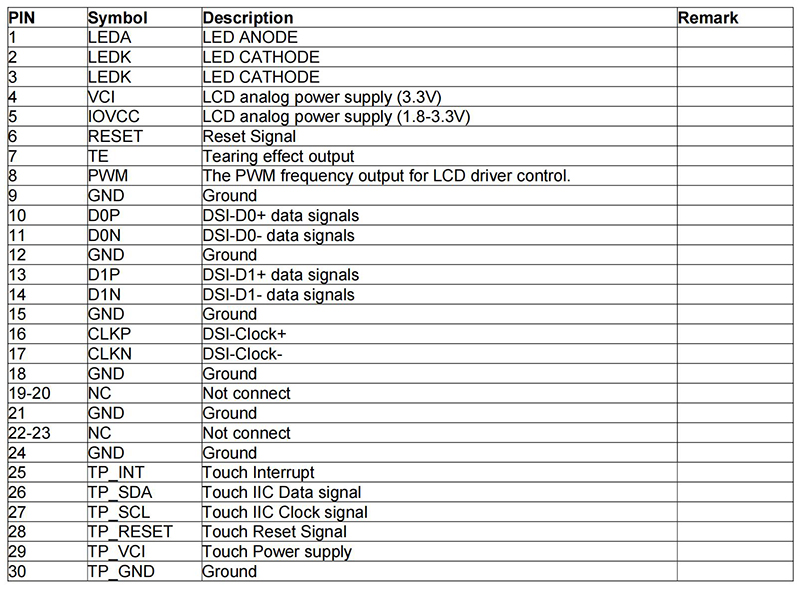

Pin Description
Customization
