Product Parameters
BOE 2.54 Inch 1440*1600 MIPI DSI Hexagon TFT LCD Module Display for AR VR Glasses Helmet 2.54inch 50Pin NT57860 LCD Screen Panel
| Display Type | TFT LCD Display |
| Model No. | VS025ZSM-NV0-69P0 |
| Display Size | 2.54 inch |
| Resolution | 1440*1600 |
| Driver IC | NT57860 |
| Interface | MIPI DSI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 150cd/m2 |
| Outline Dimension | 46.6*55.5*2.34mm |
| Active Area | 43.2*48mm |
| FPC Connecting Method | 50Pin board to board connector |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

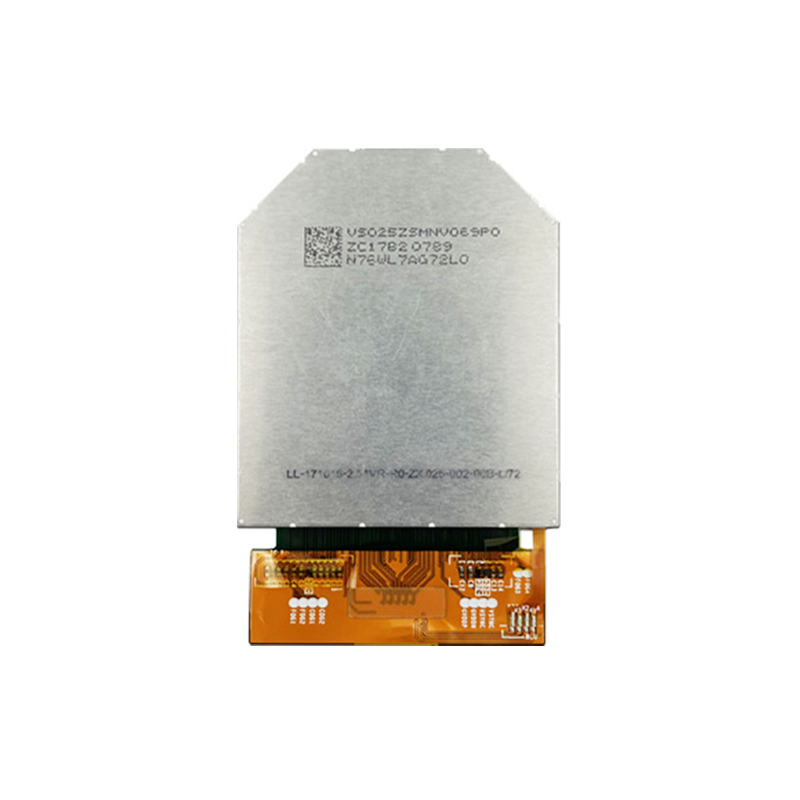

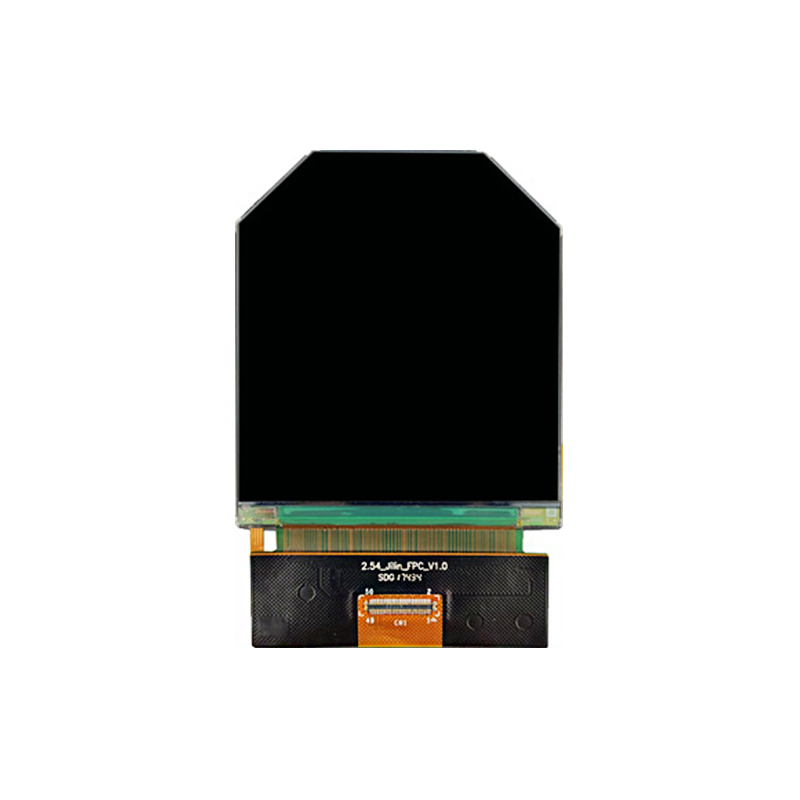

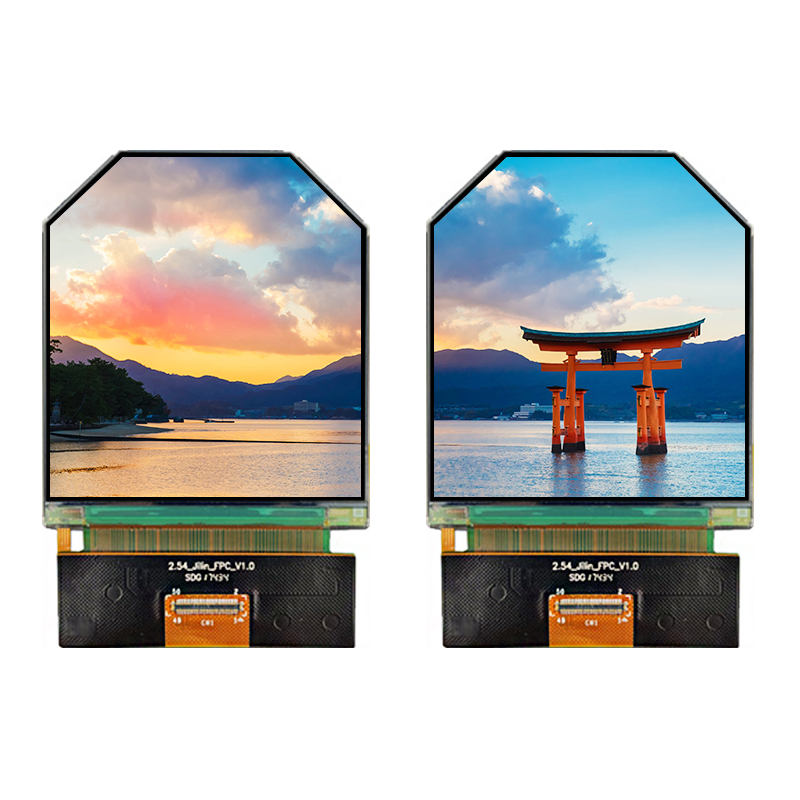

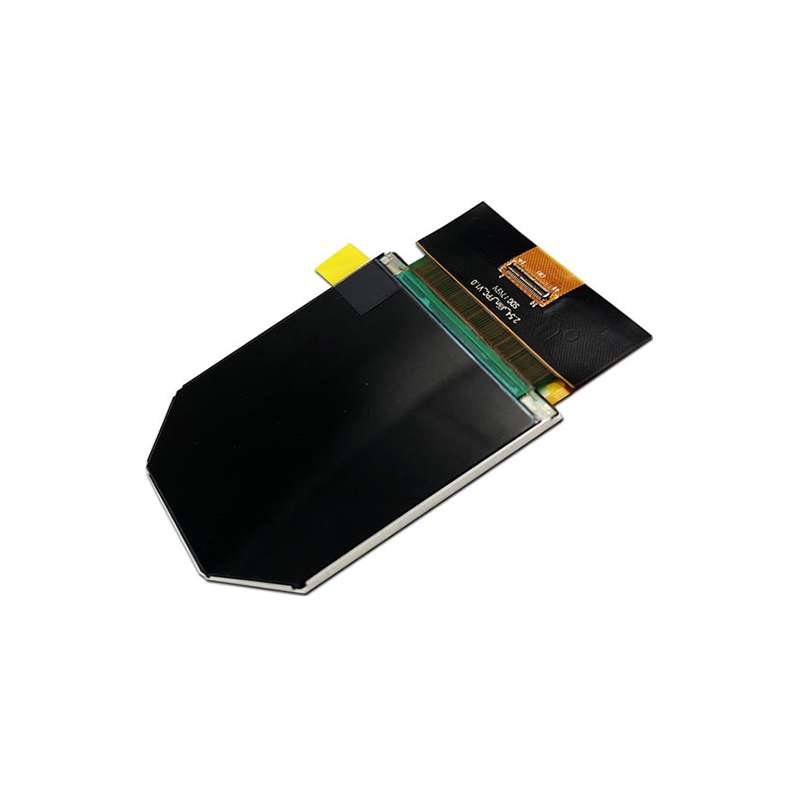

Product Pictures

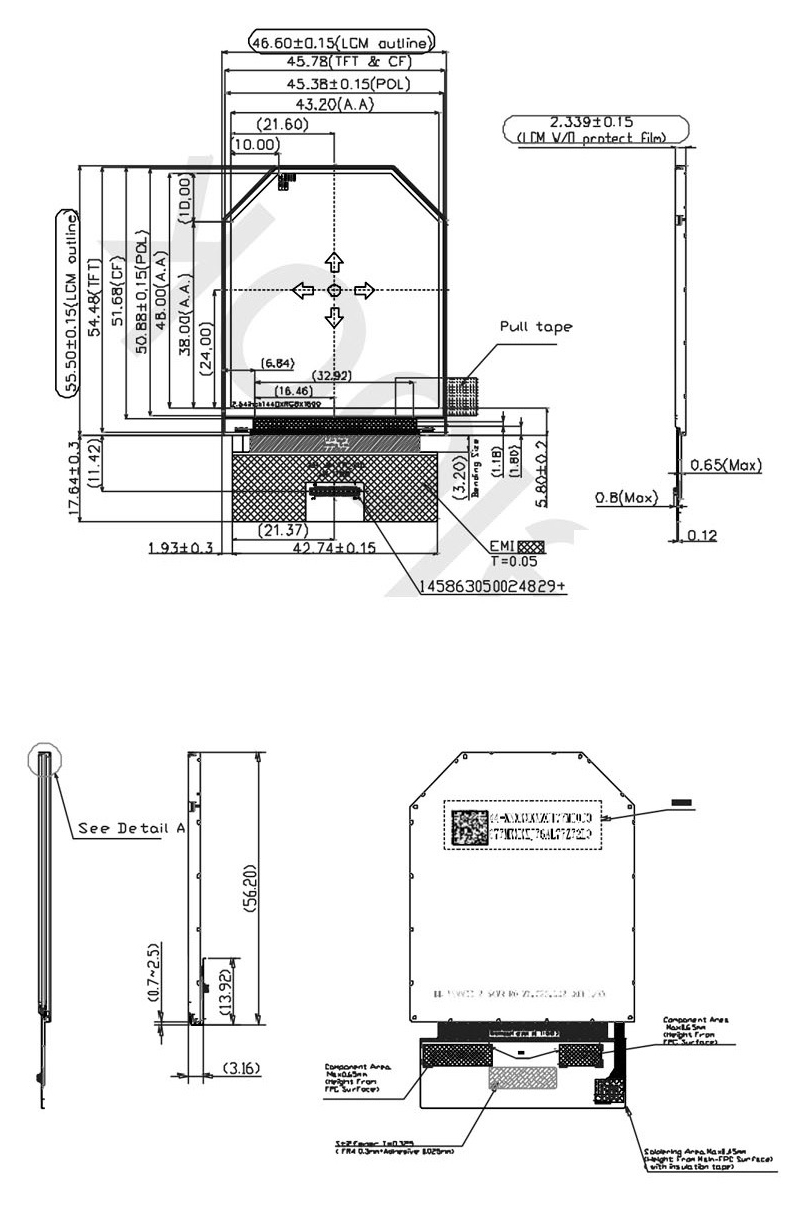

Drawing

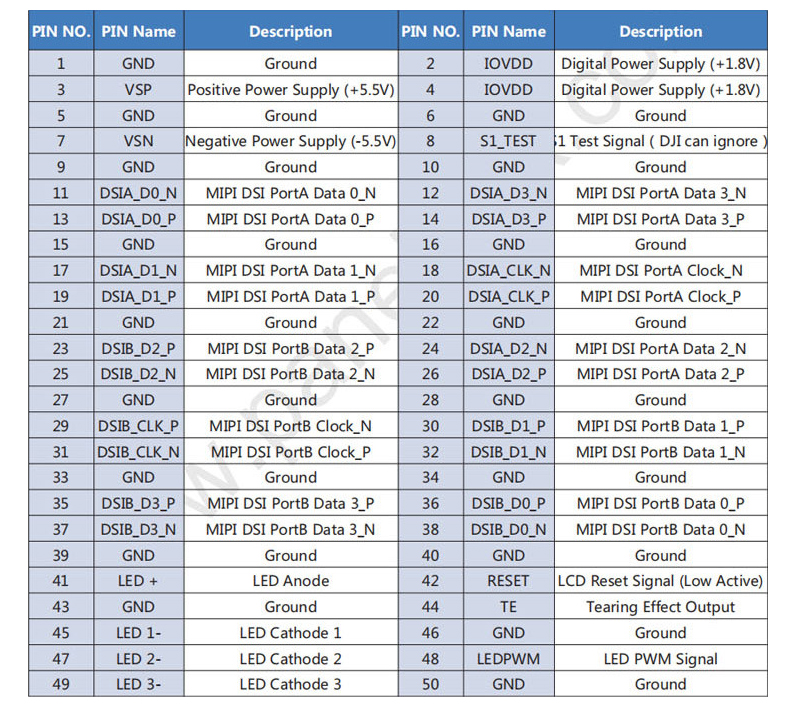

Pin Description
Customization
