PRODUCT DETAILS
Product Introduction


Product Parameters



SMALL 2.4 Inch 240*320 SPI MCU Outdoor Sunlight Readable Transflective TFT LCD Screen Display 39Pin ST7789 LCD TFT Module Panel


Display TypeTFT LCD Display
Model No.TT241BTN39A
Display Size2.41 inch
Resolution
240*320
InterfaceSPI/MCU 8Bit 16Bit
Viewing AngleIPS full viewing angle
Driver ICST7789
Luminance400cd/m2
Outline Dimension40.9*57.71*2.28mm
Active Area36.72*48.96mm
FPC Connecting Method39 Pin plug in FPC
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service

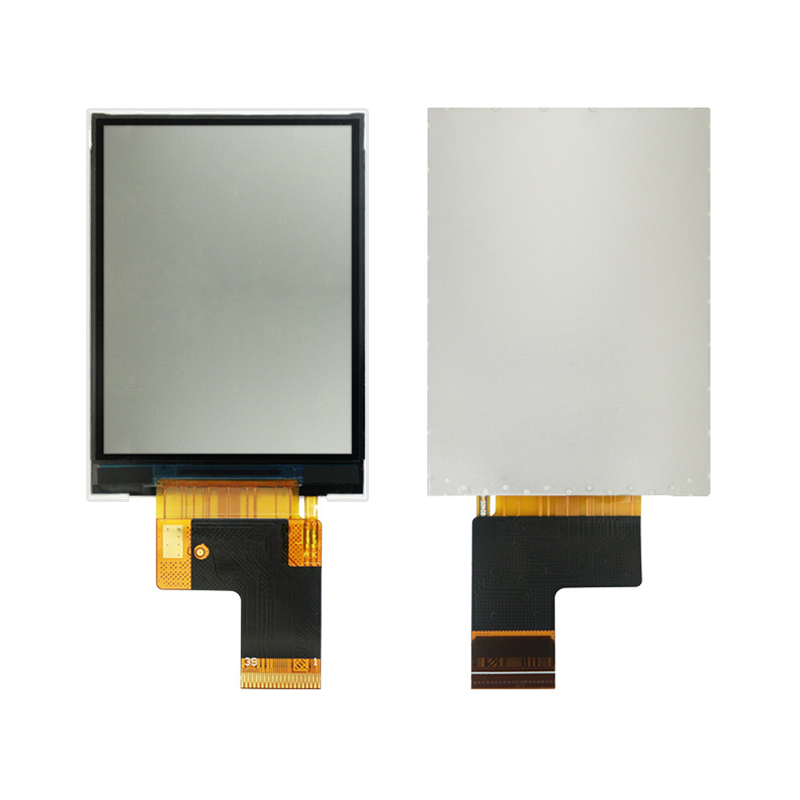

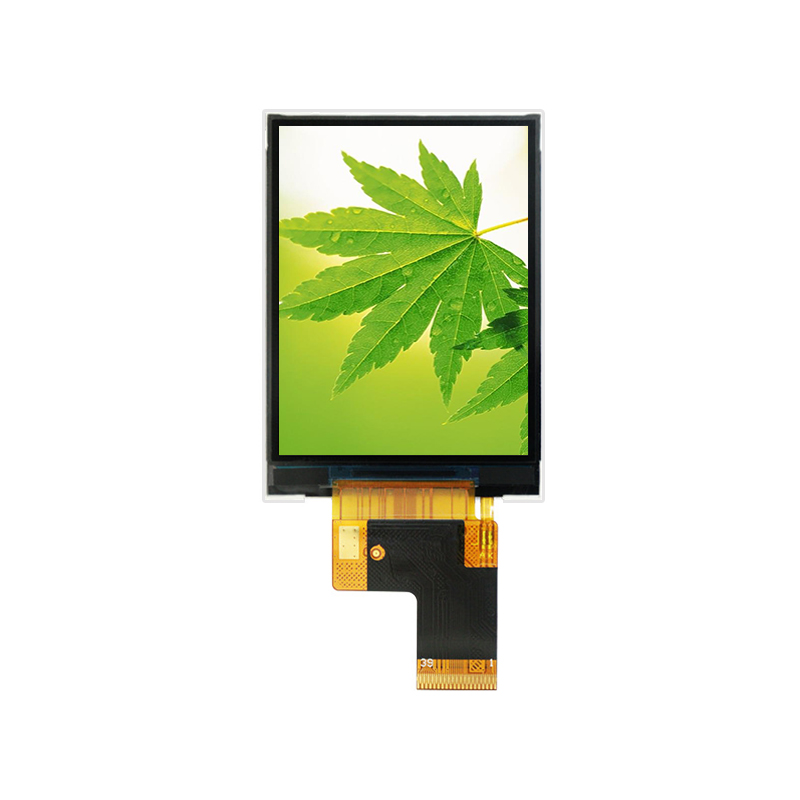

Product Pictures

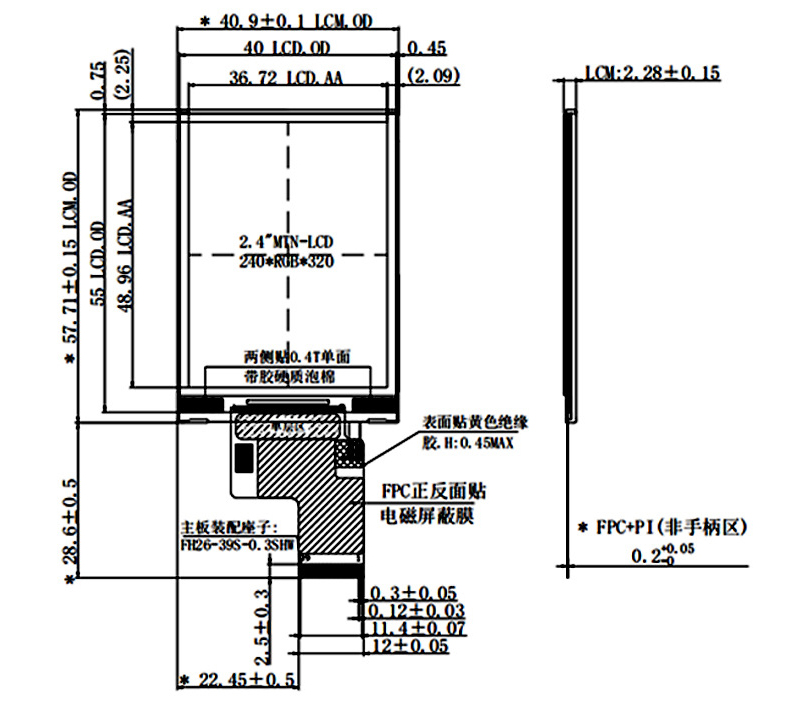

Drawing

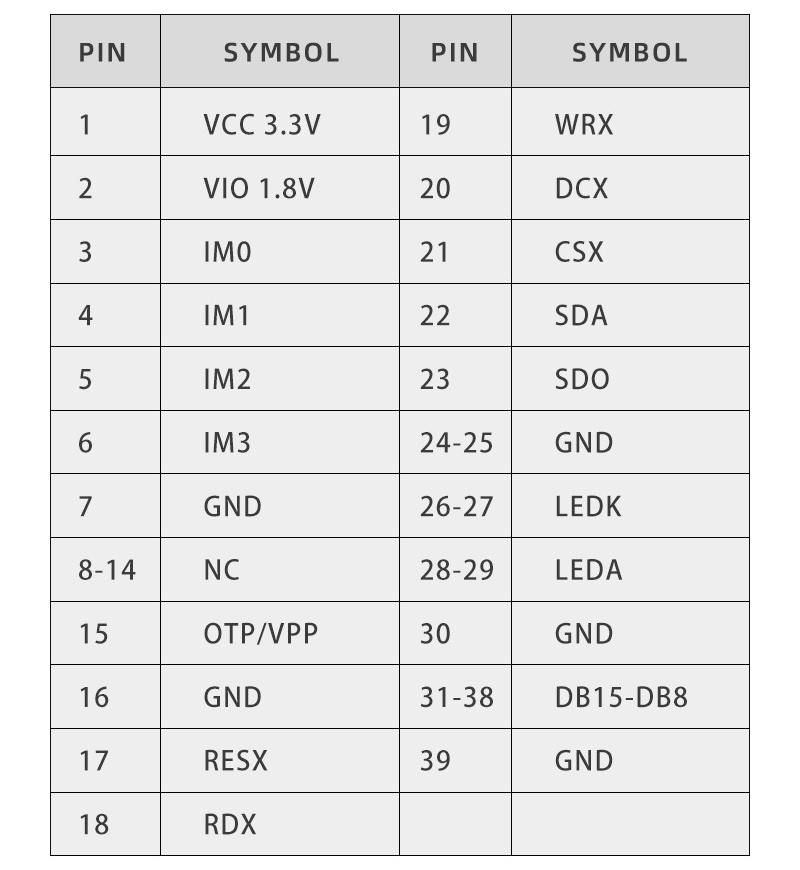

Pin Description





Customization





Product Parameters



SMALL 2.4 Inch 240*320 SPI MCU Outdoor Sunlight Readable Transflective TFT LCD Screen Display 39Pin ST7789 LCD TFT Module Panel


Display TypeTFT LCD Display
Model No.TT241BTN39A
Display Size2.41 inch
Resolution
240*320
InterfaceSPI/MCU 8Bit 16Bit
Viewing AngleIPS full viewing angle
Driver ICST7789
Luminance400cd/m2
Outline Dimension40.9*57.71*2.28mm
Active Area36.72*48.96mm
FPC Connecting Method39 Pin plug in FPC
Touch PanelWithout touch panel,support customization
Testing BoardOptional
Datasheet & Initial Code

Please contact service


Product Pictures




Drawing





Pin Description





Customization
