Product Parameters
2.13 Inch 410*502 QSPI Square AMOLED Touch Screen with 2.5D Cover Glass Panel for Smart Watch 2.13inch 24Pin Color OLED Display
| Display Type | AMOLED Display |
| Model No. | TT213AMC28C |
| Display Size | 2.13 inch |
| Resolution | 410*502 |
| Driver IC | CO5300/CST820 |
| Interface | QSPI |
| Viewing Angle | IPS |
| Luminance | 600cd/m2 |
| Outline Dimension | 37.3*46*2.26mm |
| Active Area | 33.09*40.51mm |
| FPC Connector | 24 Pin Board to Board Connector |
| Touch Panel | With touch & cover panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | Support |

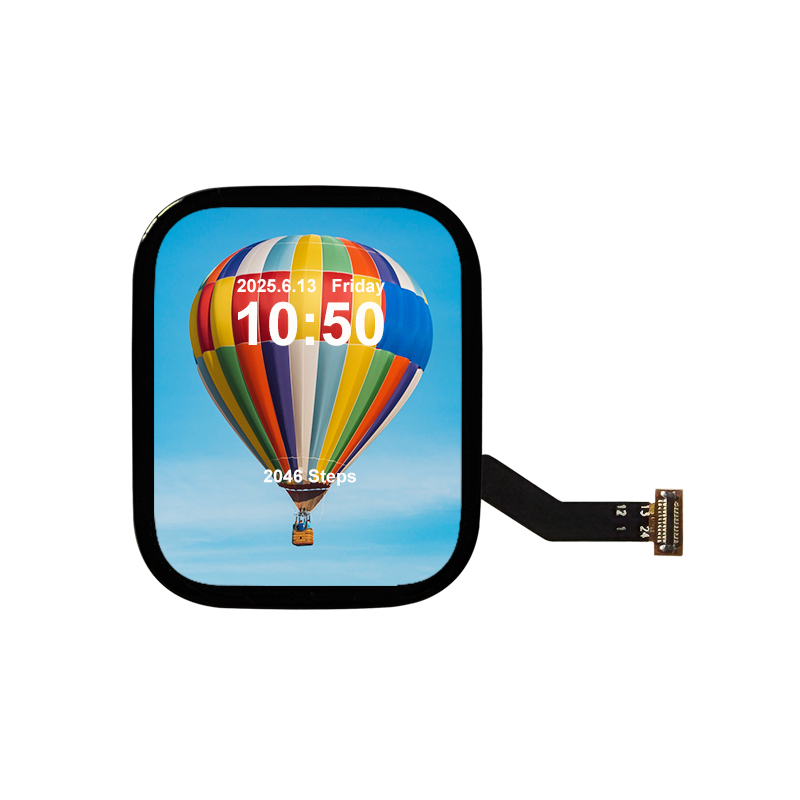

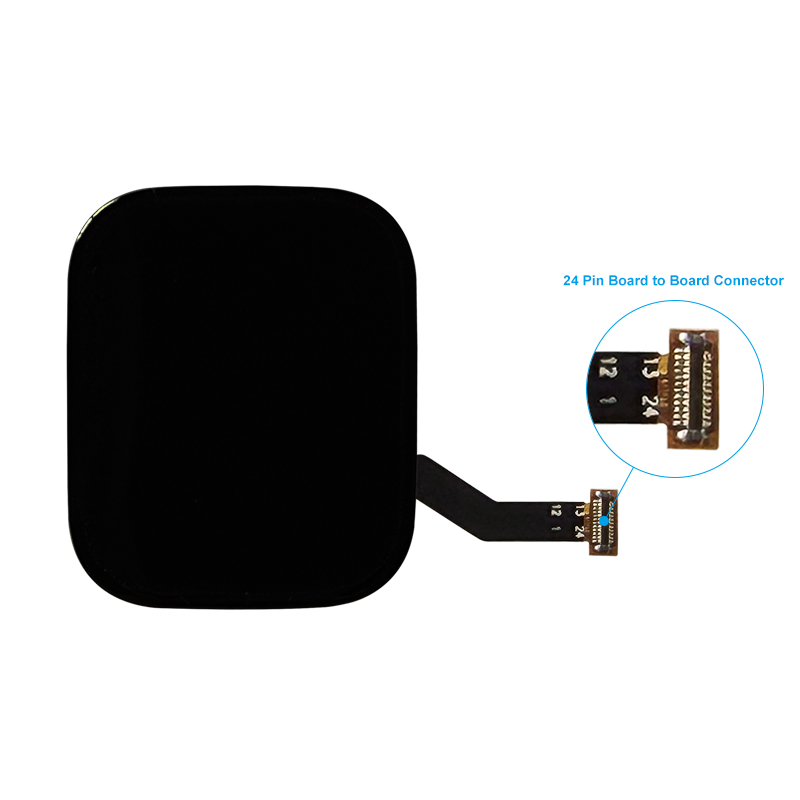

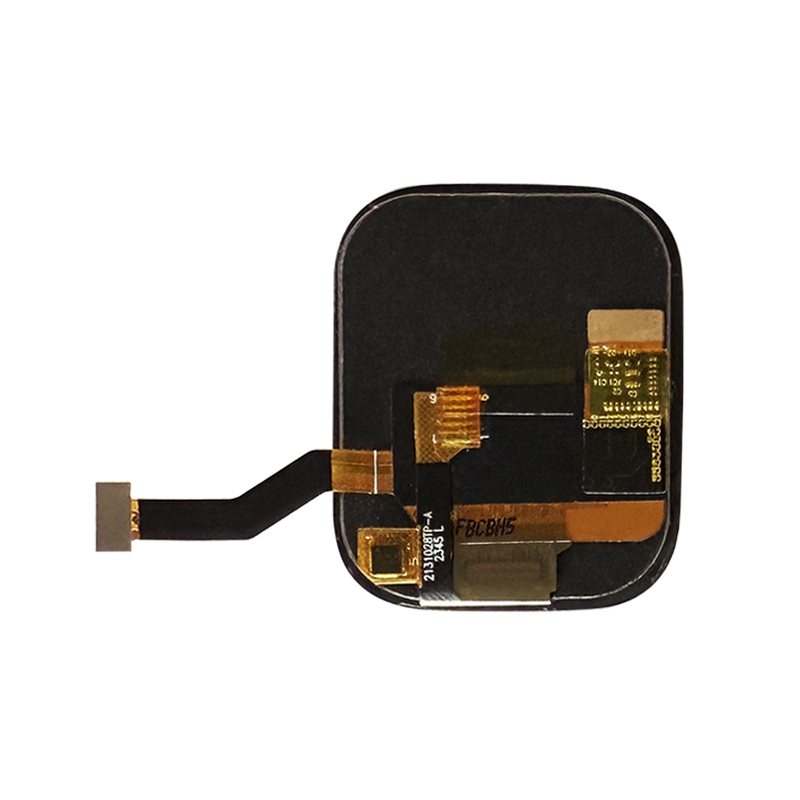

Product Pictures

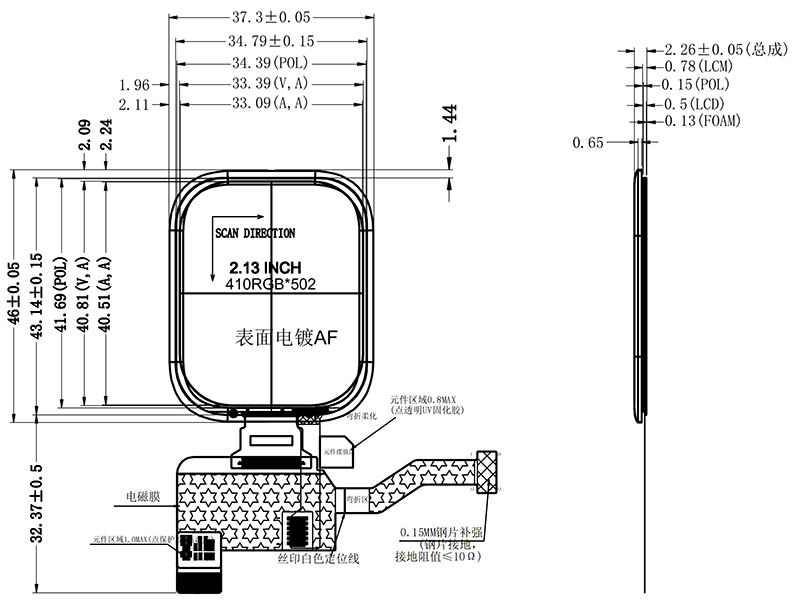

Drawing

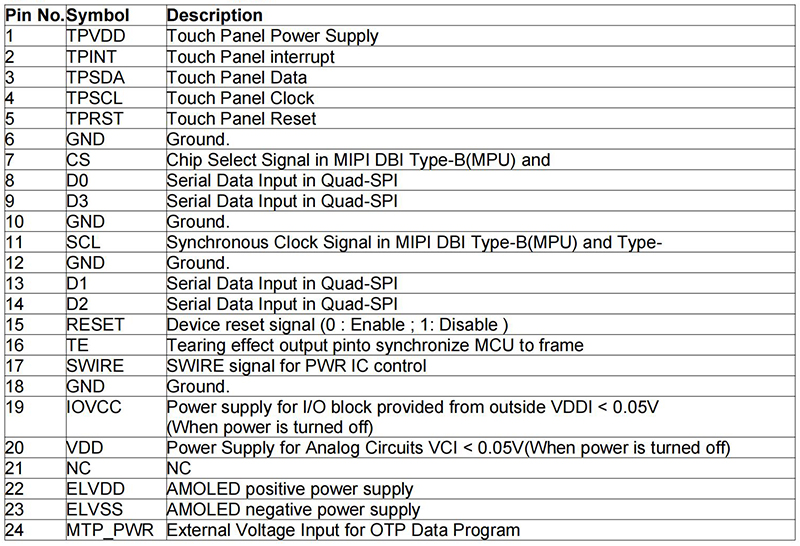

Pin Description
Customization
