Product Parameters
5 Inch 720*1280 MIPI DSI TFT LCD Module Screen 5inch 720P ST7703 30Pin LCD TFT Display Touchscreen Touch Panel Optional
| Display Type | TFT LCD Display |
| Model No. | TT500TFN31A |
| Display Size | 5.0 inch |
| Resolution | 720*1280 |
| Driver IC | ST7703 |
| Interface | MIPI 4 Lanes |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 300cd/m2 |
| Outline Dimension | 66.40*120.05*1.85mm |
| Active Area | 62.06*110.42mm |
| FPC Connecting Method | 0.5mm Pitch 30Pin Plug in FPC |
| Touch Panel | Without,capacitive touch panel optional,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

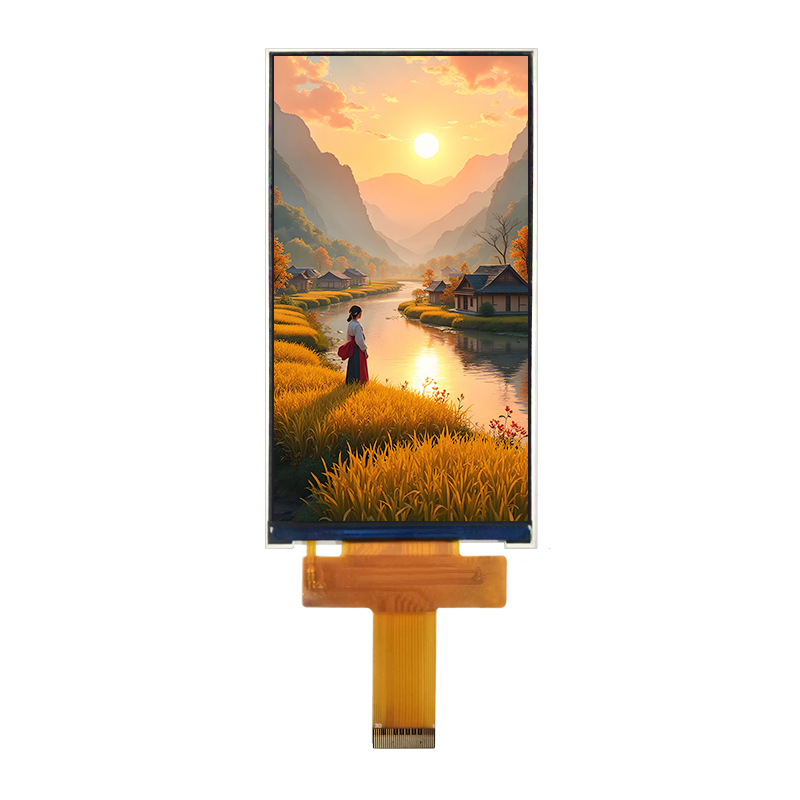

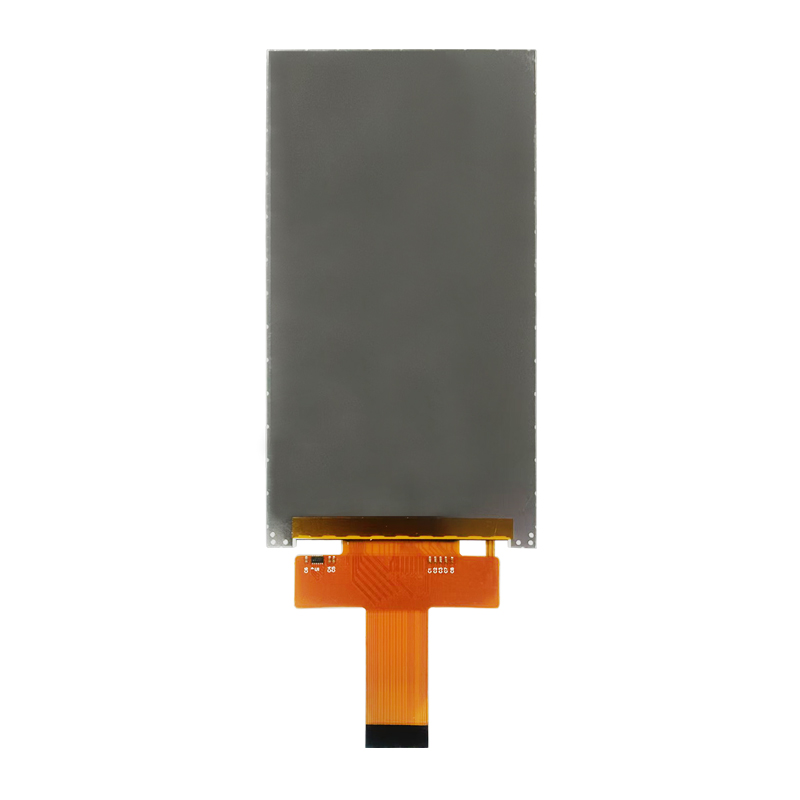

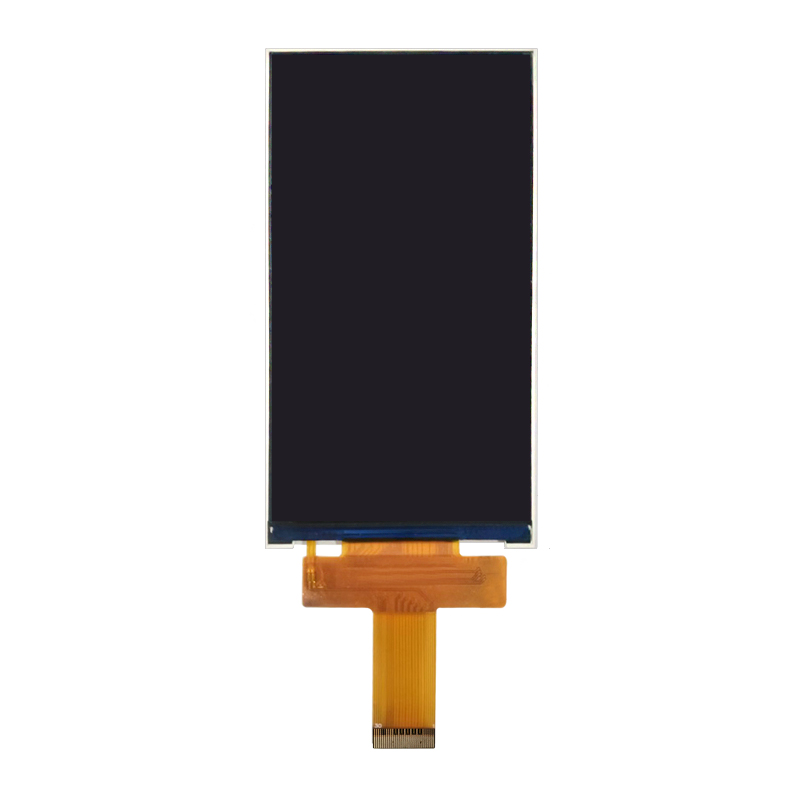

Product Pictures

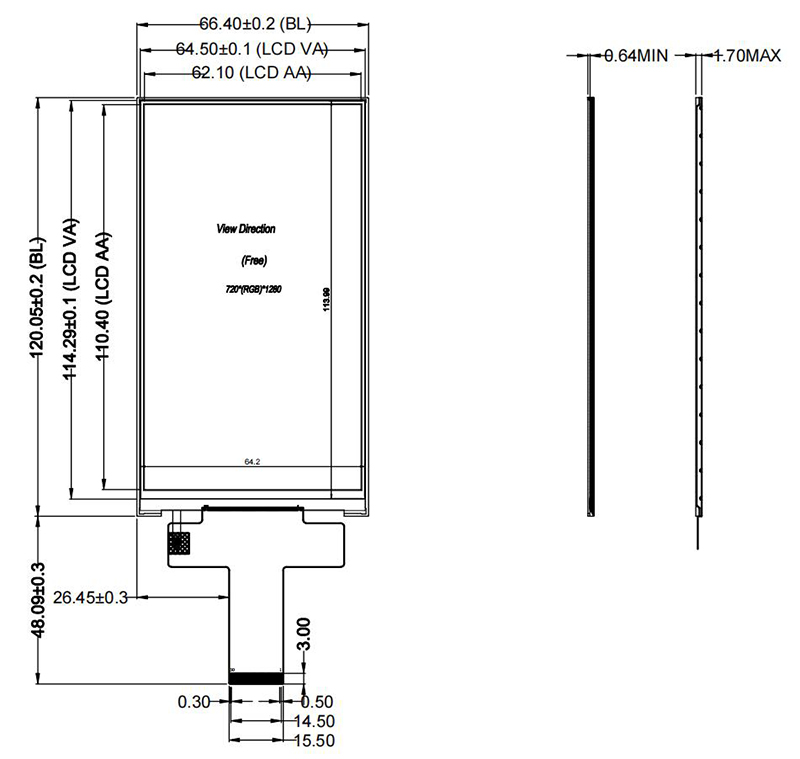

Drawing

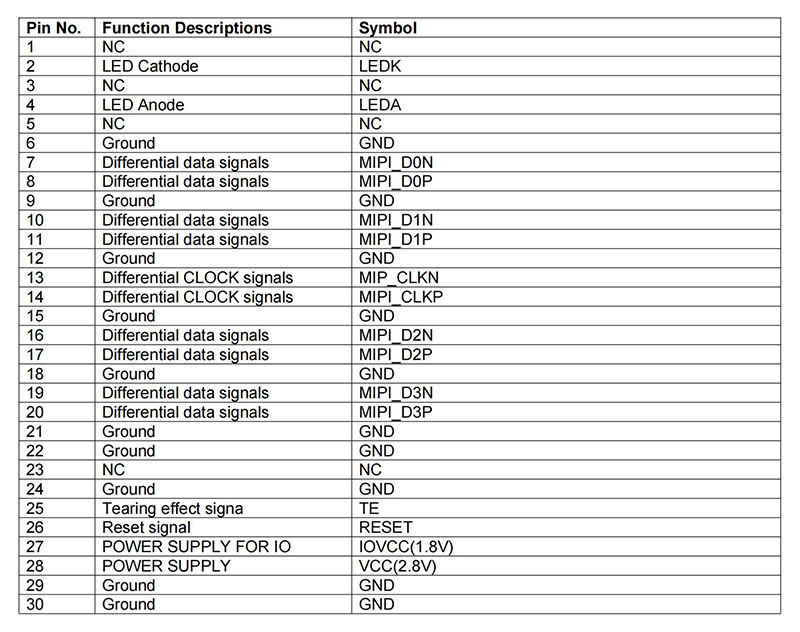

Pin Description
Customization
