Product Parameters
4.16 Inch 1280*960 MIPI DSI Landscape TFT LCD FOG Screen Module for Digital Gamer 3D Printer 4.16inch 30Pin LCD Display Panel
| Display Type | TFT LCD Display |
| Model No. | TT416TFN01A |
| Display Size | 4.16 inch |
| Resolution | 1280*960 |
| Driver IC | GH7005-01 |
| Interface | MIPI DSI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 500cd/m2 |
| Outline Dimension | 87.78*71.76*2.75mm |
| Active Area | 84.48*63.36mm |
| FPC Connecting Method | 30Pin plug in FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

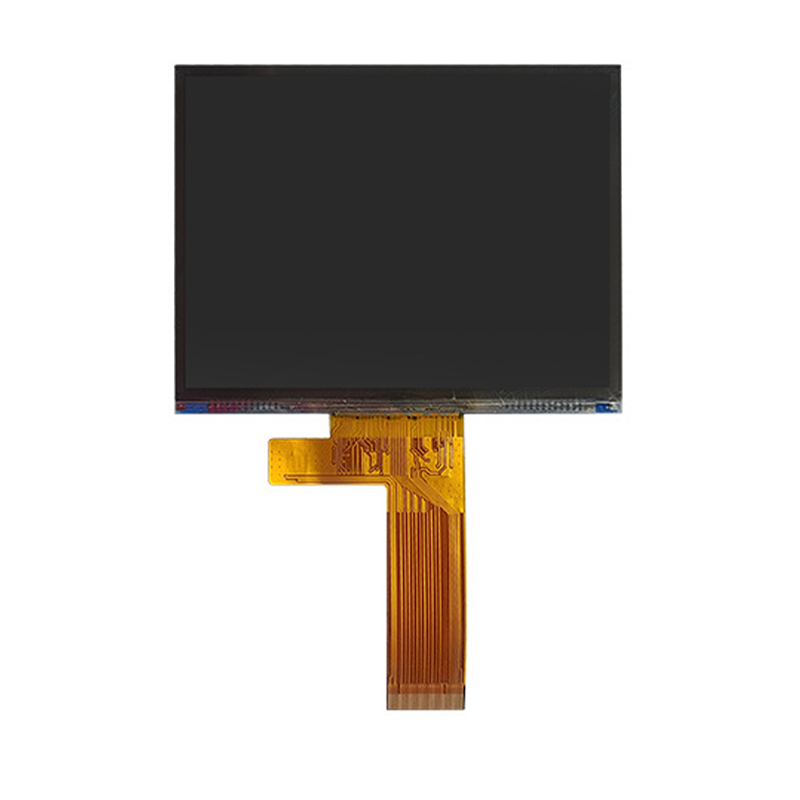

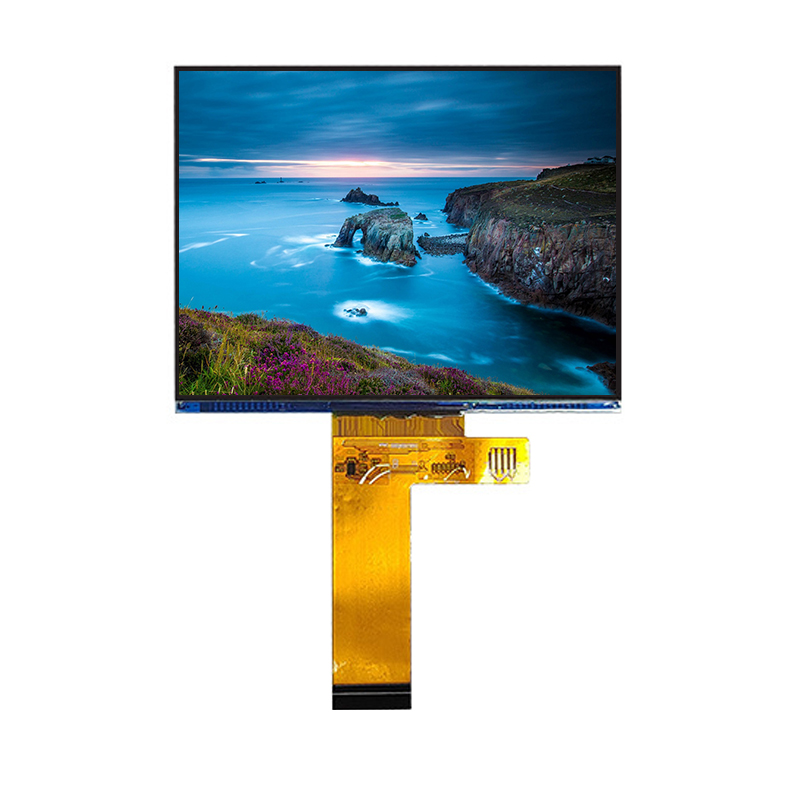

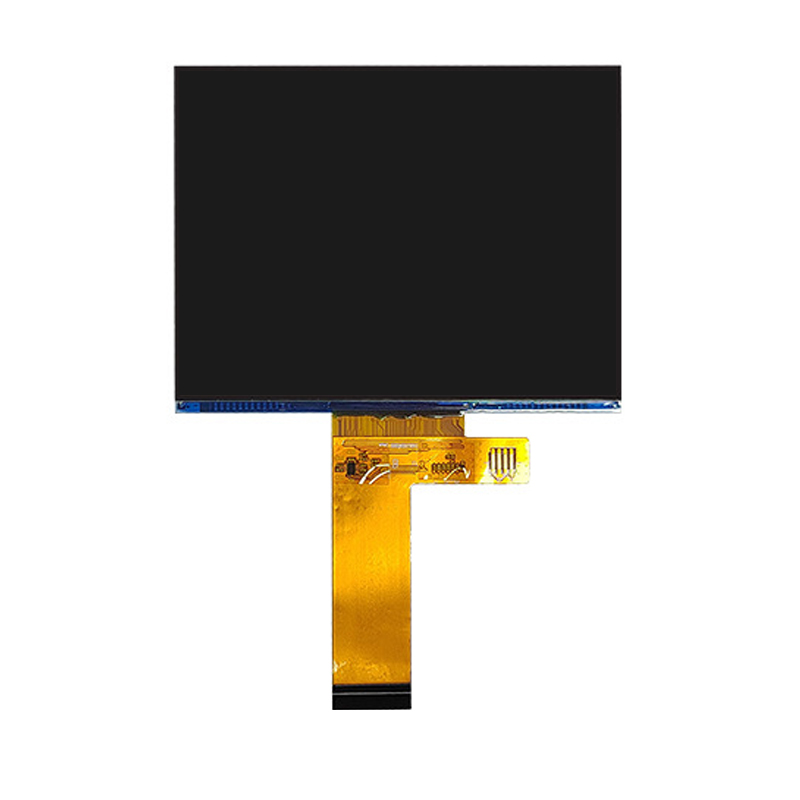

Product Pictures

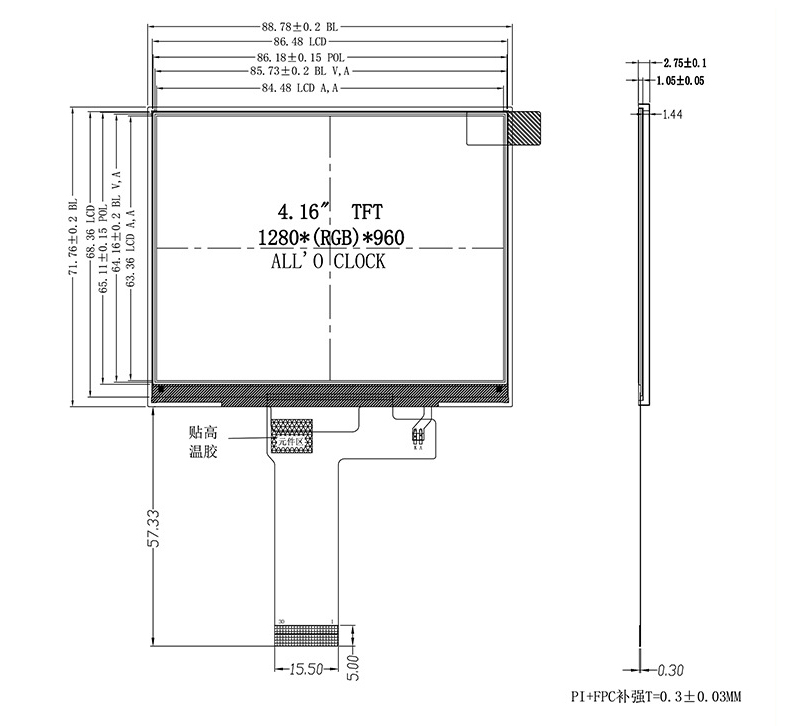

Drawing

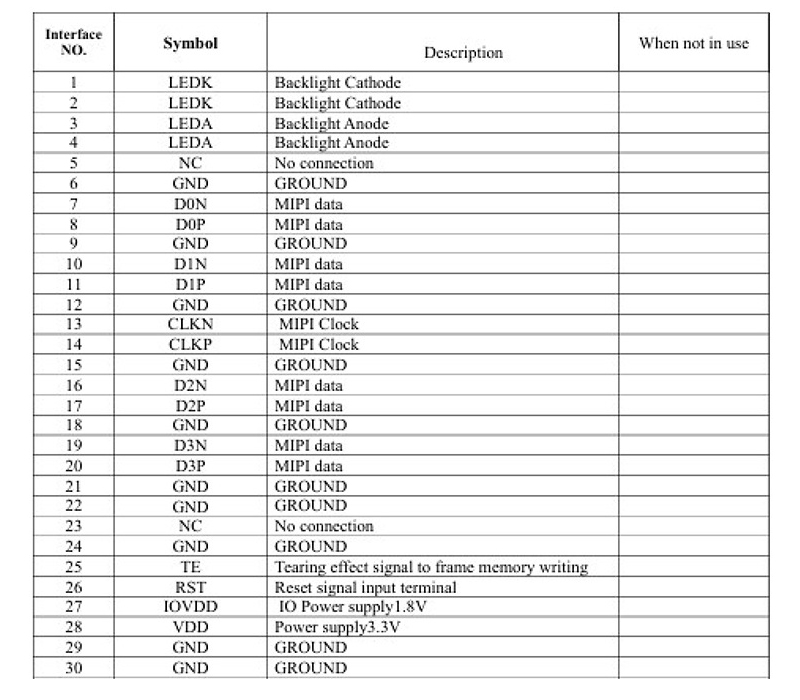

Pin Description
Customization
