Product Parameters
8 Inch 800*600 4:3 TFT LCD Display RGB Interface 8inch 50Pin LCD Screen TFT Module Customize Touch Panel Touchscreen
| Display Type | TFT LCD Display |
| Model No. | TT800TFN50A |
| Display Size | 8.0 inch |
| Resolution | 800*600 |
| Driver IC | - |
| Interface | RGB |
| Viewing Angle | TN(60/60/60/50) |
| Luminance | 250cd/m2 |
| Outline Dimension | 183*141*3.4mm |
| Active Area | 162.05*121.54mm |
| FPC Connecting Method | 50 Pin plug in FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

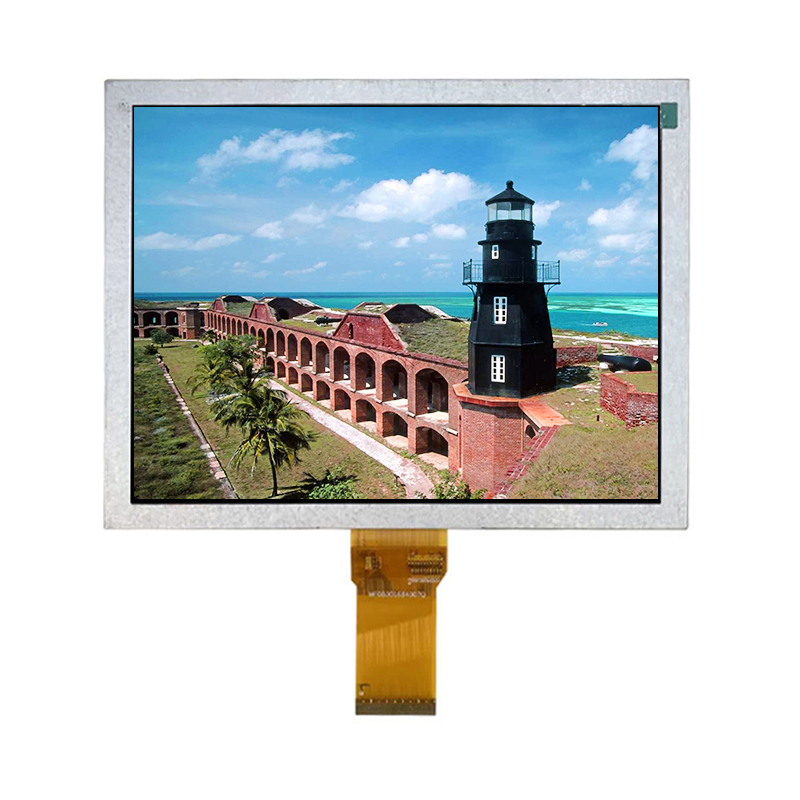

Product Pictures

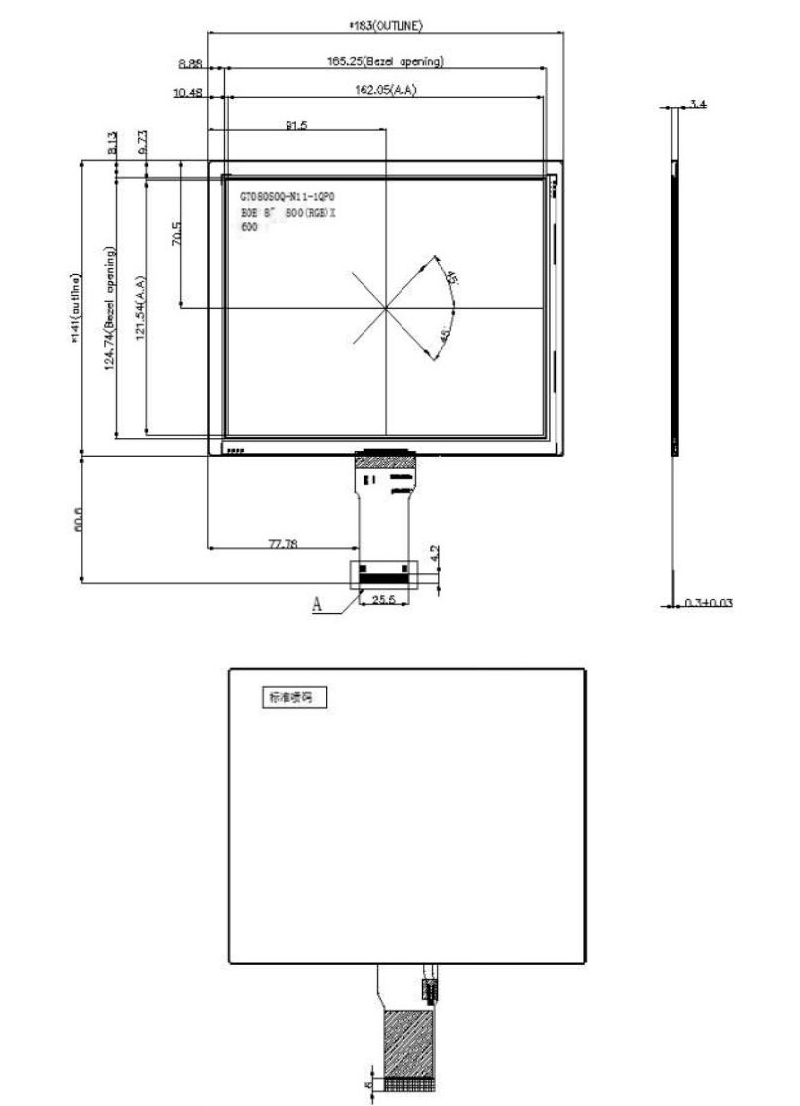

Drawing

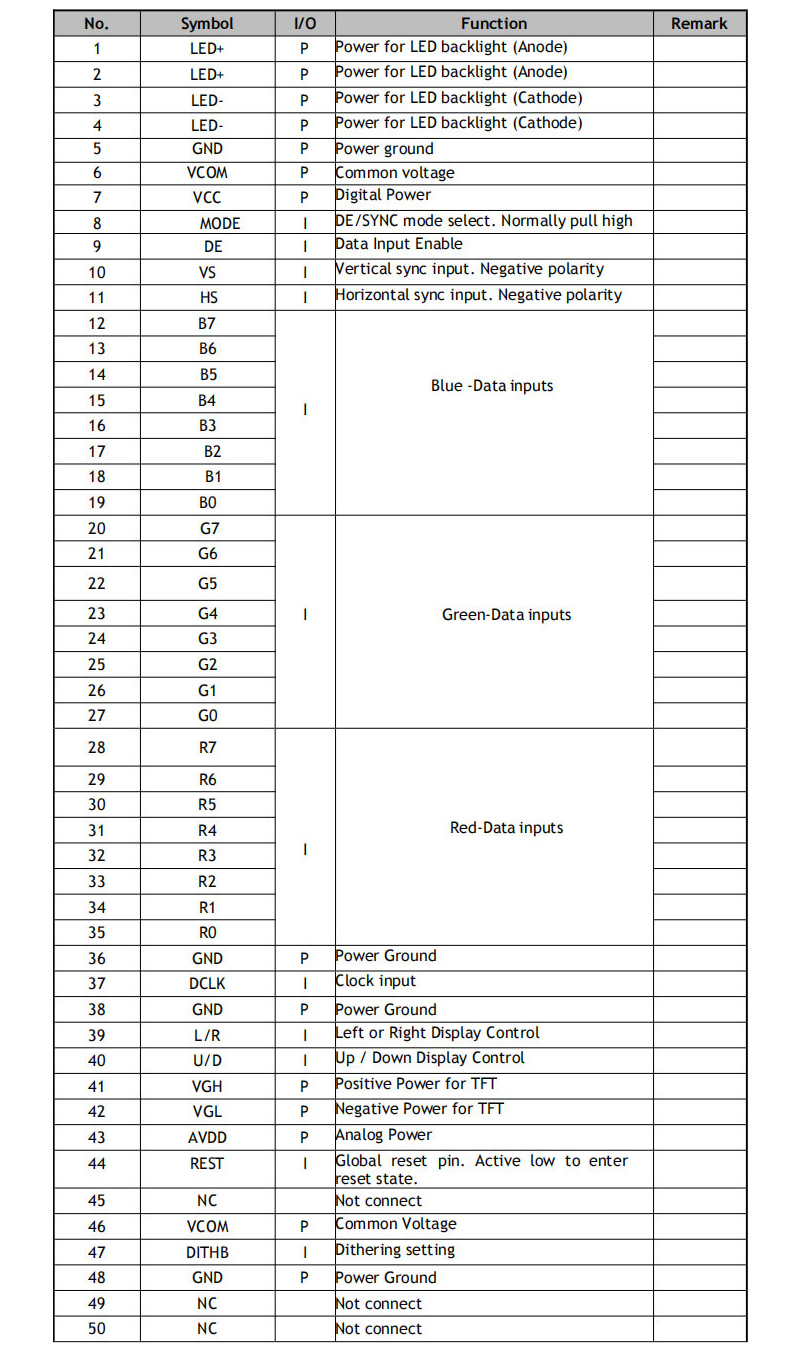

Pin Description
Customization
