Product Parameters
7 Inch 1080*1080 FHD 1080P Round TFT LCD Display Module 7inch 40Pin FL5893 Circular LCD Screen Customize CTP Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT700TFN70A |
| Display Size | 7 inch |
| Resolution | 1080*1080 |
| Driver IC | FL5893 |
| Interface | SPI+LVDS |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 500cd/m2 |
| Outline Dimension | 186.15*247.7*4.8mm |
| Active Area | 177.552*177.552mm |
| FPC Connecting Method | 40Pin Plug in FPC |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

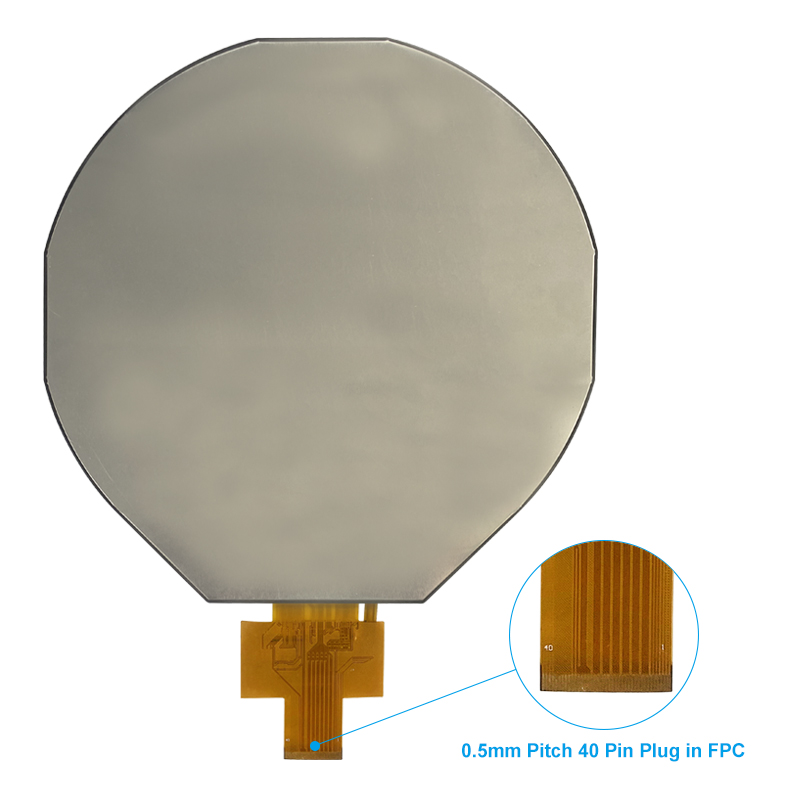

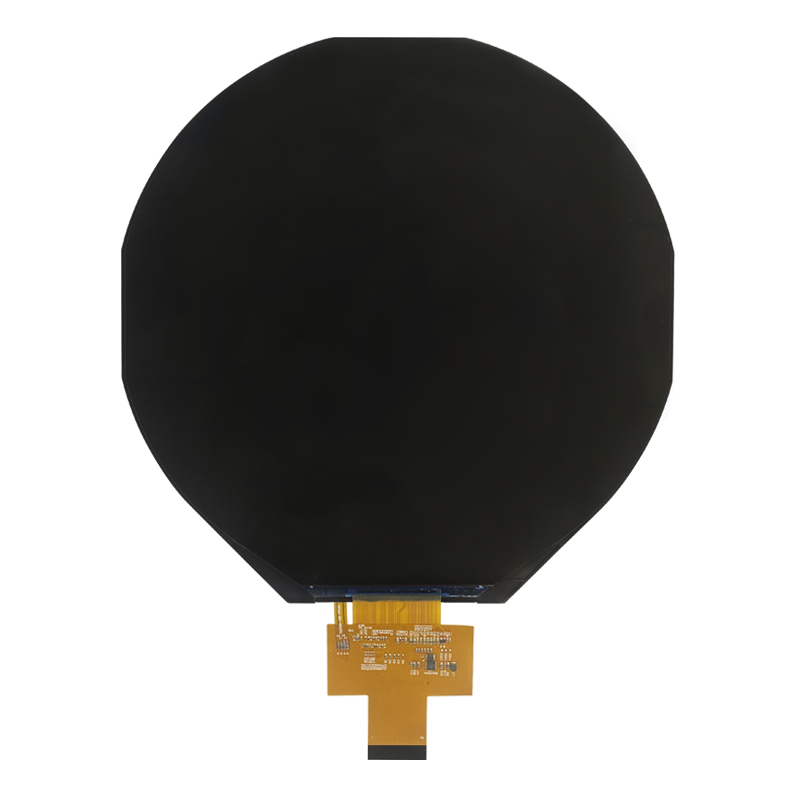

Product Pictures

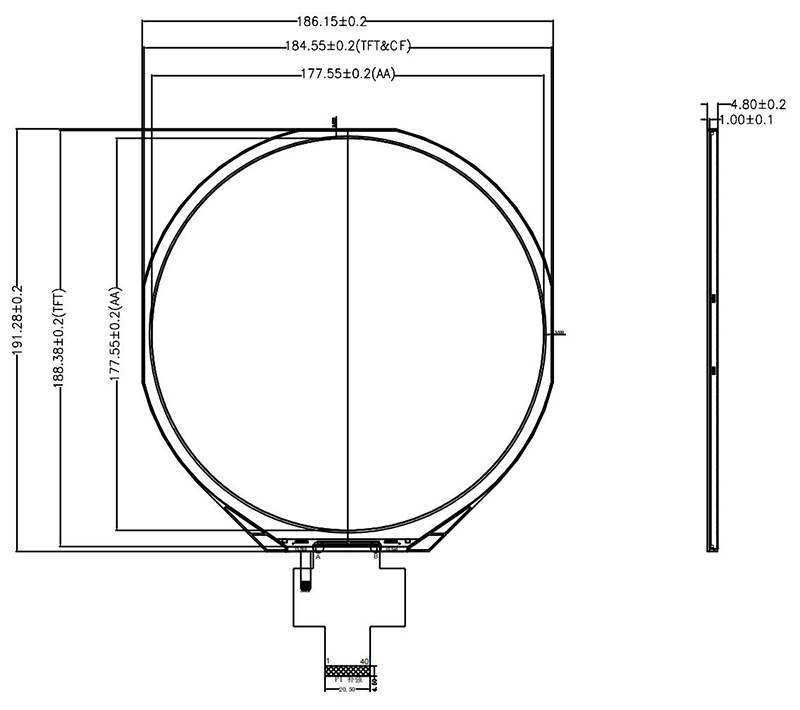

Drawing

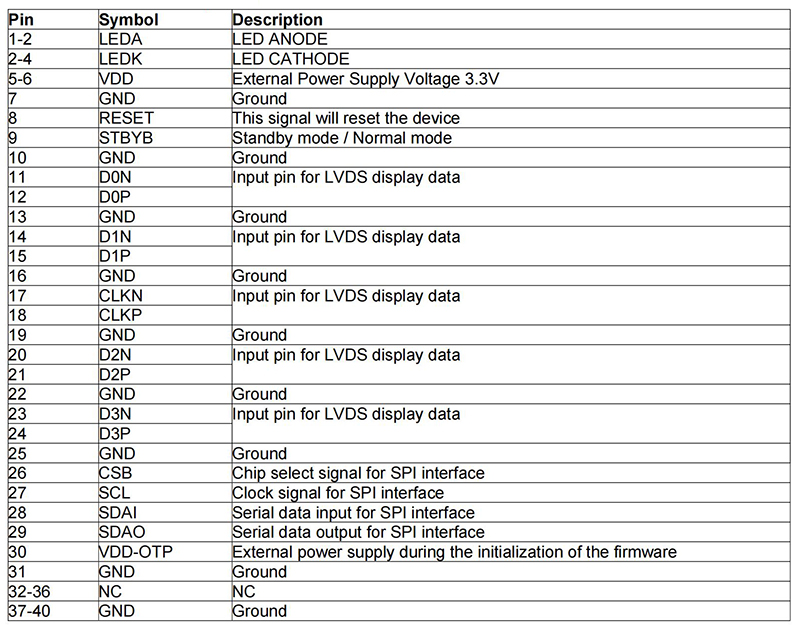

Pin Description
Customization
