Product Parameters
1080P FHD 5.5 Inch 1080*1920 MIPI DSI TFT LCD Display Module with Incell Touchscreen 5.5inch 40Pin FT8736 LCD Screen Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT550TFC24B |
| Display Size | 5.5 inch |
| Resolution | 1080*1920 |
| Driver IC | FT8736 |
| Interface | MIPI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 500cd/m2(Default,can customize 800/1000/2000cd/m2) |
| Outline Dimension | 70.84*128.2*1.52mm |
| Active Area | 68.04*120.96mm |
| FPC Connecting Method | 40 Pin Plug in FPC |
| Touch Panel | With incell touch,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

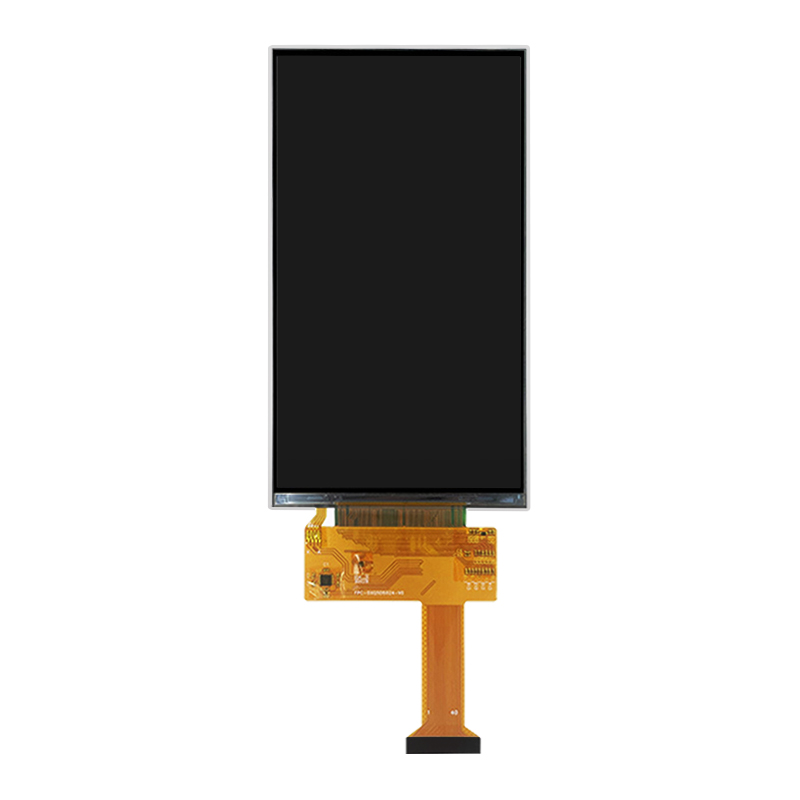

Product Pictures

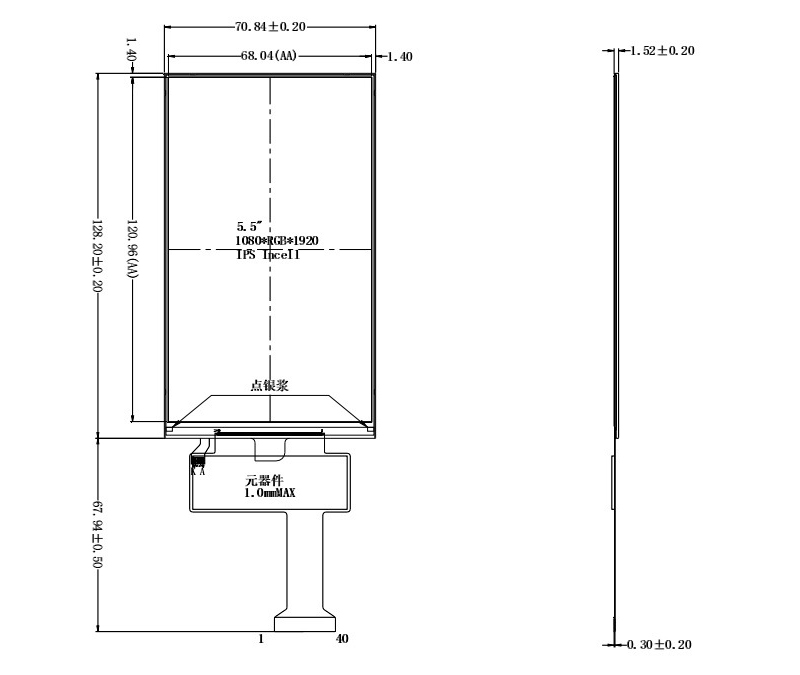

Drawing

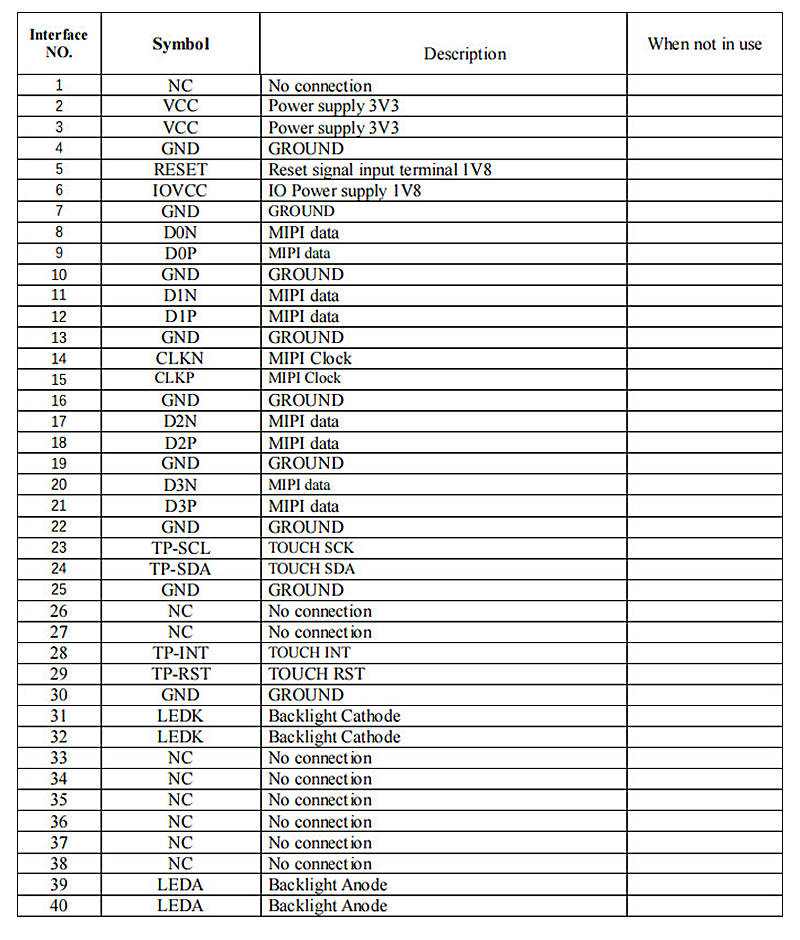

Pin Description
Customization
