Product Parameters
5.5 Inch 2160*3840 UHD 4K MIPI TFT LCD Display Module for 3D Printer Handheld Game PSP 5.5inch NT35950 60Pin LCD Screen Panel
| Display Type | TFT LCD Display |
| Model No. | LS055D1SX05(G) |
| Display Size | 5.5 inch |
| Resolution | 2160*3840 |
| Driver IC | NT35950 with 1/3 Ram |
| Interface | MIPI |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 530cd/m2 |
| Outline Dimension | 69.84*128.76*1.24mm |
| Active Area | 68.04*120.96mm |
| FPC Connecting Method | 60 Pin board to board connector |
| Touch Panel | Without touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

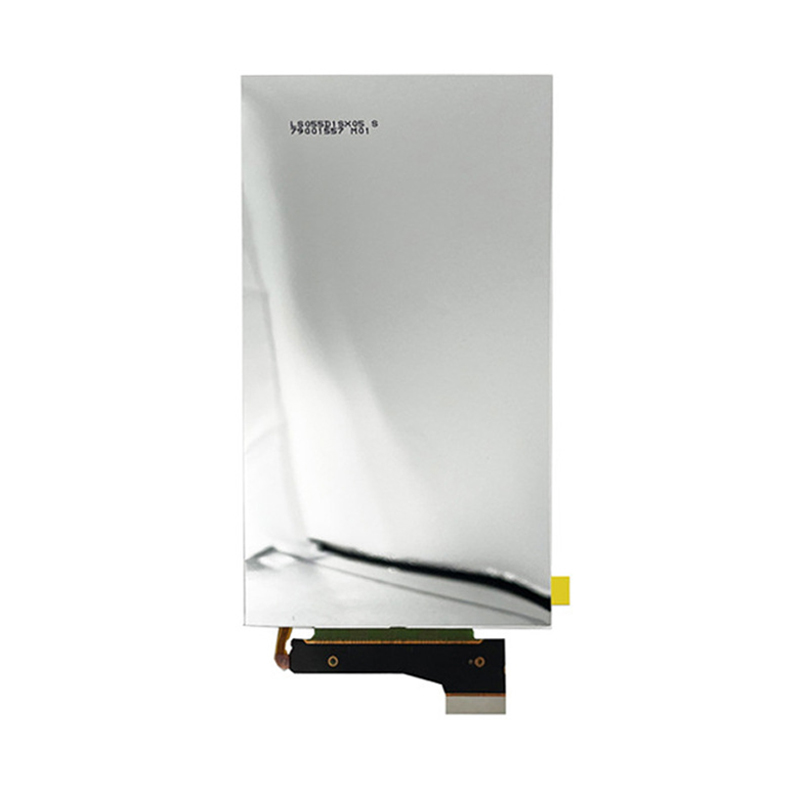

Product Pictures
Drawing
Pin Description
Customization
