Product Parameters
NEW 4.45 Inch 480*854 RGB IPS TFT LCD Module Screen 4.5inch 40Pin ST7701S LCD TFT Module Factory Custom Capacitive Touch Panel
| Display Type | TFT LCD Display |
| Model No. | TT445TFN40A |
| Display Size | 4.45 inch |
| Resolution | 480*854 |
| Interface | RGB |
| Viewing Angle | IPS Full Viewing Angle |
| Driver IC | ST7701S |
| Luminance | 350cd/m2 |
| Outline Dimension | 60.00*109.00*2.005mm |
| Active Area | 55.44*98.64mm |
| FPC Connecting Method | 40 Pin Plug in FPC |
| Touch Panel | Without touch,touch panel optional,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

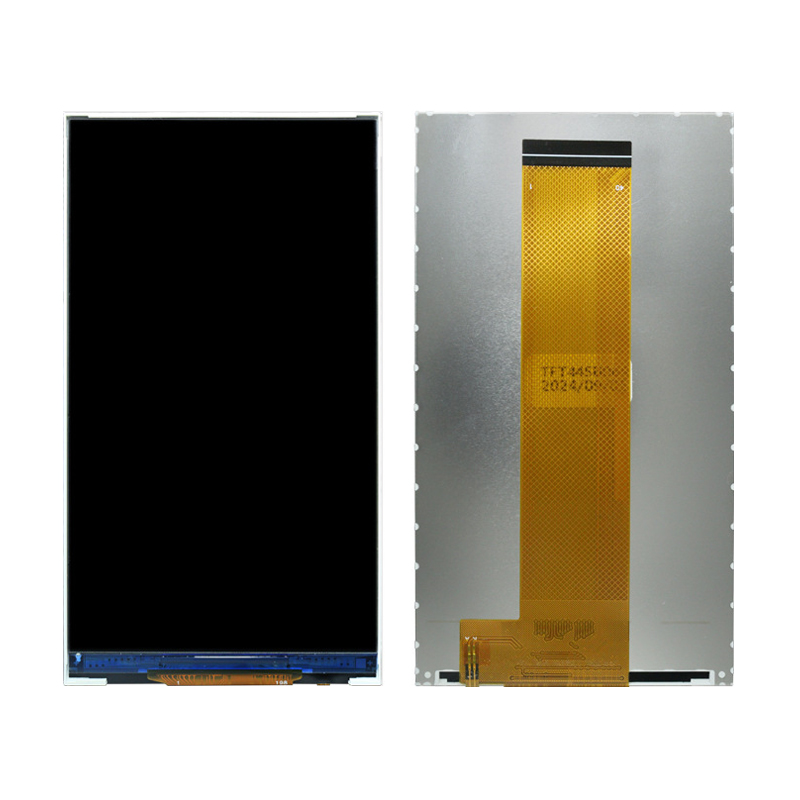

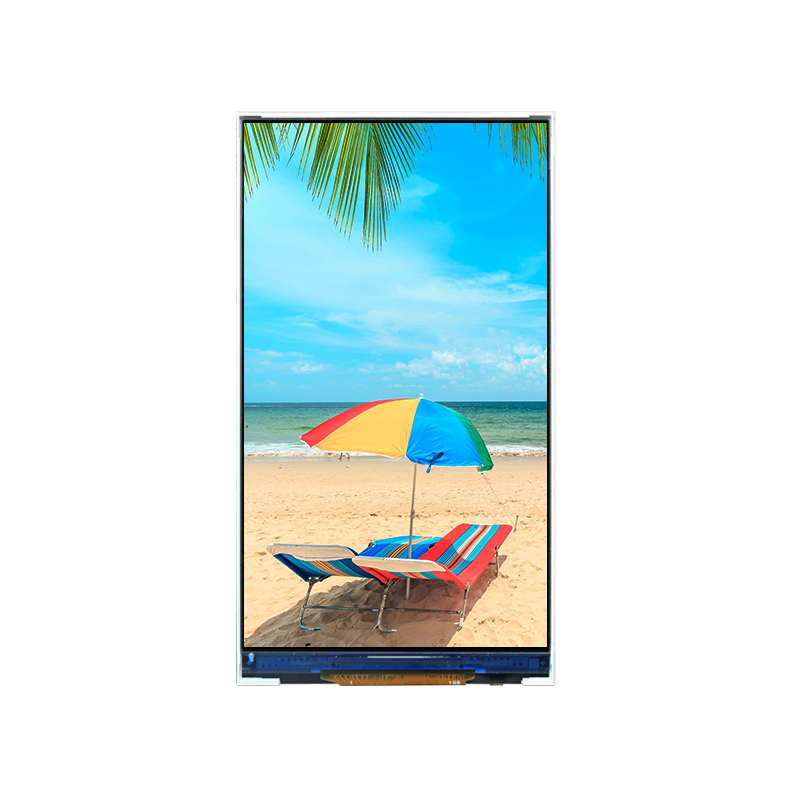

Product Pictures

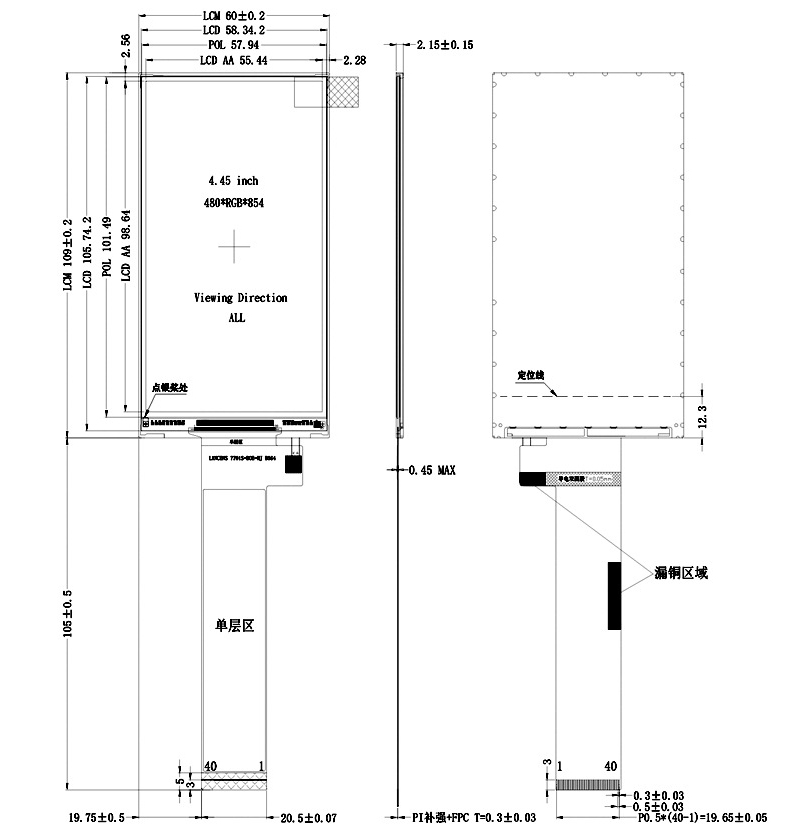

Drawing

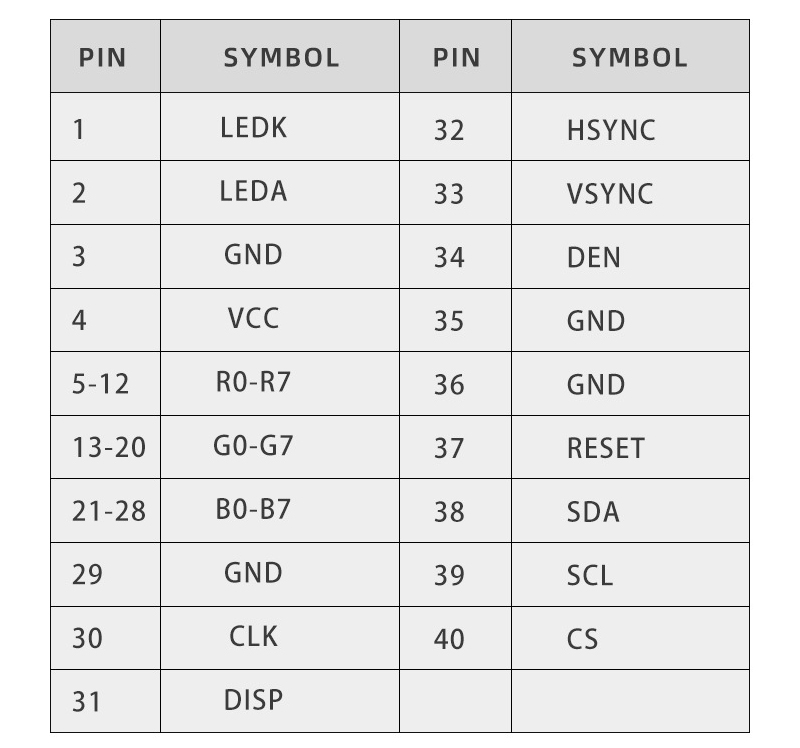

Pin Description
Customization
